Outputs

The tables below list the RenderVar source names available for camera sensors, grouped by render mode. Use the sourceName value as the sourceName attribute on a RenderVar prim. Shapes are channel-last DLPack tensor shapes. Click any example image to enlarge it. Buffer examples are decoded illustrations, not raw image outputs.

Note

The example images for non-color outputs have been remapped for easier visualization and do not represent raw output values. All output example images in the table were generated from the semantic-segmentation example.

Real-Time Path-Tracing and Minimal use 50 warmup frames; Path Tracing uses one frame at 128 samples per pixel. The robots then move for a separate motion capture, whose hue shows direction and brightness shows displacement (20 pixels reaches full brightness).

Bounding-box overlays show only robot geometry: raw box outputs show individual parts, while semantic box outputs show one aggregate box per top-level robot. Colors distinguish robots. 3D corners are transformed to world space and projected using CameraParams.

Occlusion colors loose part boxes from green (visible) to red (occluded); invalid ratios are omitted.

ID-map examples pair an annotated scene with decoded metadata; delta examples use their first-frame entries.

Real-Time Path-Tracing

sourceName	Format	Type	Shape	Example

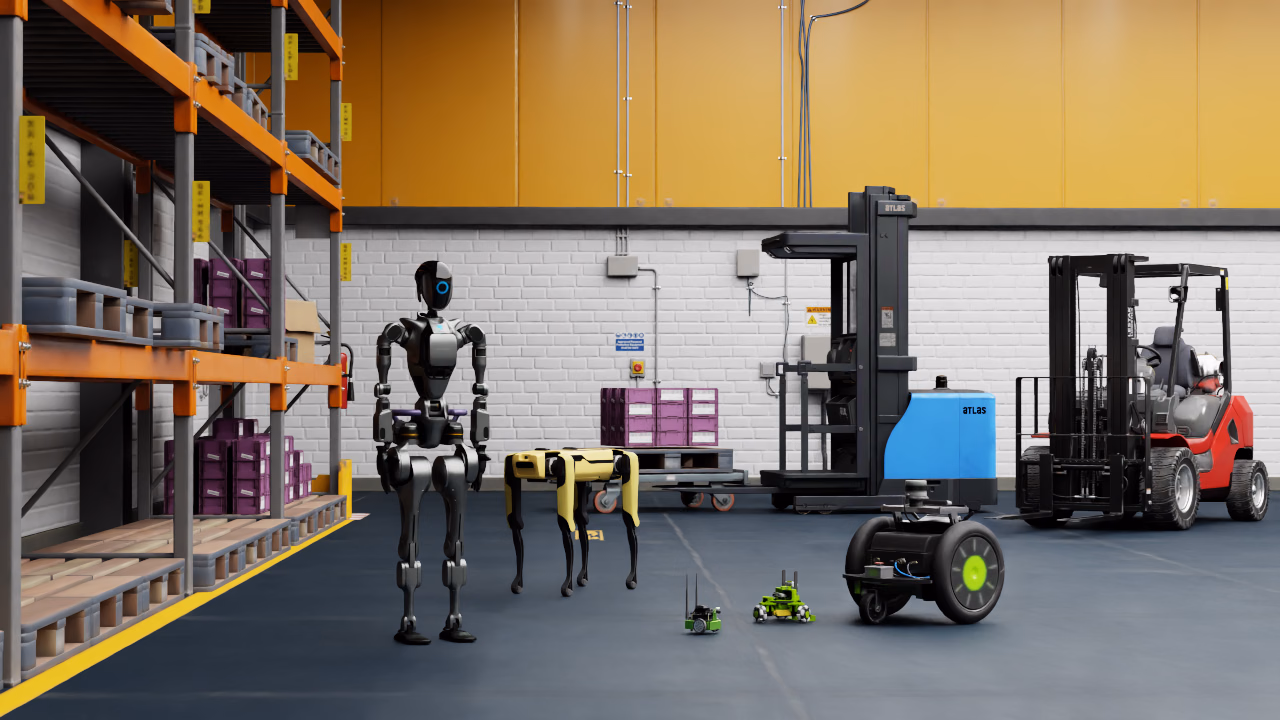

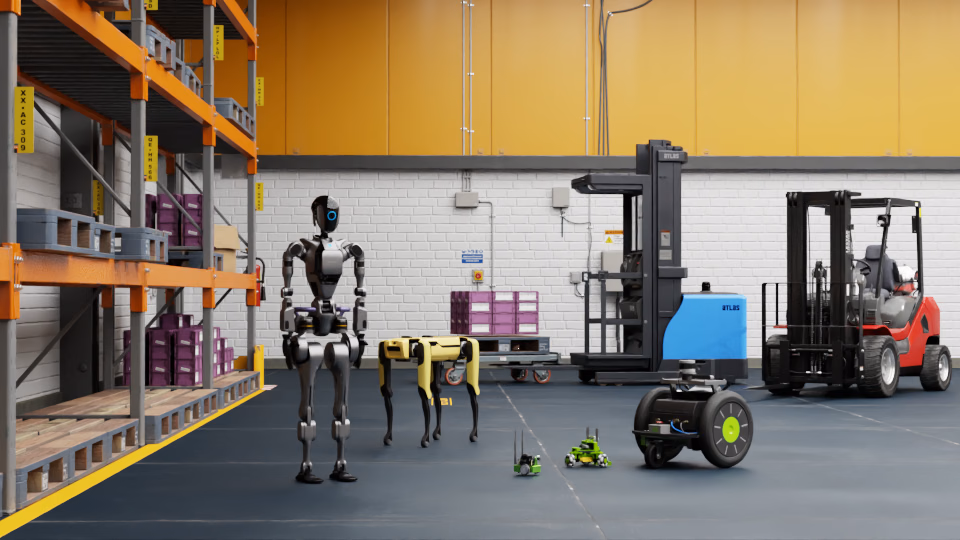

LdrColor	RGBA	uint8	(H, W, 4)
Tone-mapped color in sRGB space. Standard final image output suitable for display or saving as PNG/JPEG.

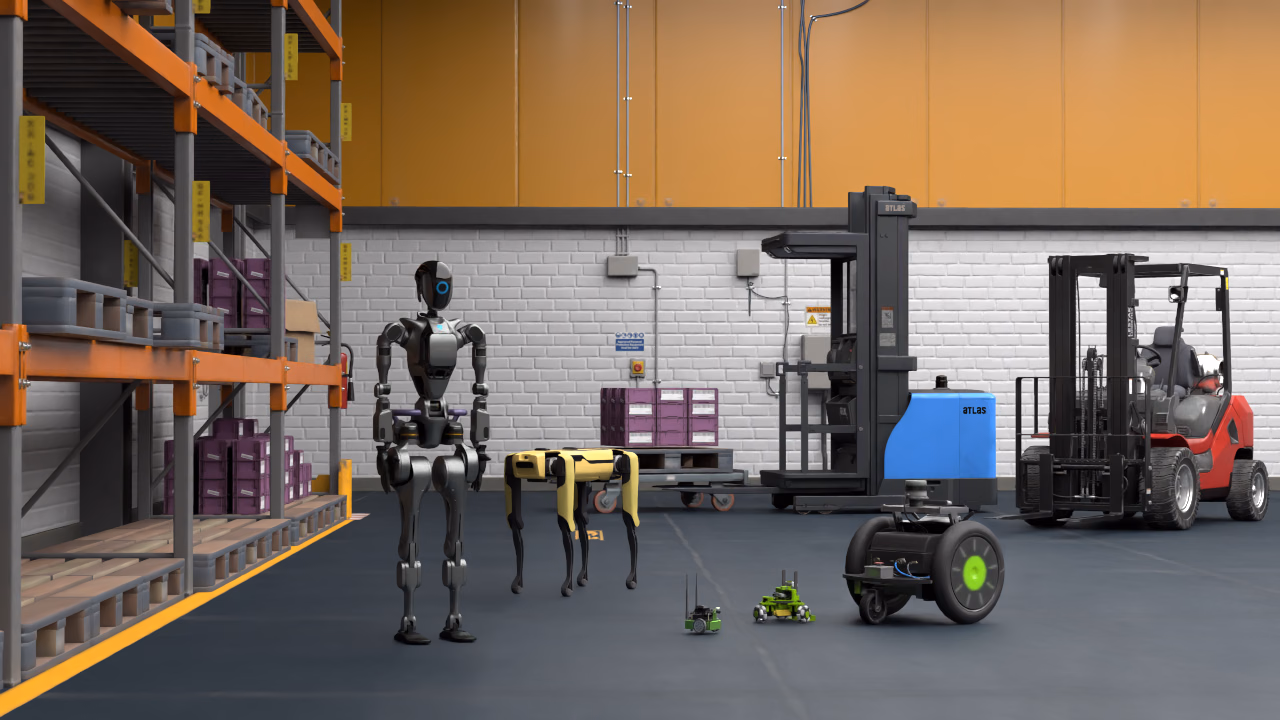

HdrColor	RGBA	float16	(H, W, 4)
Linear-space HDR color preserving full scene luminance. Use for post-processing, compositing, or linear-space workflows.

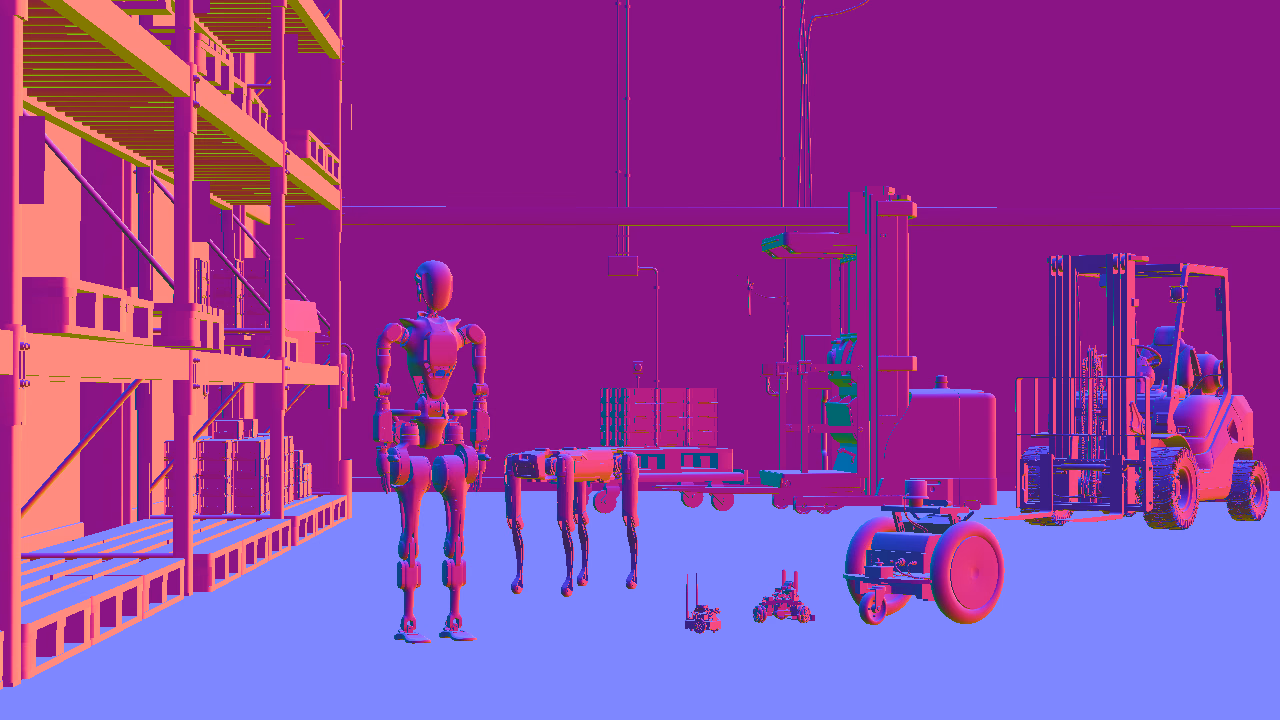

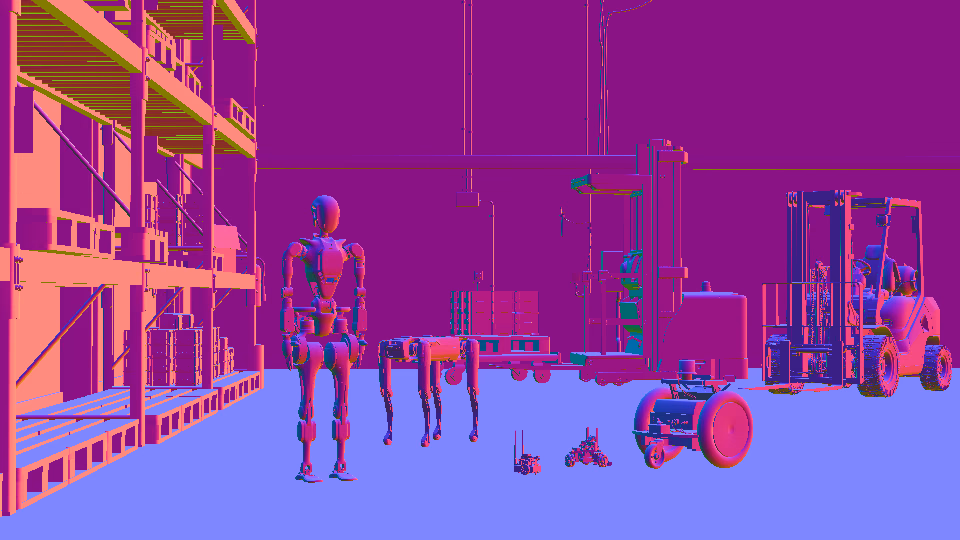

NormalSD	XYZA	float32	(H, W, 4)
World-space surface normals. Python/C decoding.

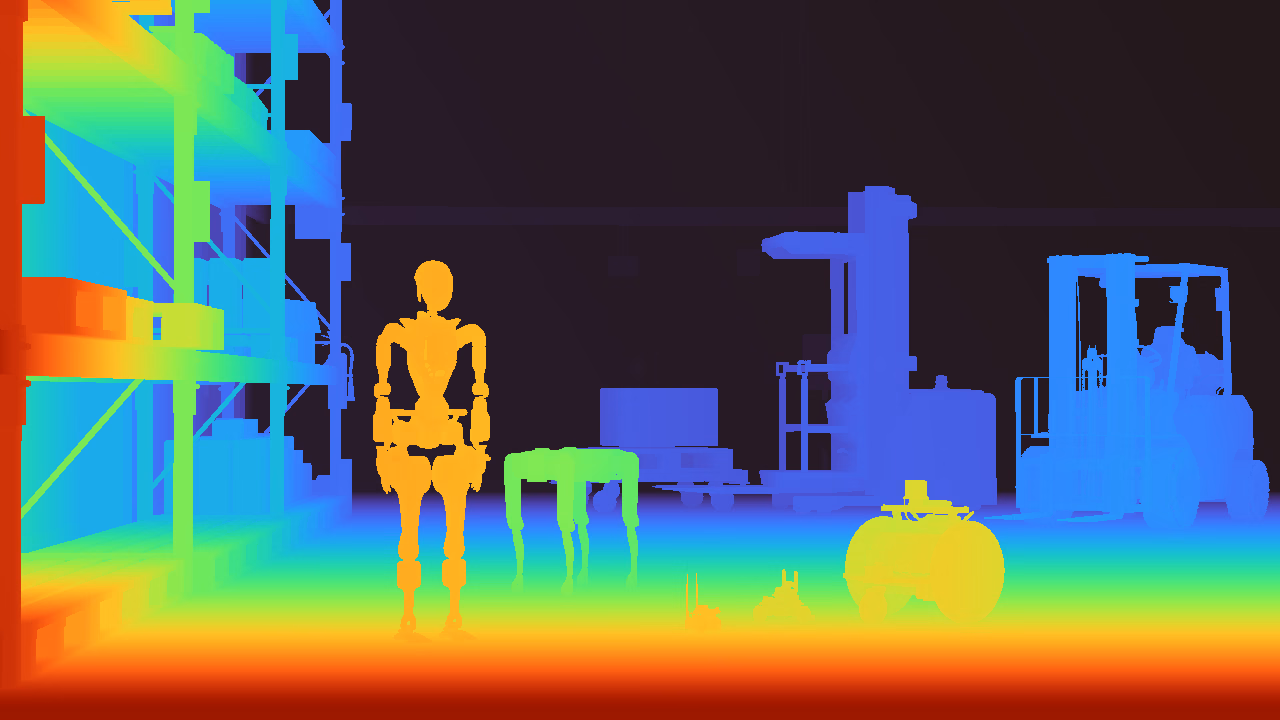

DepthSD	Z	float32	(H, W, 1)
Deprecated. Unitless raster depth mapped from 1 (near clip plane) to 0 (far clip plane). Use DistanceToImagePlaneSD or DistanceToCameraSD instead. Python/C decoding.

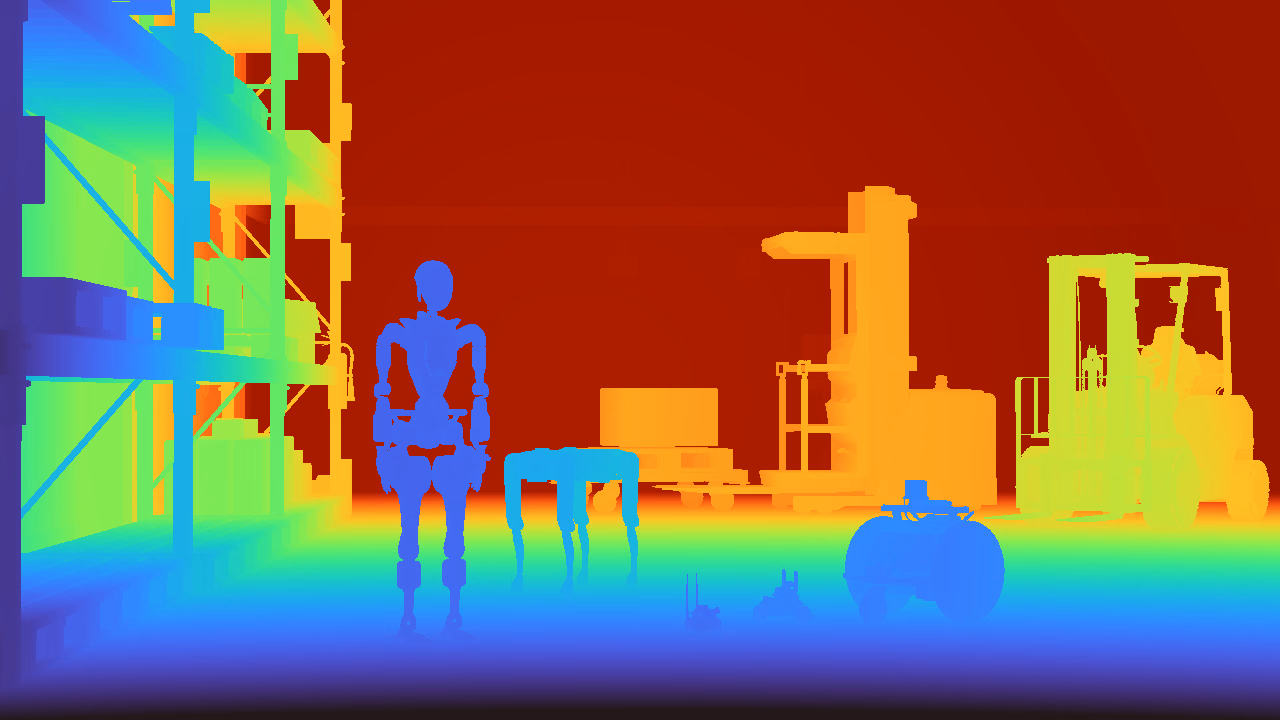

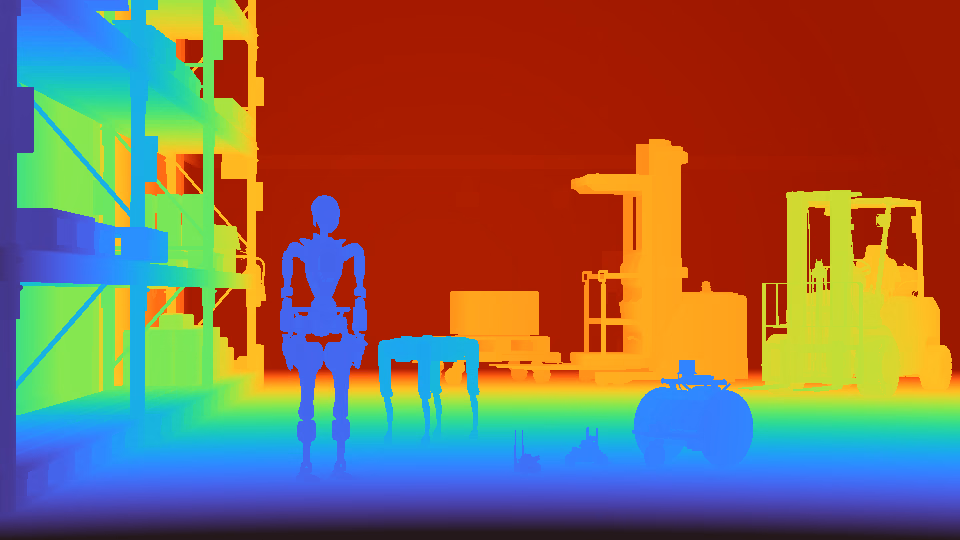

DistanceToCameraSD	Z	float32	(H, W, 1)
Euclidean distance from the camera origin to each surface point, in meters. Python/C decoding.

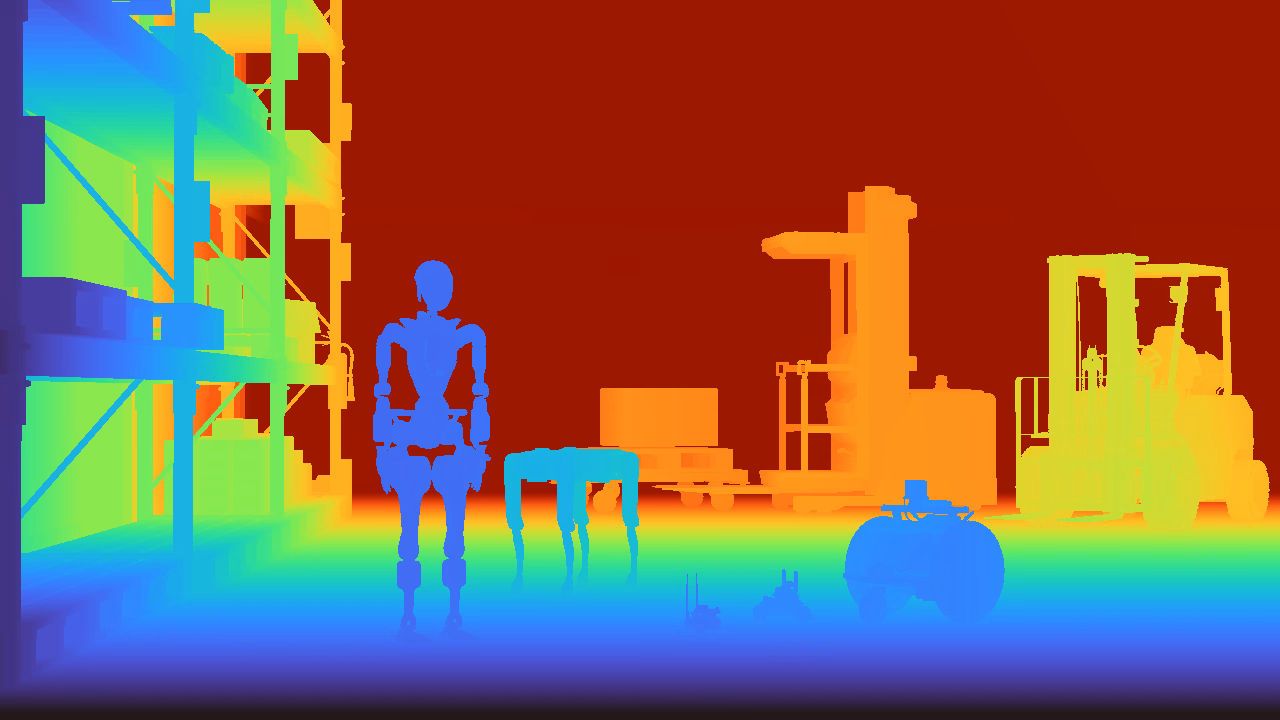

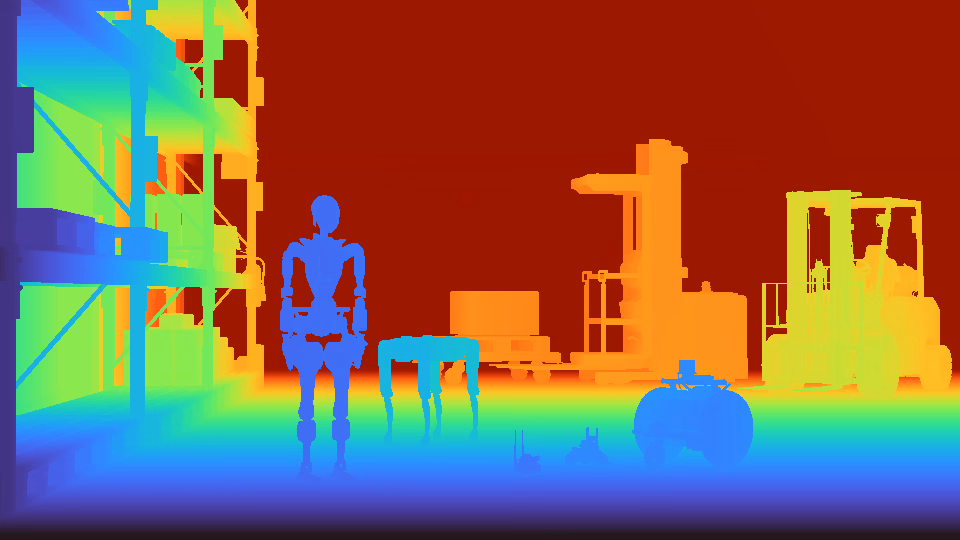

DistanceToImagePlaneSD	Z	float32	(H, W, 1)
Perpendicular distance from the image plane to each surface point, in meters. Python/C decoding.

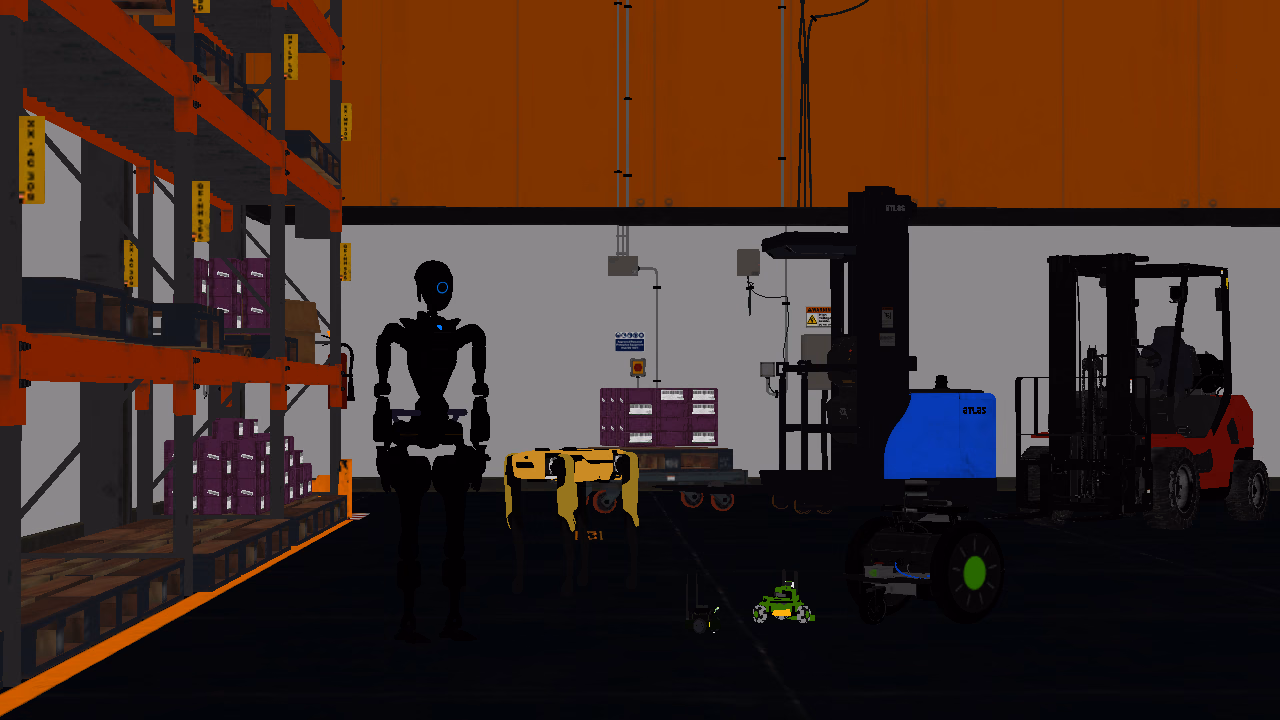

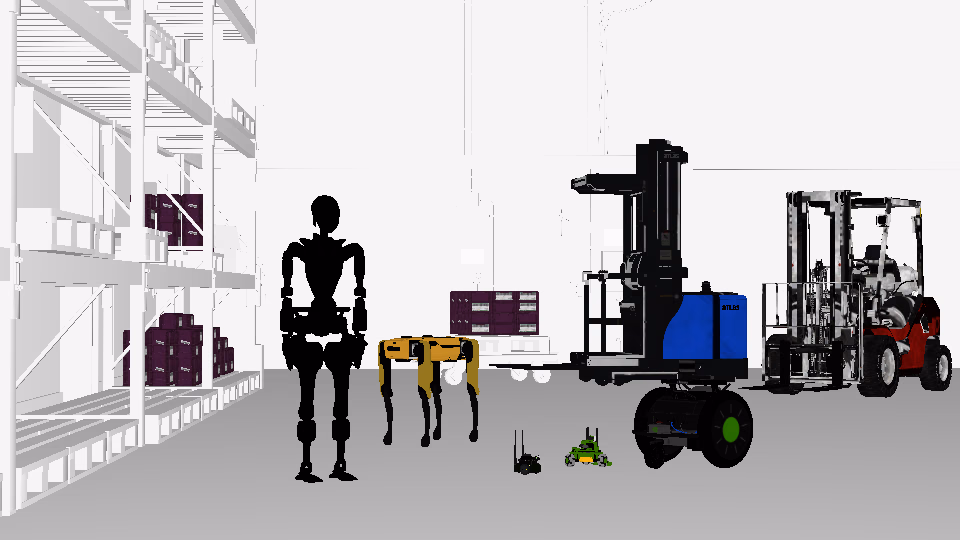

DiffuseAlbedoSD	RGBA	uint8	(H, W, 4)
Diffuse surface albedo (base color without lighting). Python/C decoding.

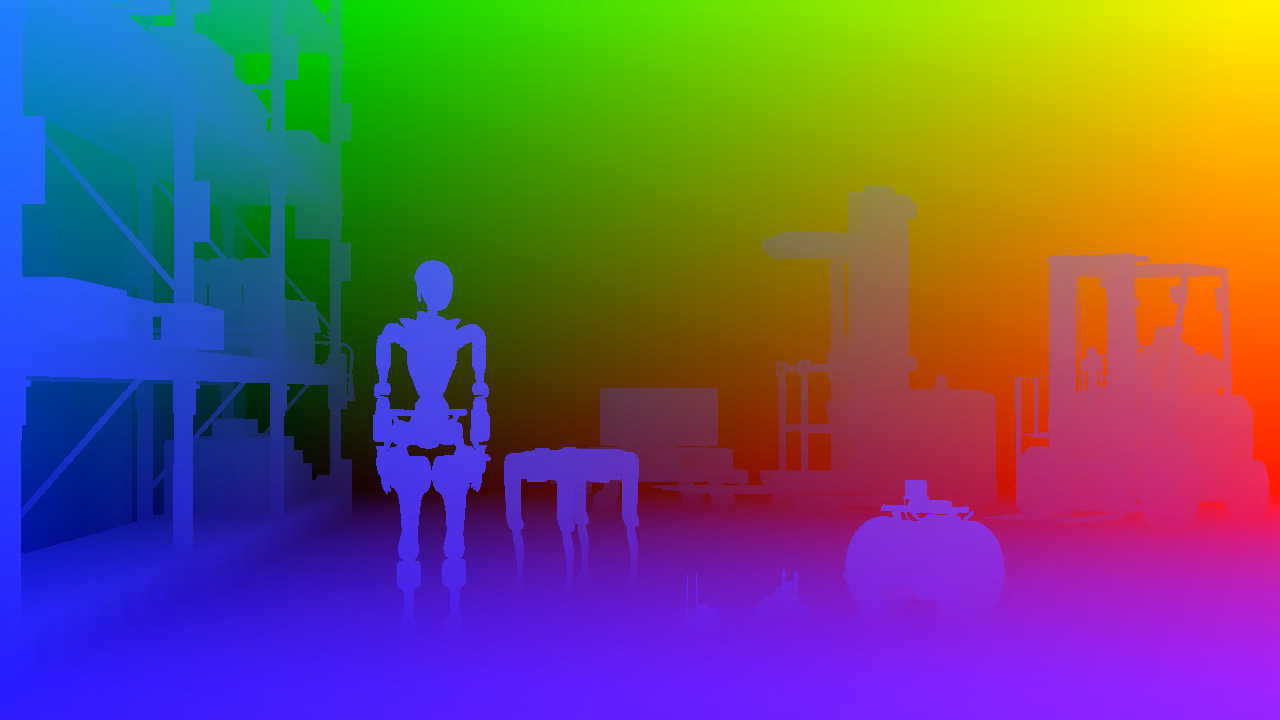

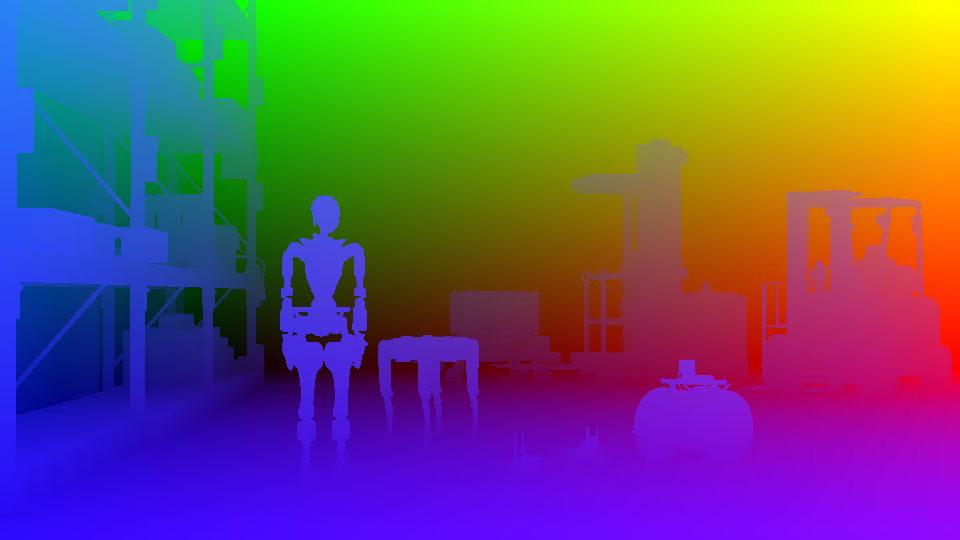

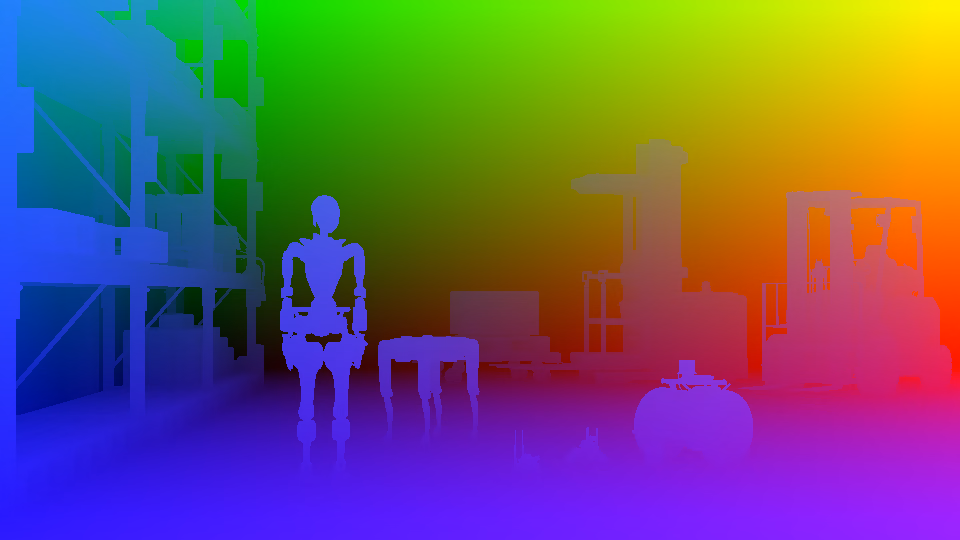

Camera3dPositionSD	XYZA	float32	(H, W, 4)
Camera-space 3D position of each visible surface point, in scene units. Python/C decoding.

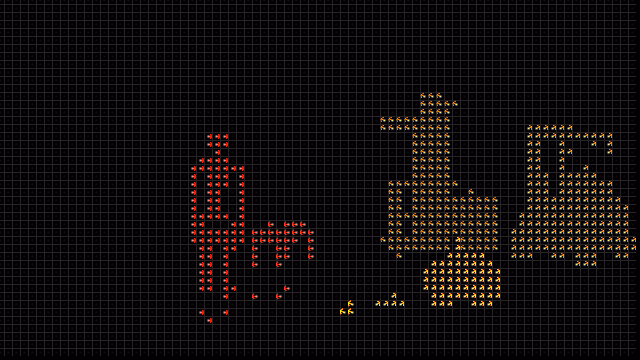

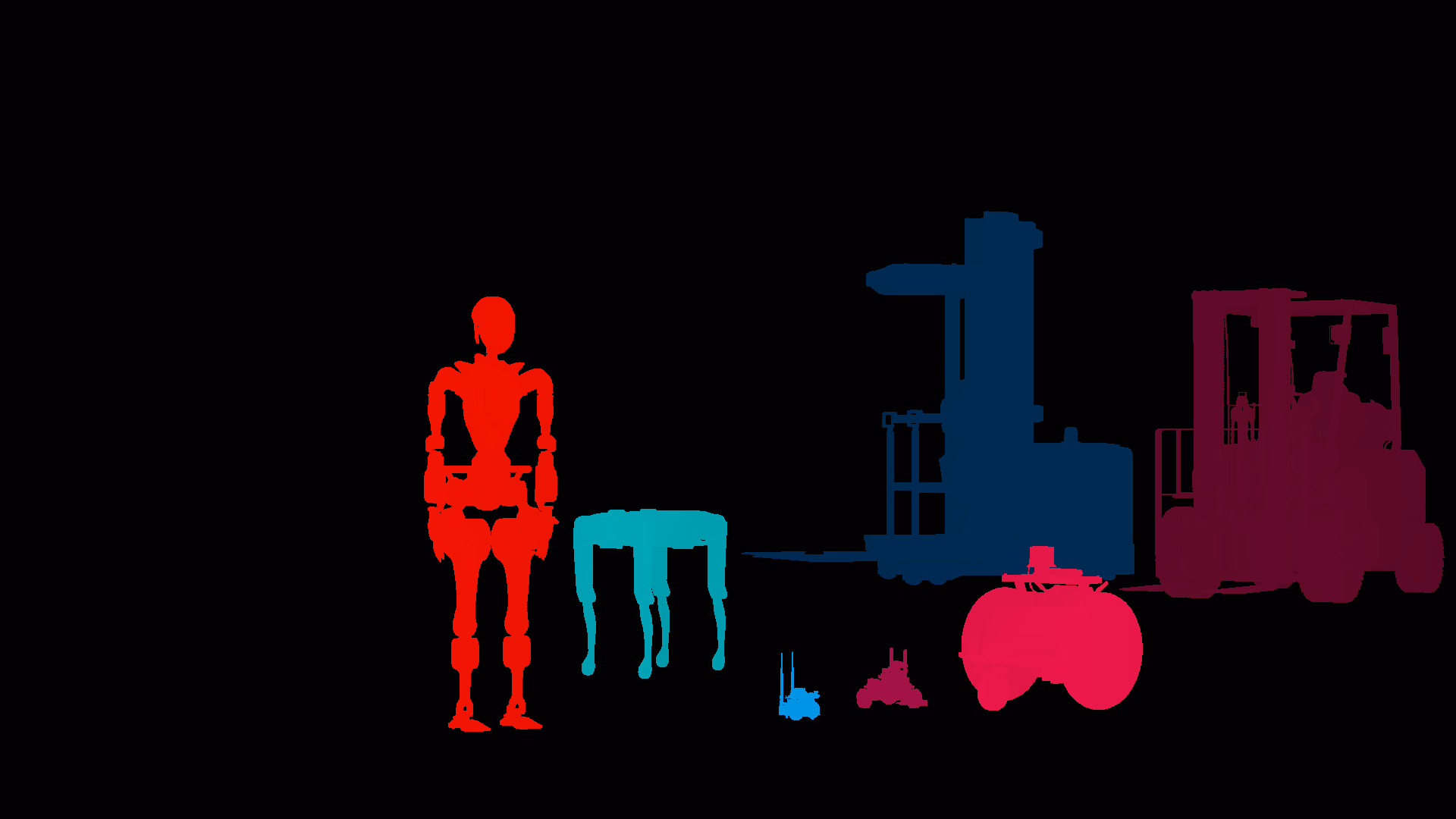

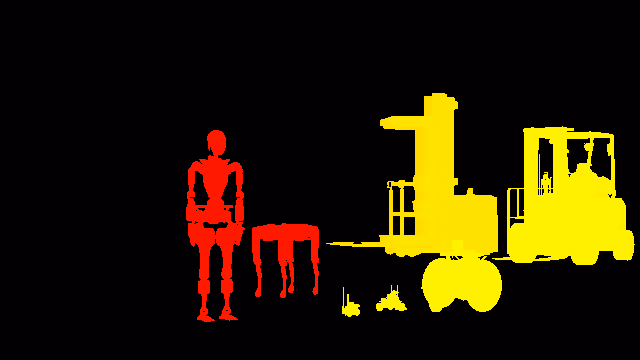

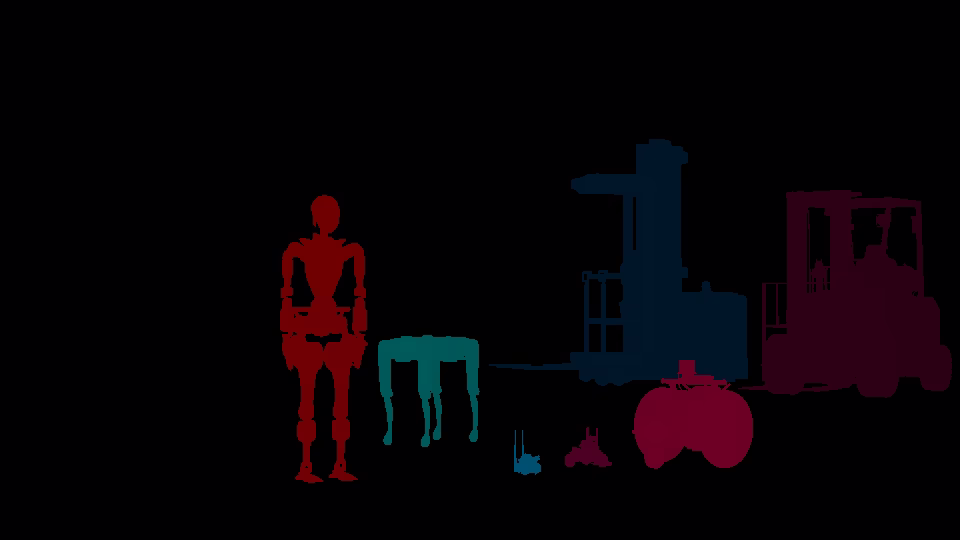

TargetMotionSD	XYZW	float32	(H, W, 4)
Backward screen-space displacement in pixels: add XY to the current pixel position to find its previous-frame position. Z is the previous-frame occlusion flag; W indicates a geometric hit within the occlusion-check range. Invalid correspondences are (-1, -1, -1, -1). Python/C decoding.

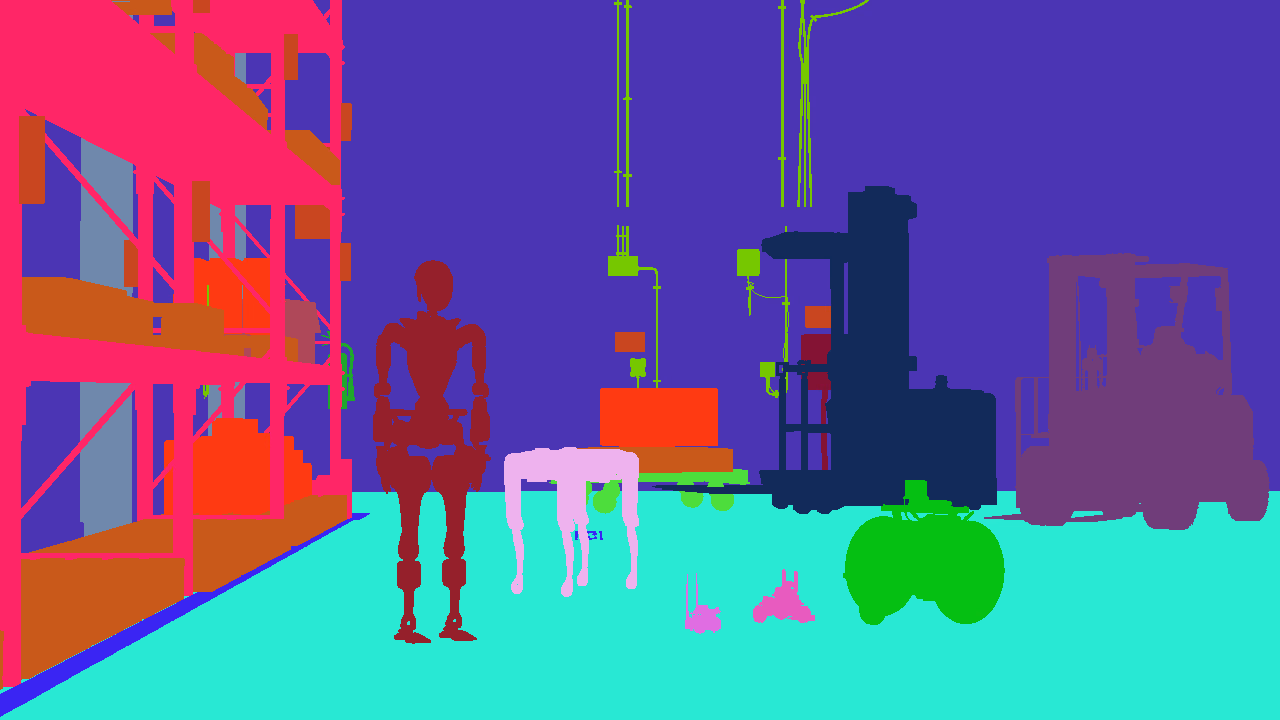

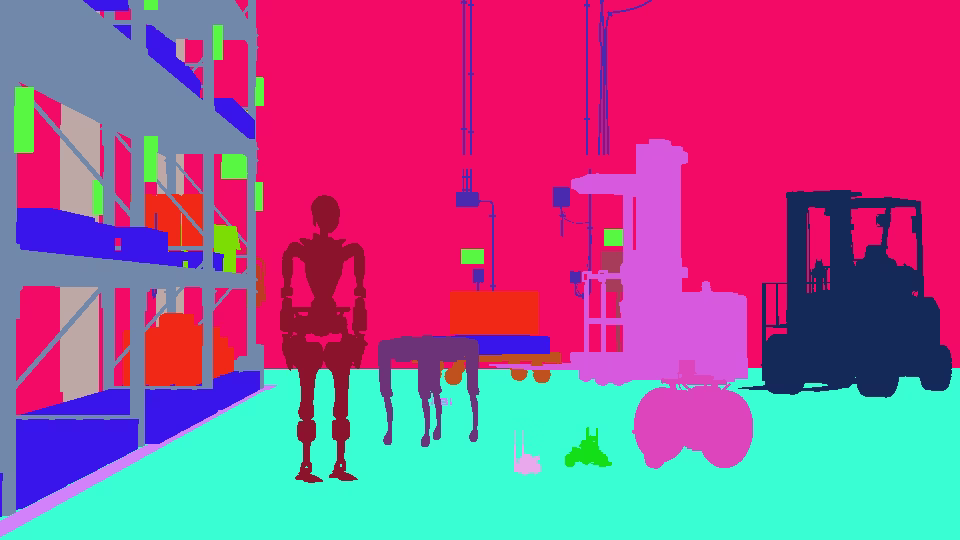

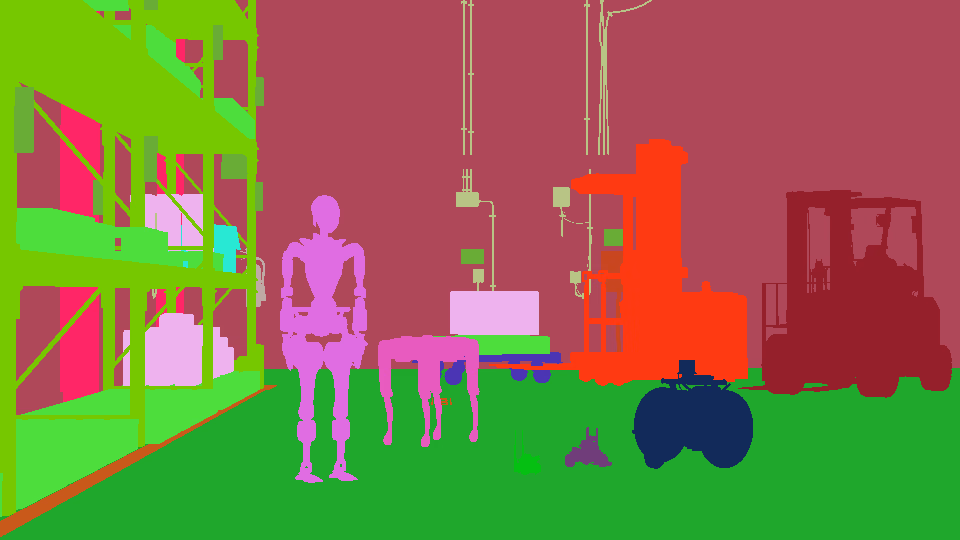

SemanticSegmentation	ID	uint32	(H, W, 1)
Per-pixel semantic ID. Decode SemanticIdMap to map each integer ID to its semantic label string. Python/C decoding.

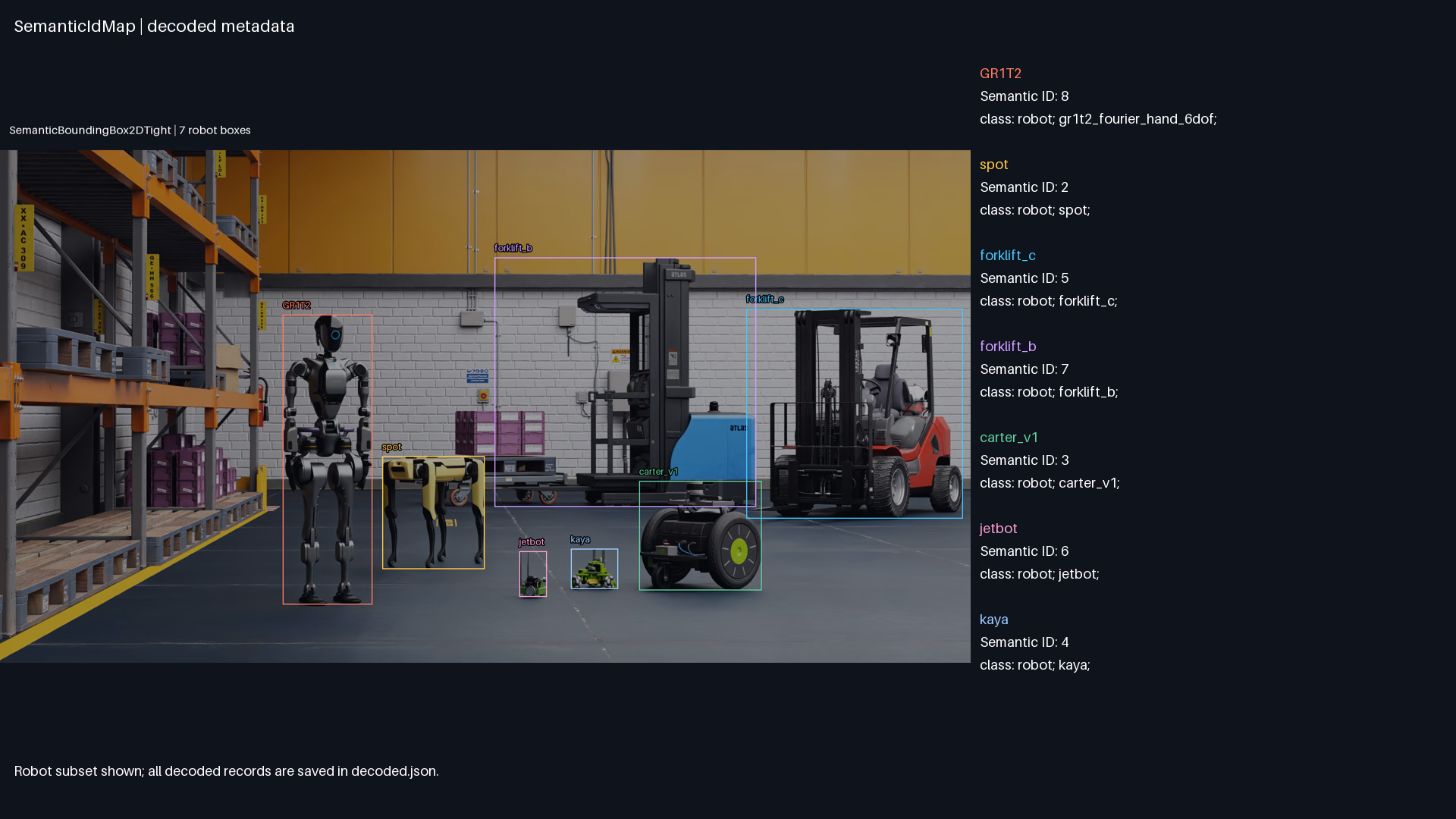

SemanticIdMap	IdentifierMap	uint8	Buffer
Packed metadata buffer mapping semantic IDs to label strings. Each entry contains uint32 id[4], label length, and label offset, followed by packed label bytes and a trailing entry count. Python/C decoding.

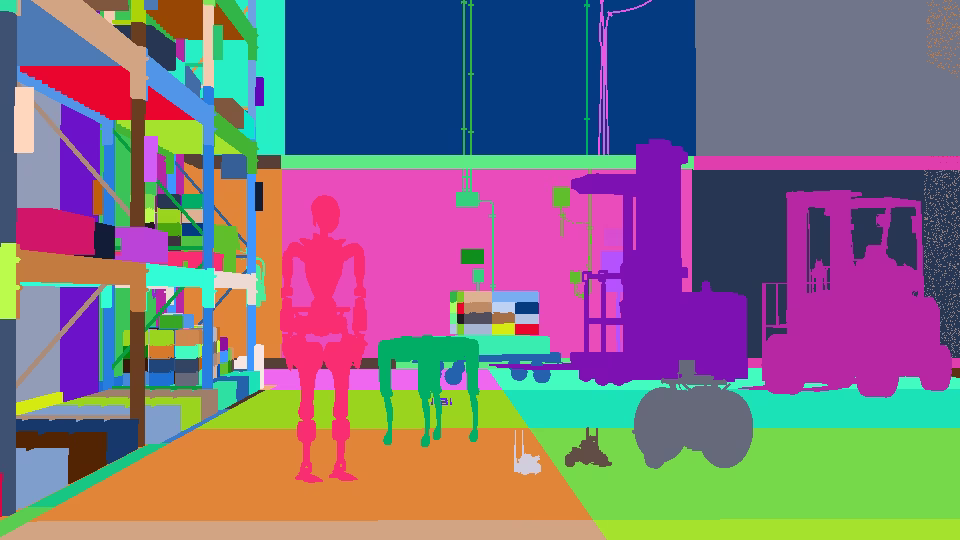

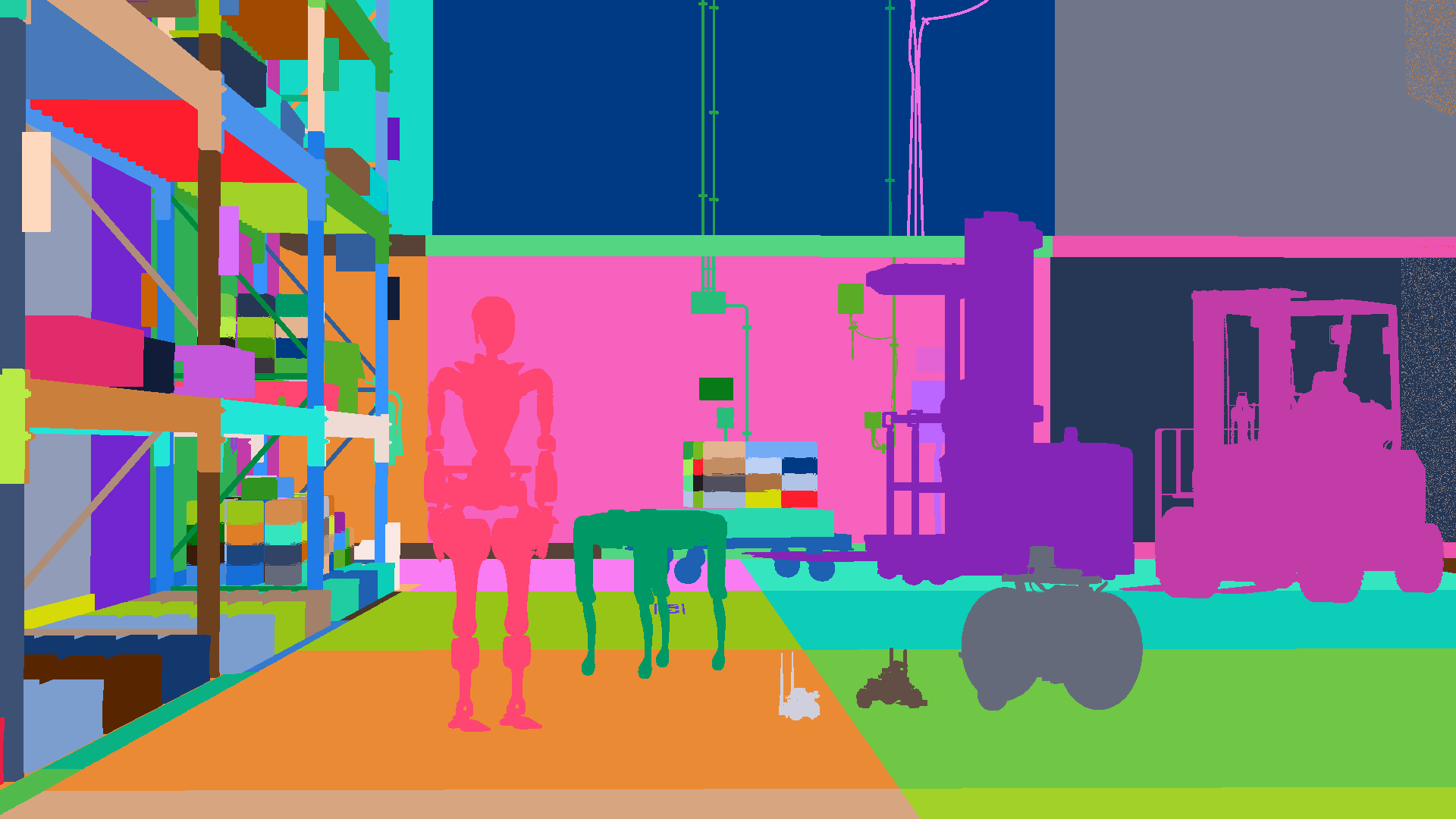

SemanticInstanceSegmentation	ID[4]	uint32	(H, W, 4)
Stable ID of the semantic prim associated with each pixel. Maintain a prim-path lookup from StableIdMapDeltas. Background is all zeros; unlabelled hits are (0, 0, 0, 1). Python/C decoding.

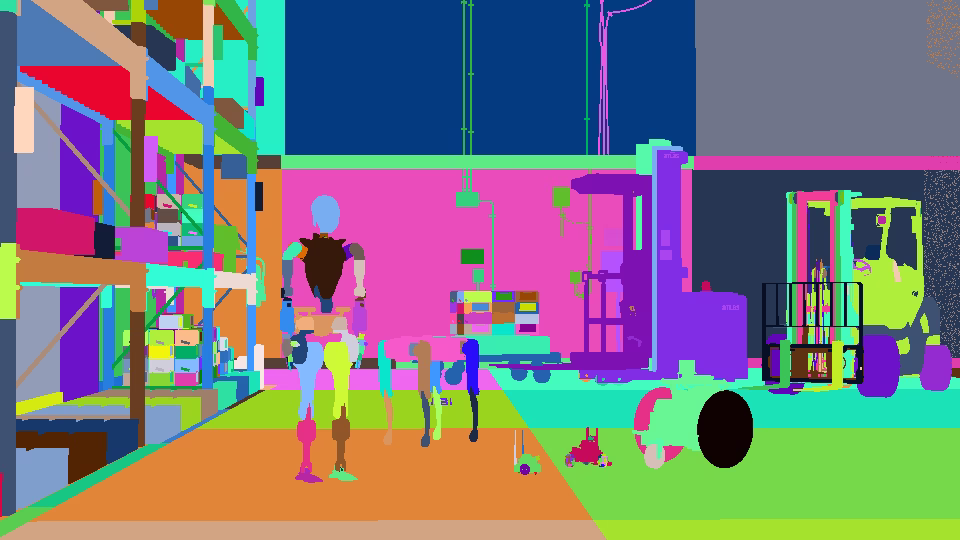

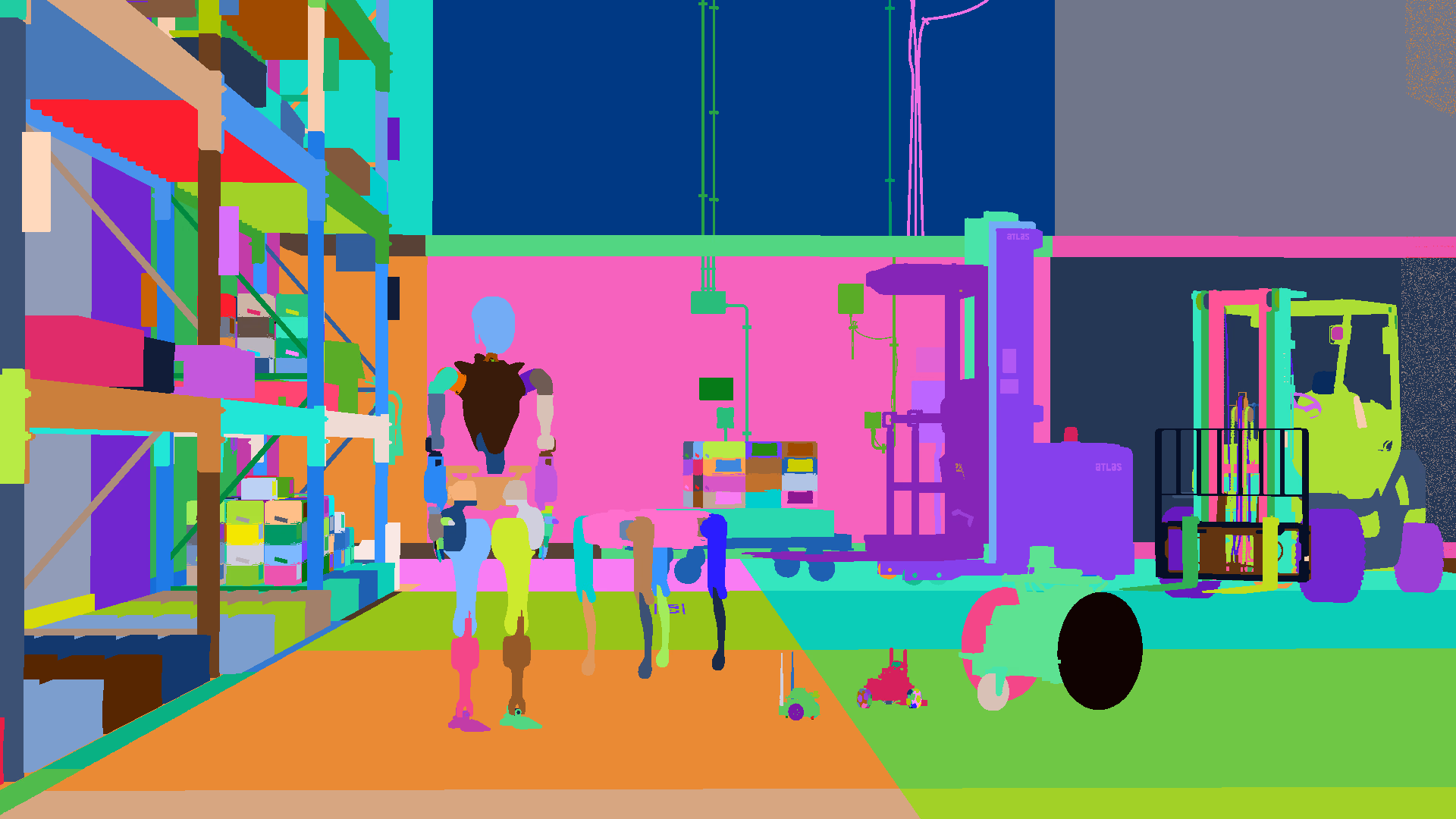

StableIdSegmentation	ID[4]	uint32	(H, W, 4)
Stable geometry-instance ID per pixel. The four words form one identifier, including its subset component. Background is all zeros. Python/C decoding.

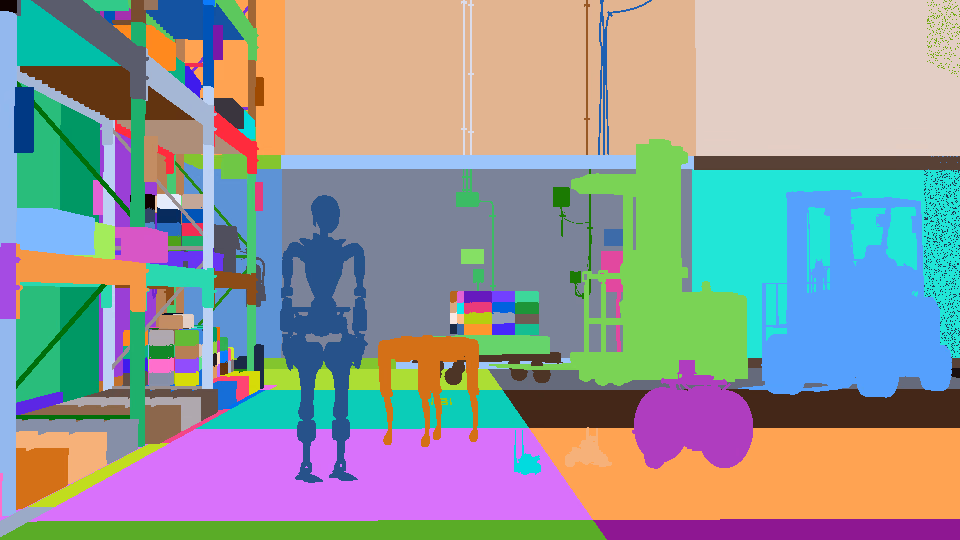

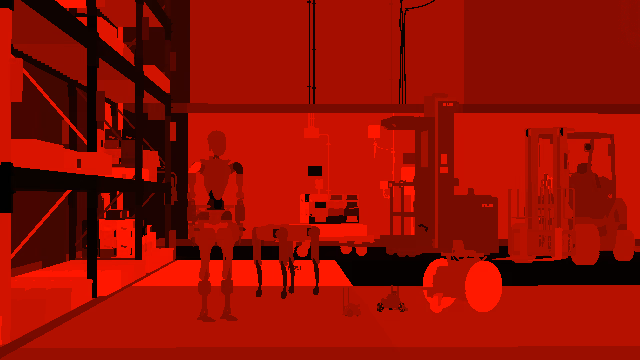

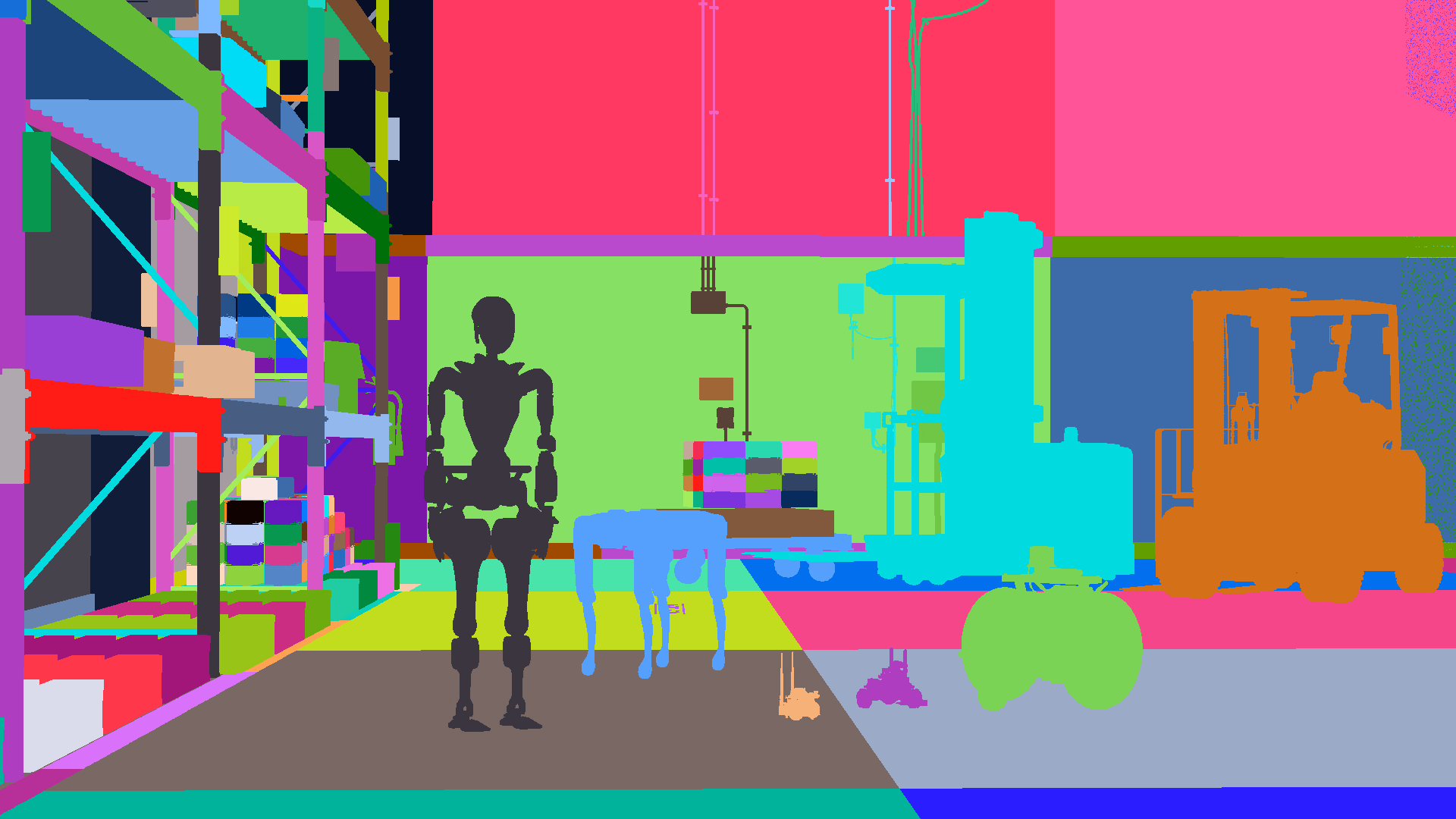

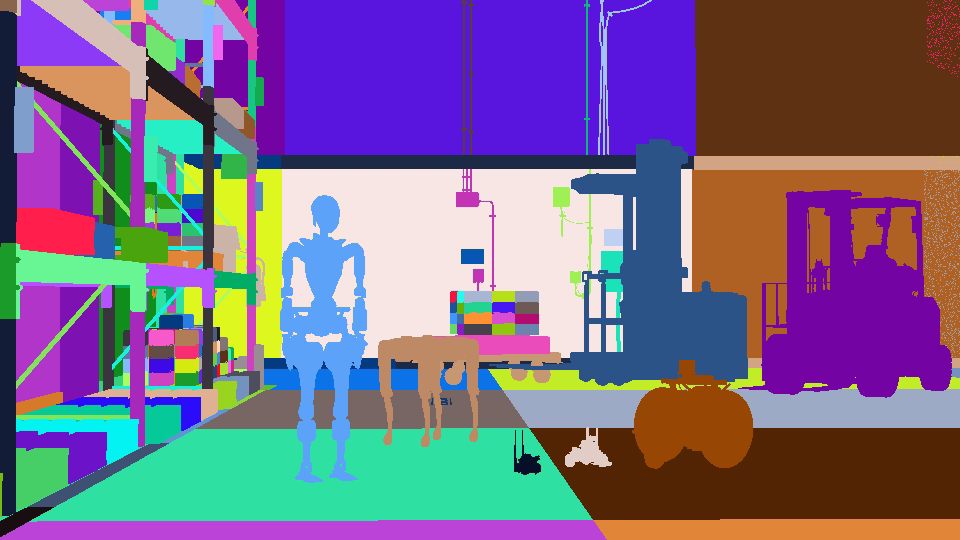

NonStableInstanceSegmentation	ID	uint32	(H, W, 1)
Runtime semantic-instance index plus 2 per pixel. Zero is background; 1 is an unlabelled hit. These indices can change as scene contents change. Python/C decoding.

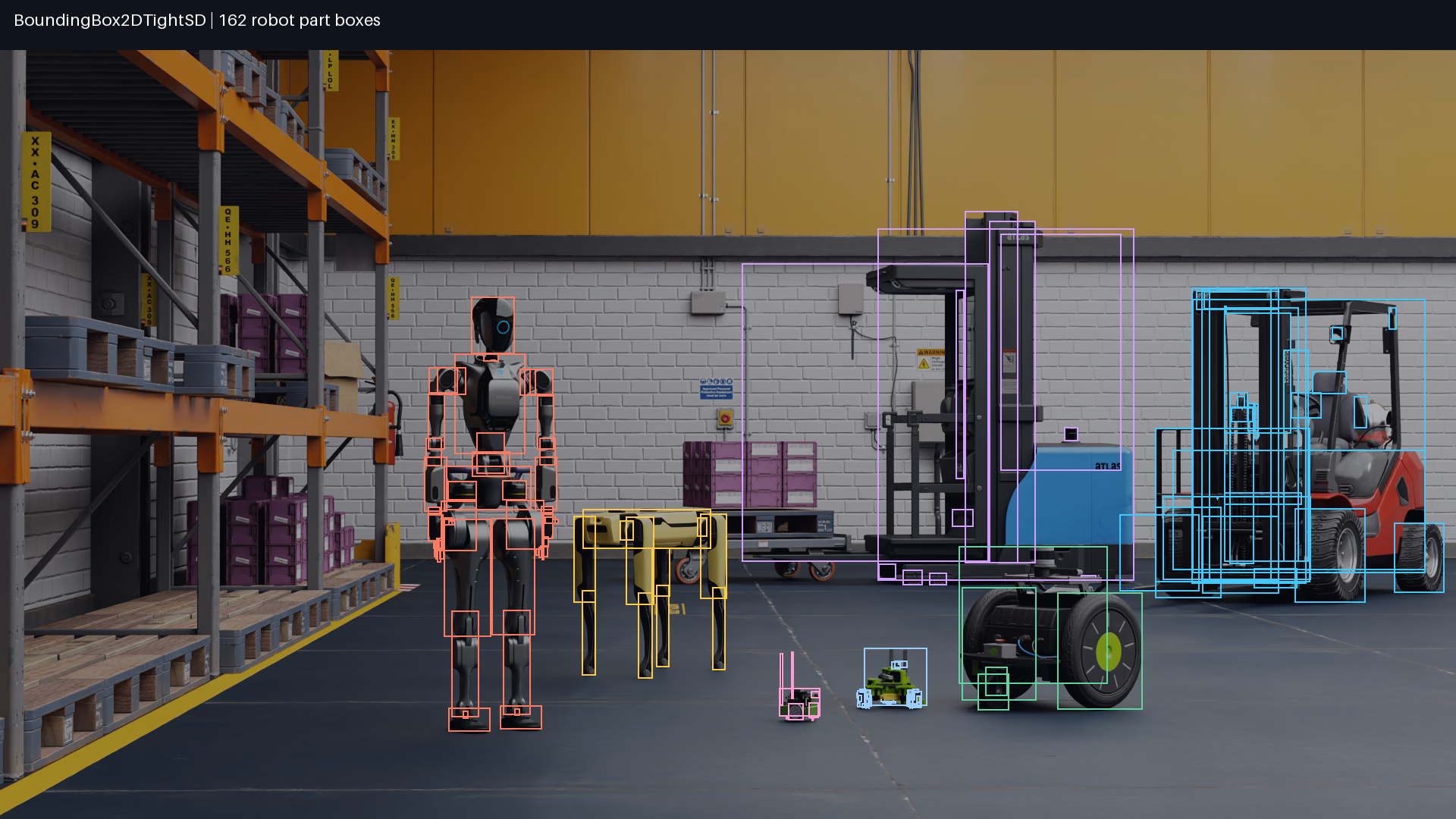

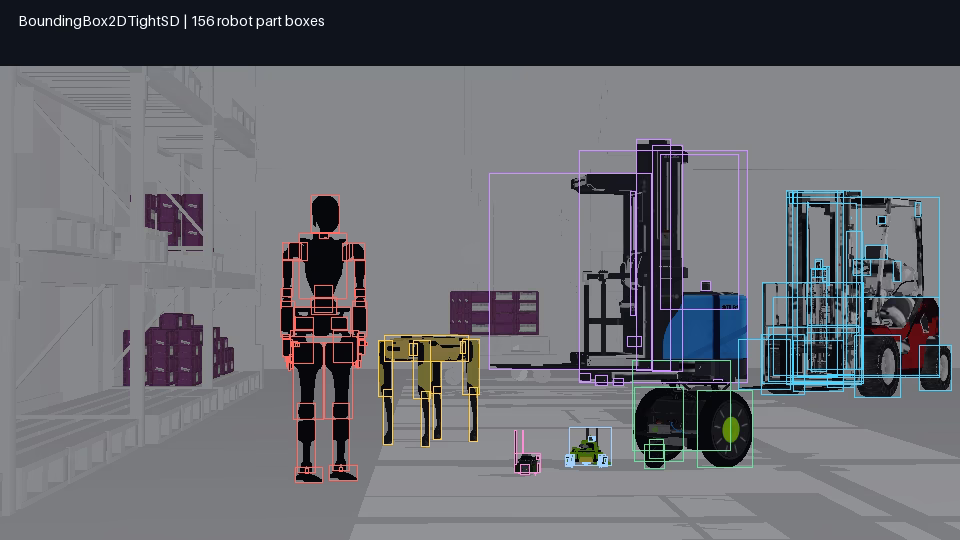

BoundingBox2DTightSD	BoundingBox2DValues	uint8	(B,)
Per-instance visible-pixel bounds. Each 24-byte record contains instance/tile IDs and integer pixel bounds. Reject records with inverted bounds. Python/C decoding.

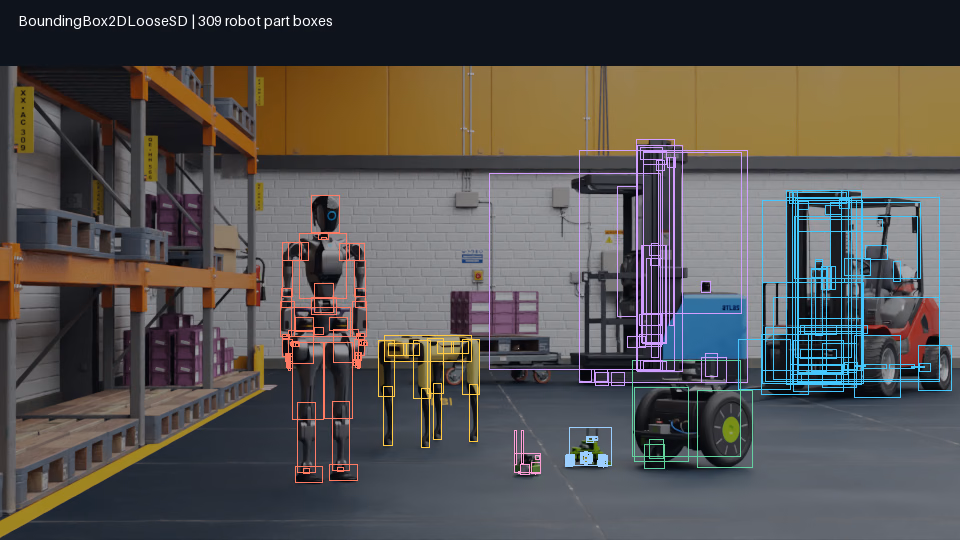

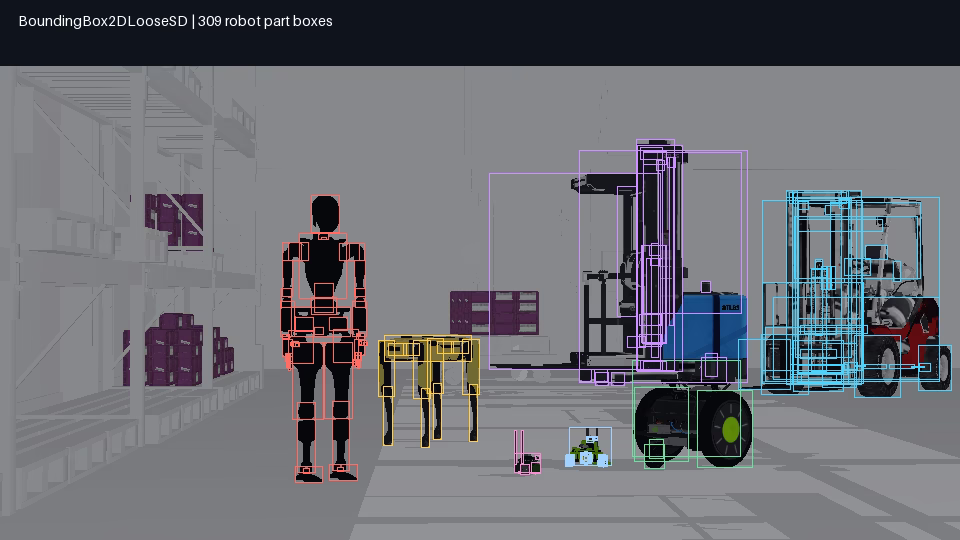

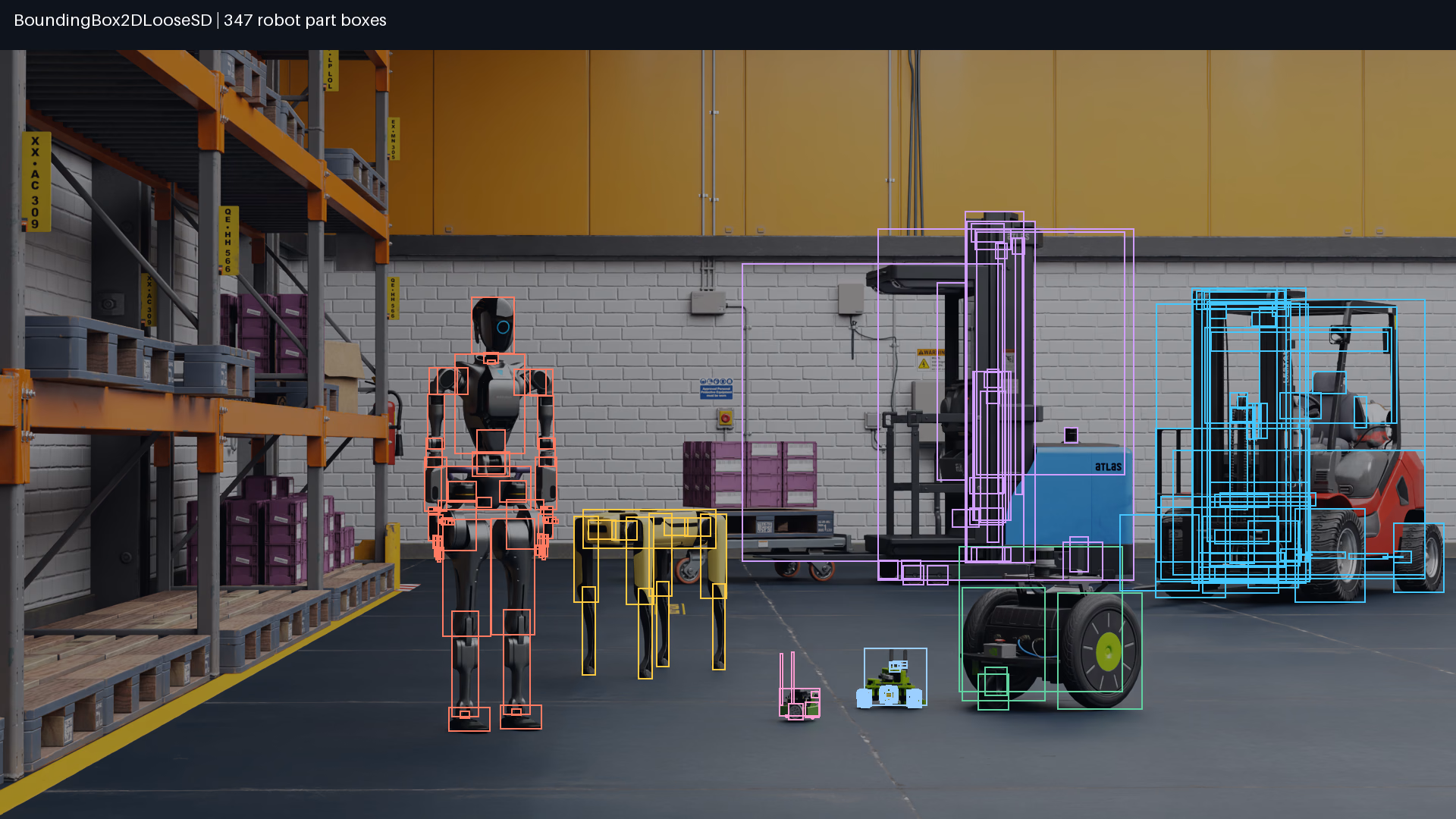

BoundingBox2DLooseSD	BoundingBox2DValues	uint8	(B,)
Per-instance 2D bounds including occluded geometry. Same 24-byte layout as tight boxes. Reject records with inverted bounds. Python/C decoding.

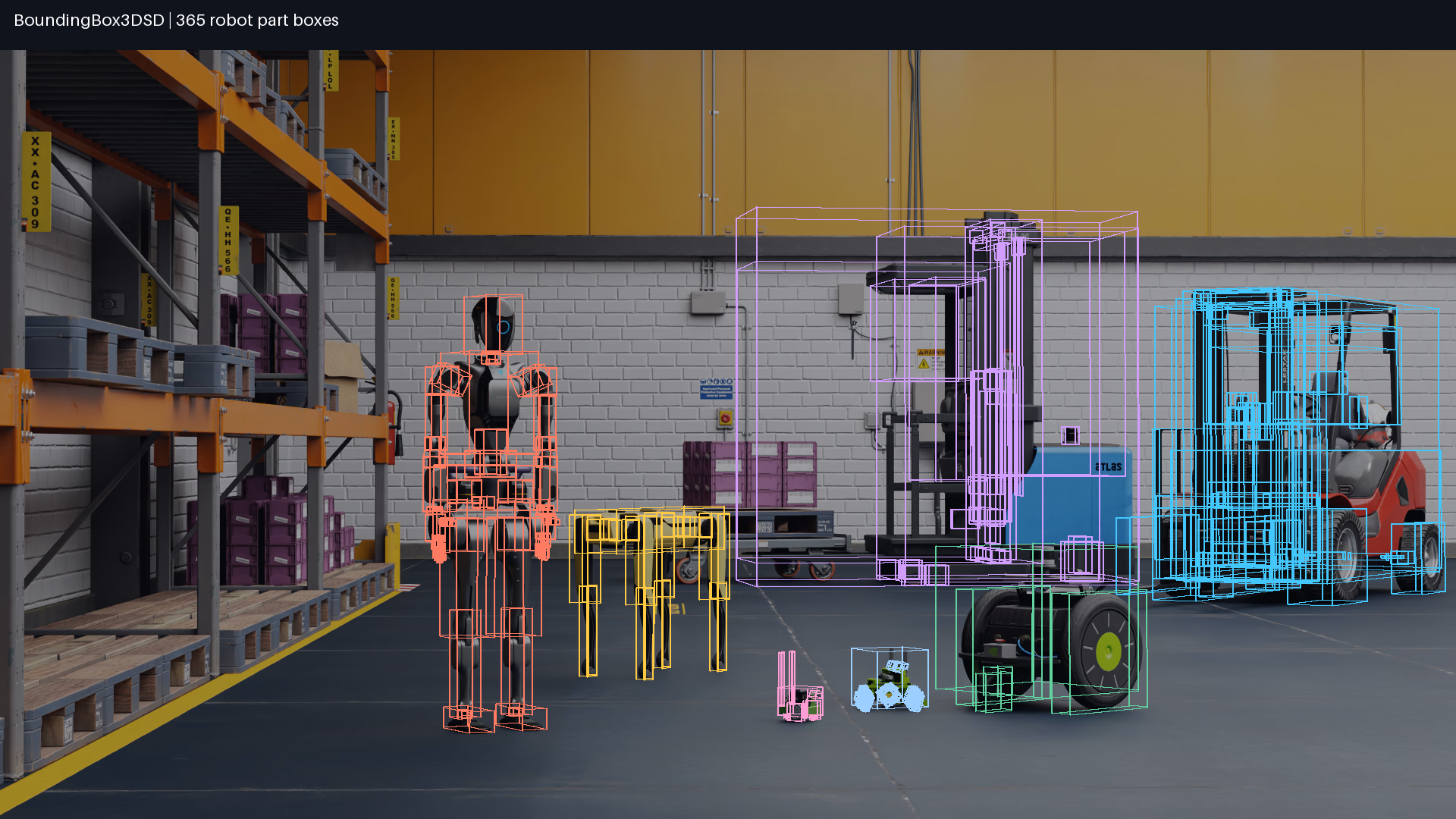

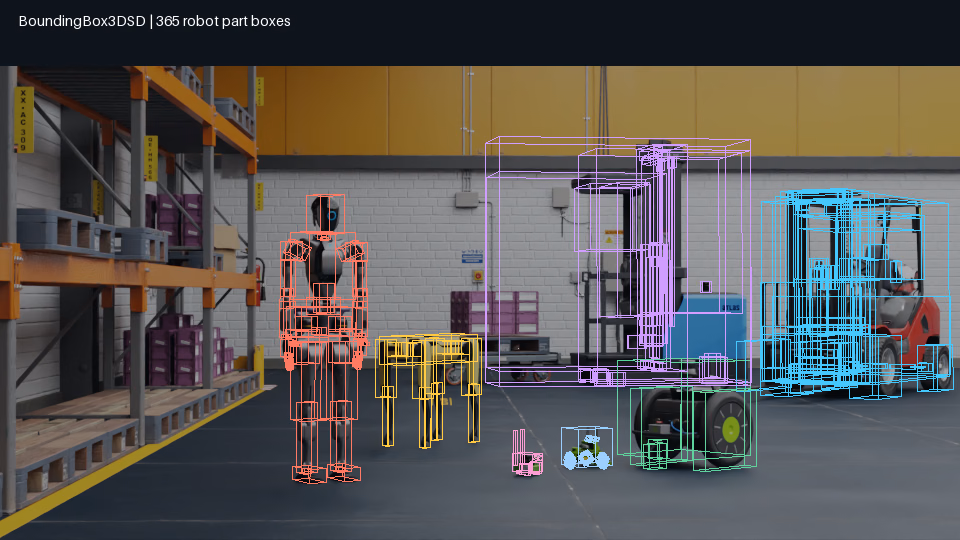

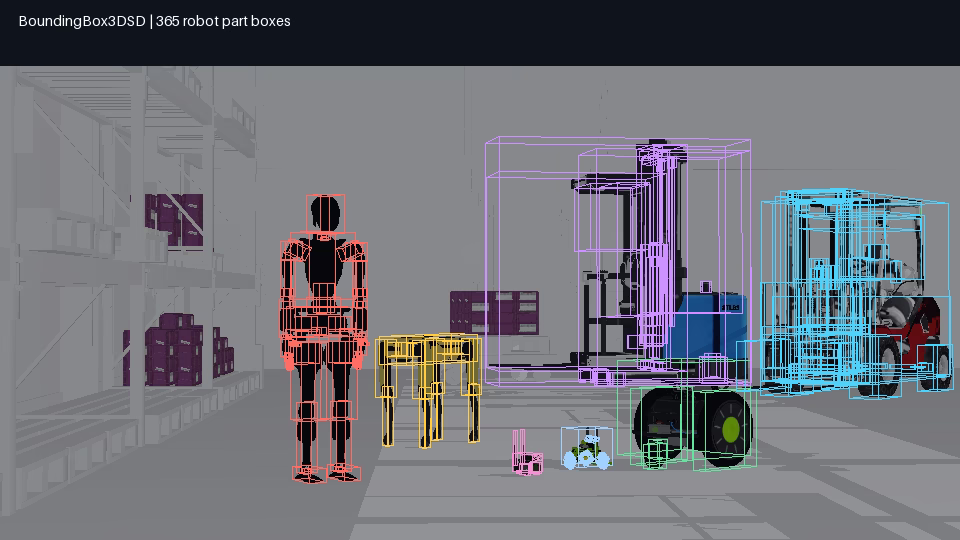

BoundingBox3DSD	BoundingBox3DValues	uint8	(B,)
Per-instance local 3D extents and a transform to world space. Each record is 96 bytes. Python/C decoding.
SemanticBoundingBox2DTight	SemanticBoundingBox2DValues	uint8	(B,)
Visible-pixel bounds grouped by semantic instance. Each 48-byte record contains stable instance and semantic IDs plus pixel bounds. Read the trailing valid-record count. Python/C decoding.

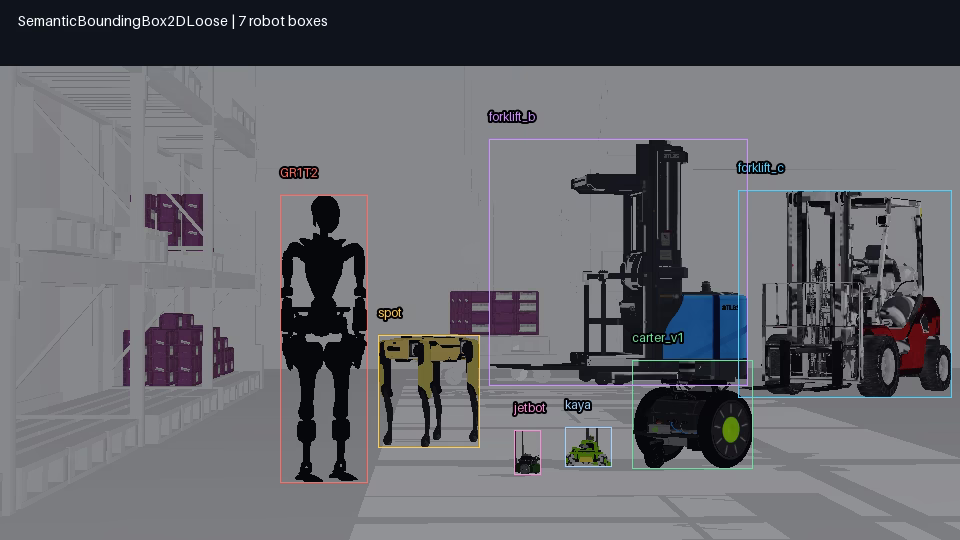

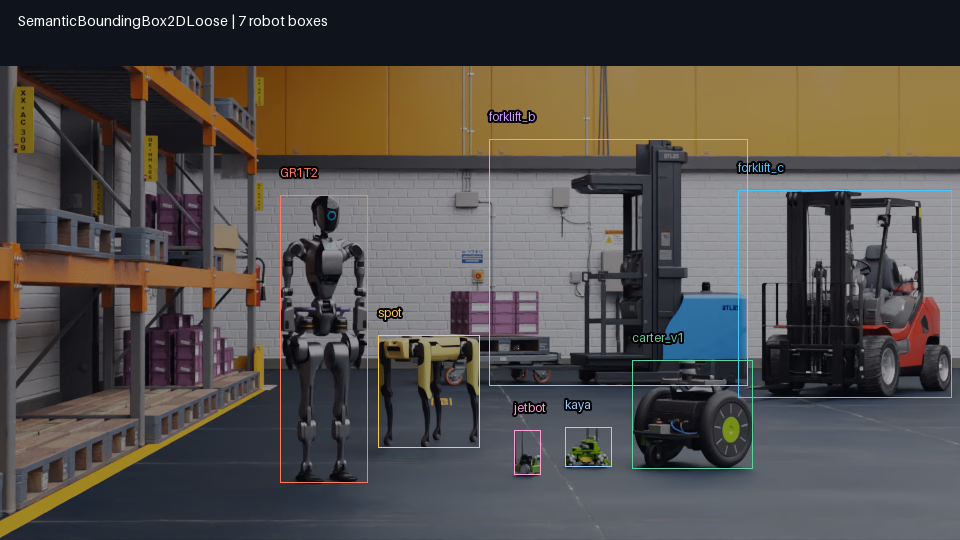

SemanticBoundingBox2DLoose	SemanticBoundingBox2DValues	uint8	(B,)
2D bounds including occluded geometry, grouped by semantic instance. Same layout and trailing count as semantic tight boxes. Python/C decoding.

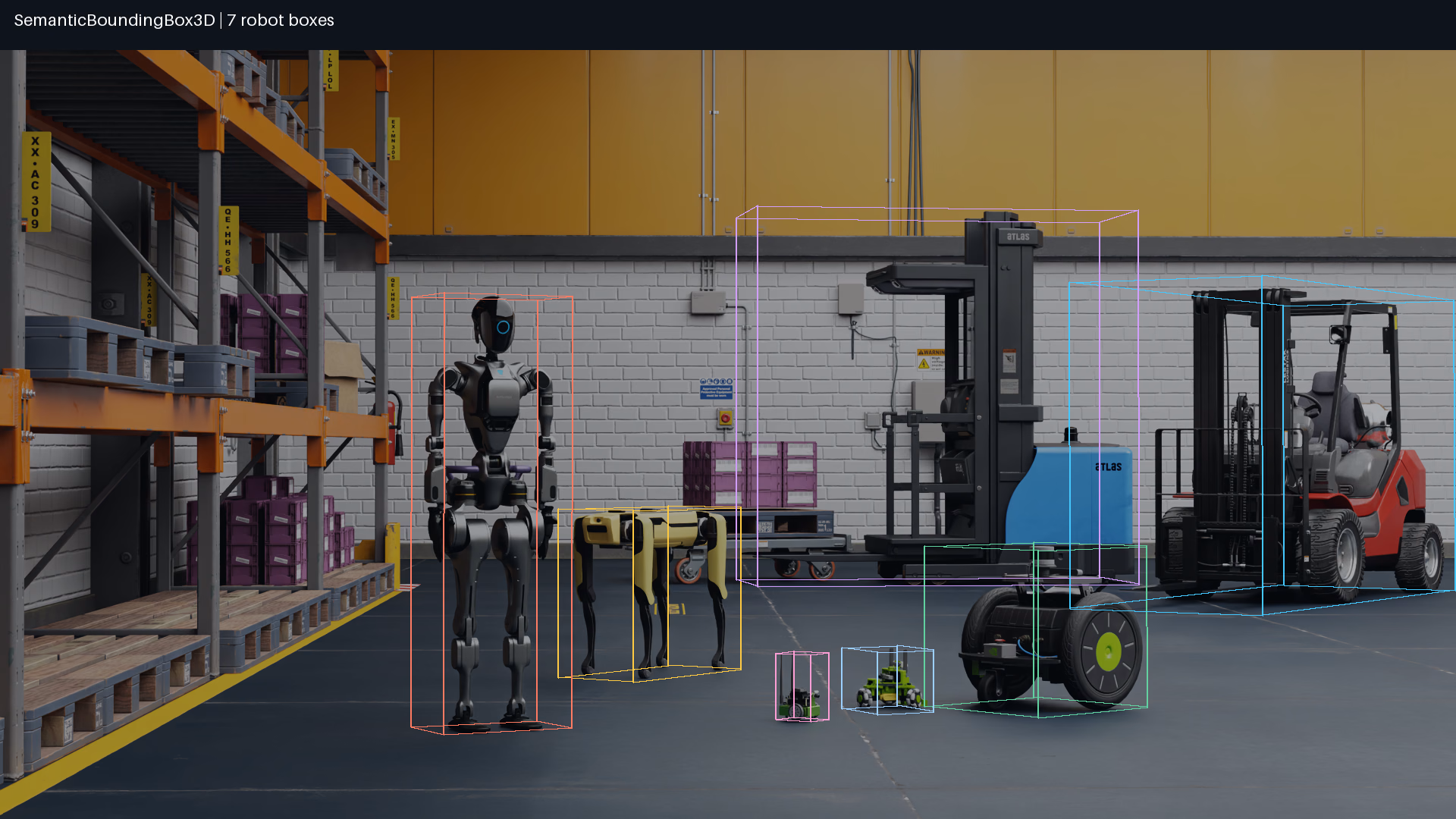

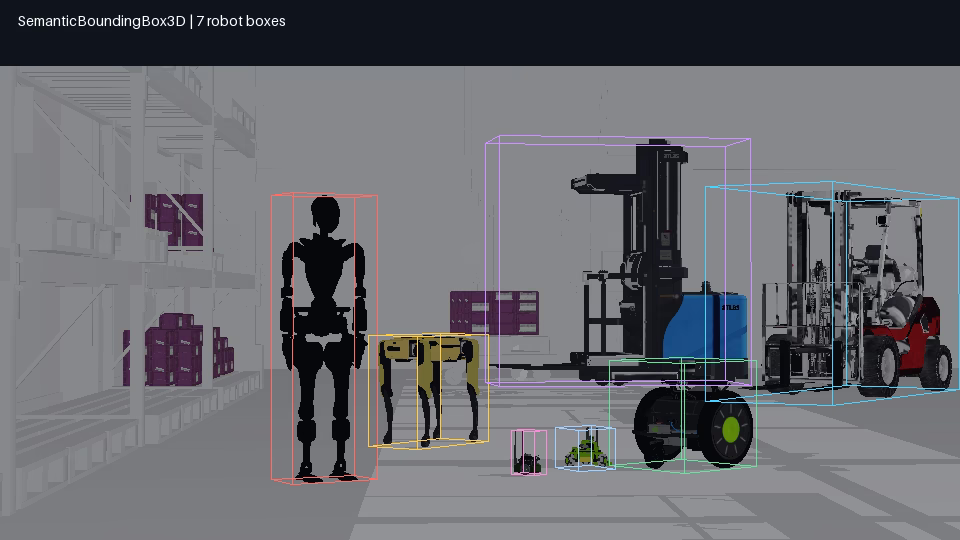

SemanticBoundingBox3D	SemanticBoundingBox3DValues	uint8	(B,)
Local 3D extents and world transform grouped by semantic instance. Each record is 120 bytes; read the trailing valid-record count. Python/C decoding.

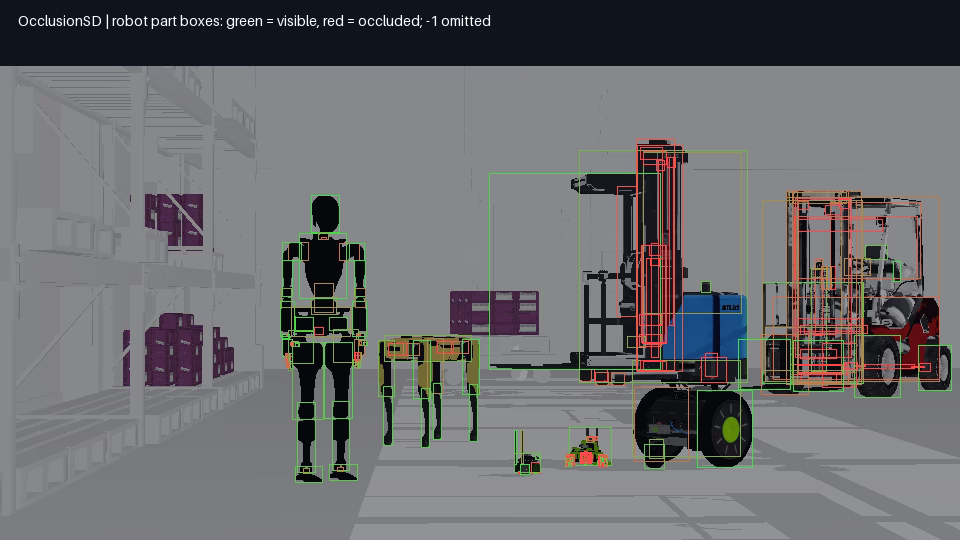

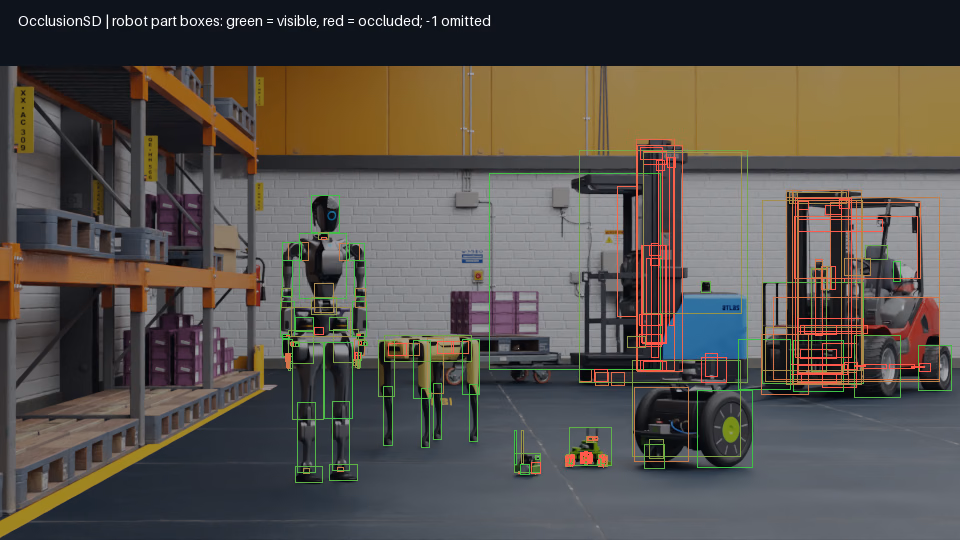

OcclusionSD	OcclusionValues	uint8	(B,)
Per-instance occluded fraction in [0, 1]. A ratio of -1 means no sampled hits. Each 12-byte record contains instance/tile IDs and a float32 ratio. Python/C decoding.
InstanceIdTokenMapSD	InstanceIdToken	uint8	(B,)
Runtime instance IDs mapped to opaque prim handles, prototype indices and instancer indices. A 24-byte header precedes 24-byte records. Python/C decoding.

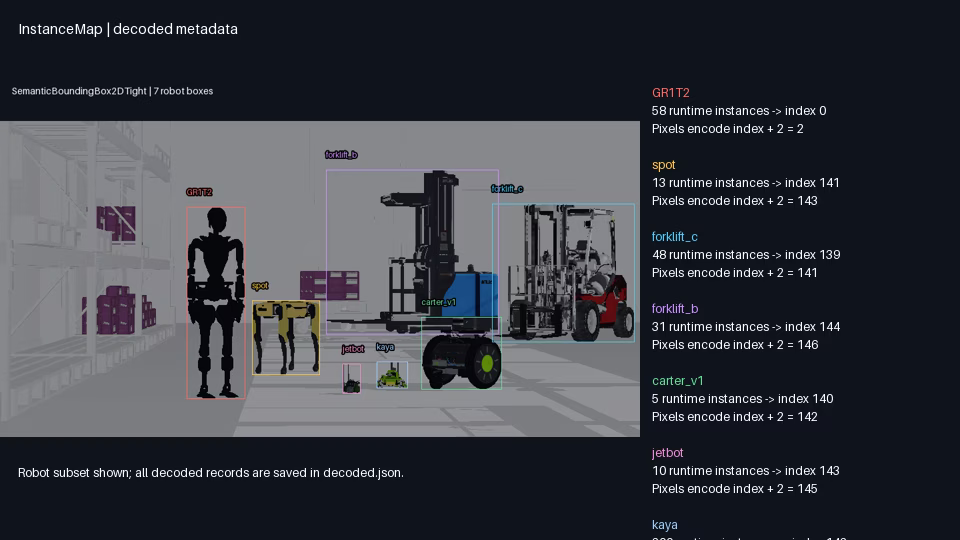

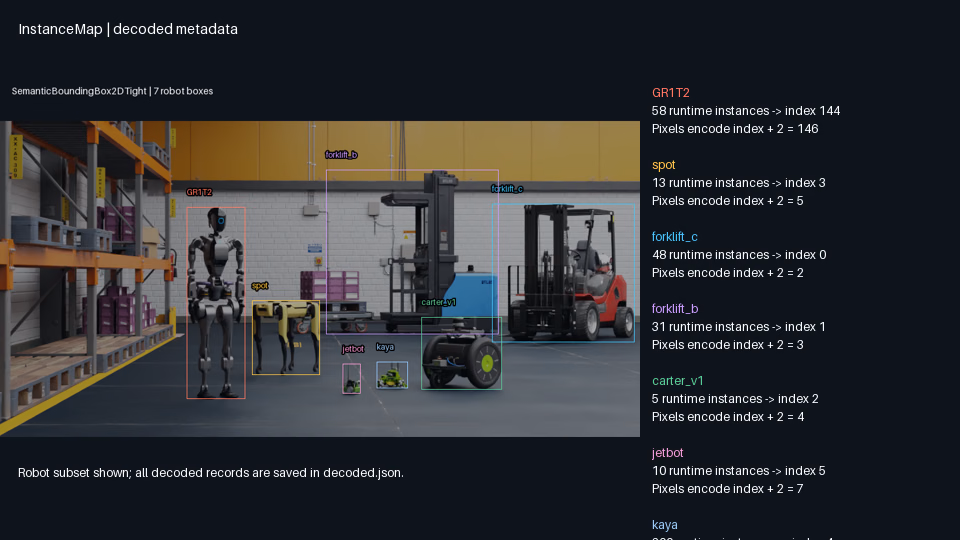

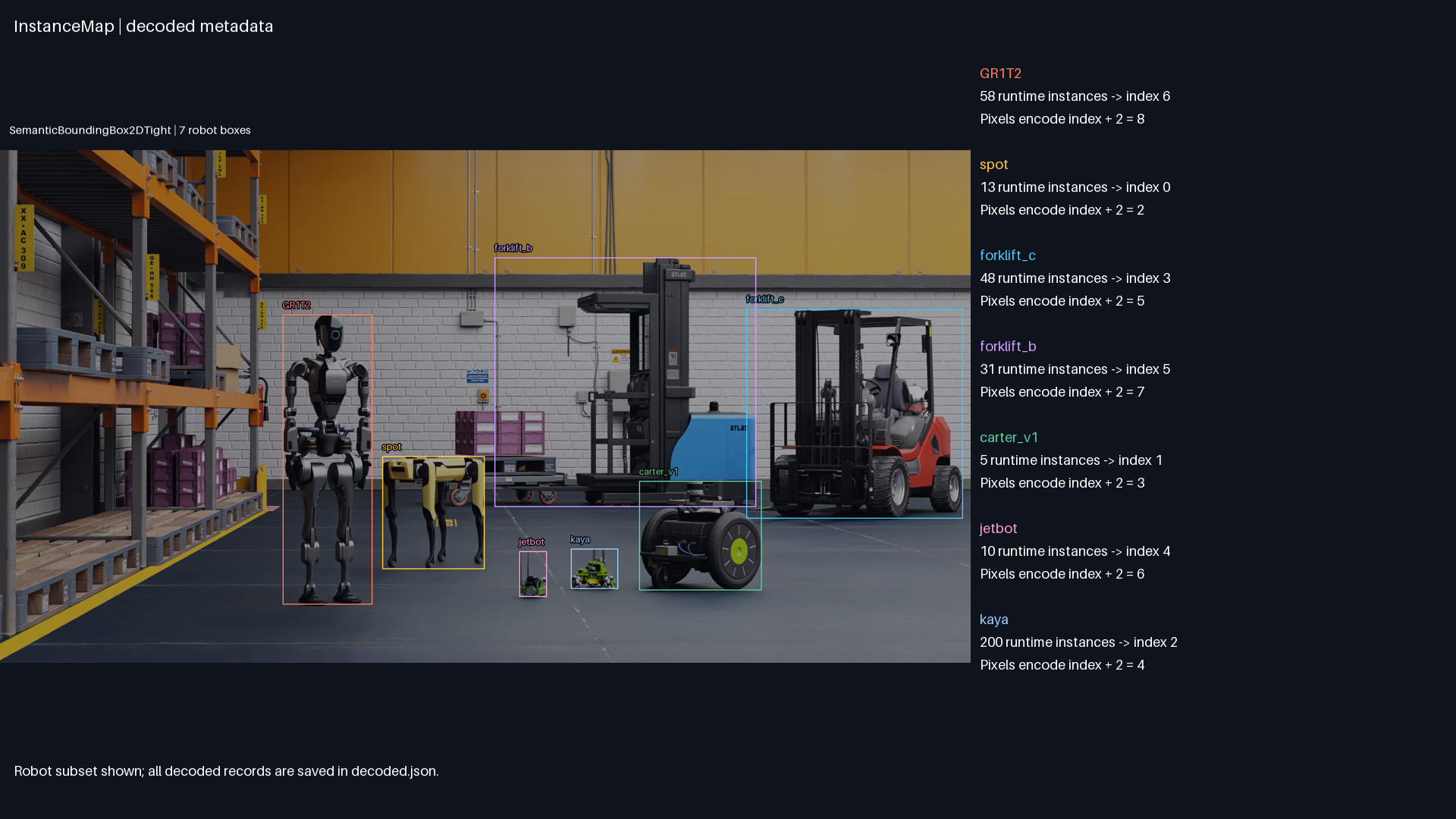

InstanceMap	uint32 array	uint8	(B,)
Runtime-instance-to-semantic-instance lookup. Reinterpret the byte buffer as uint32 indices; 0xFFFFFFFF means no semantic parent. Indices address semantic-instance records, not SemanticIdMap label IDs. Python/C decoding.
StableIdMapDeltas	IdentifierMap	uint8	(B,)
New stable-ID/prim-path entries since the last generated delta. The first frame includes scene-creation entries. An unchanged scene returns a four-byte zero count. Python/C decoding.

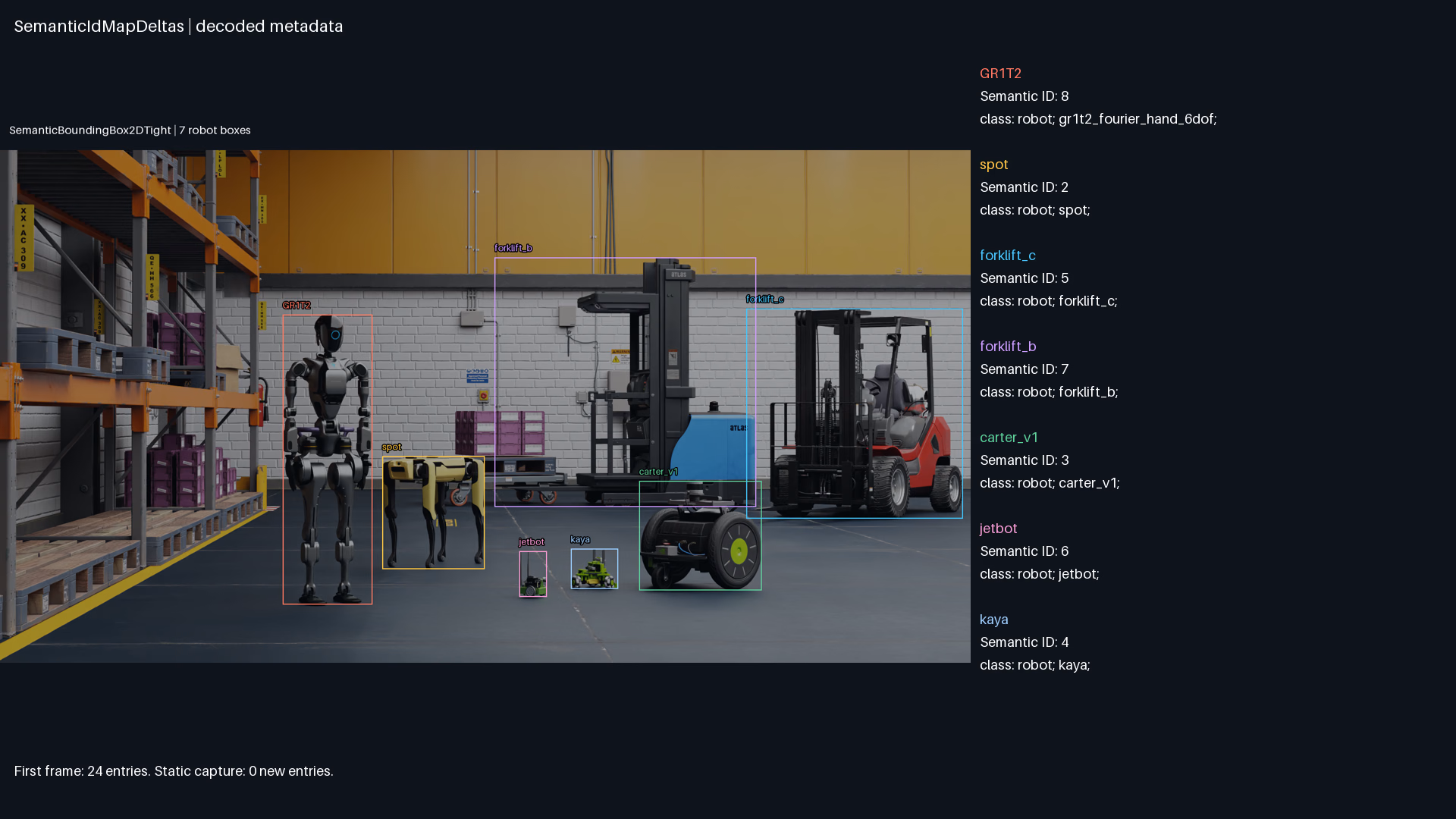

SemanticIdMapDeltas	IdentifierMap	uint8	(B,)
New semantic-ID/label entries since the last generated delta. Same packed layout as SemanticIdMap. An unchanged scene returns a four-byte zero count. Python/C decoding.

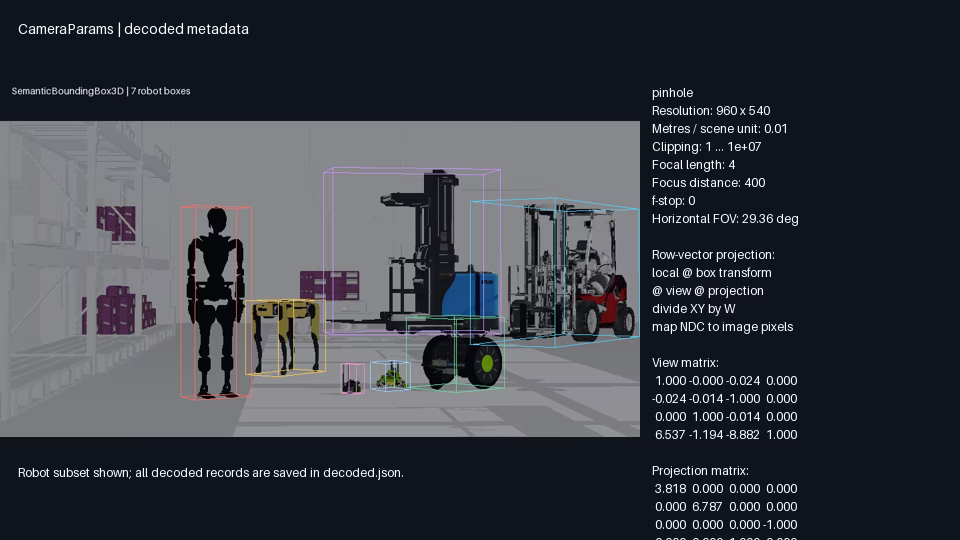

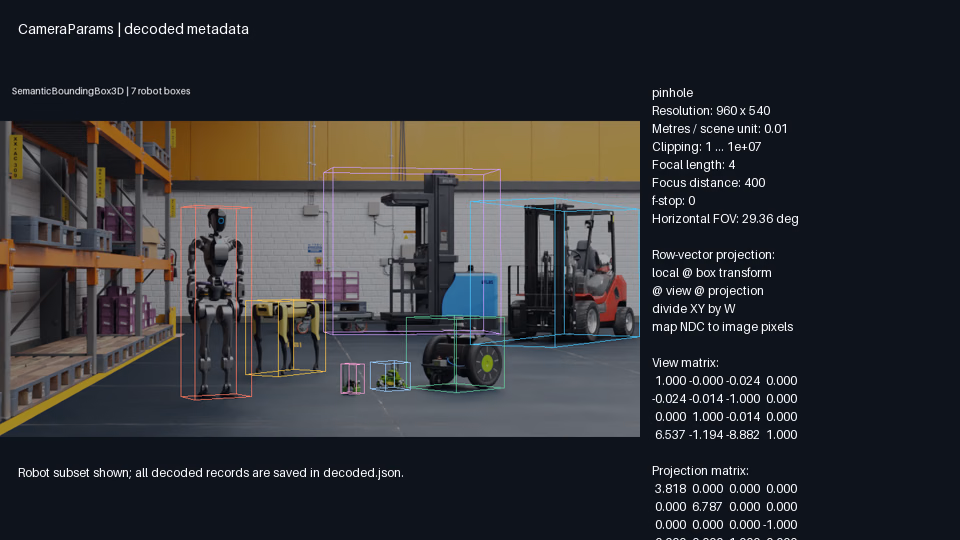

CameraParams	CameraParams	uint8	(260,)
View and projection matrices, scene-unit scale, resolution, clipping range, camera-model name and lens parameters. Python/C decoding.

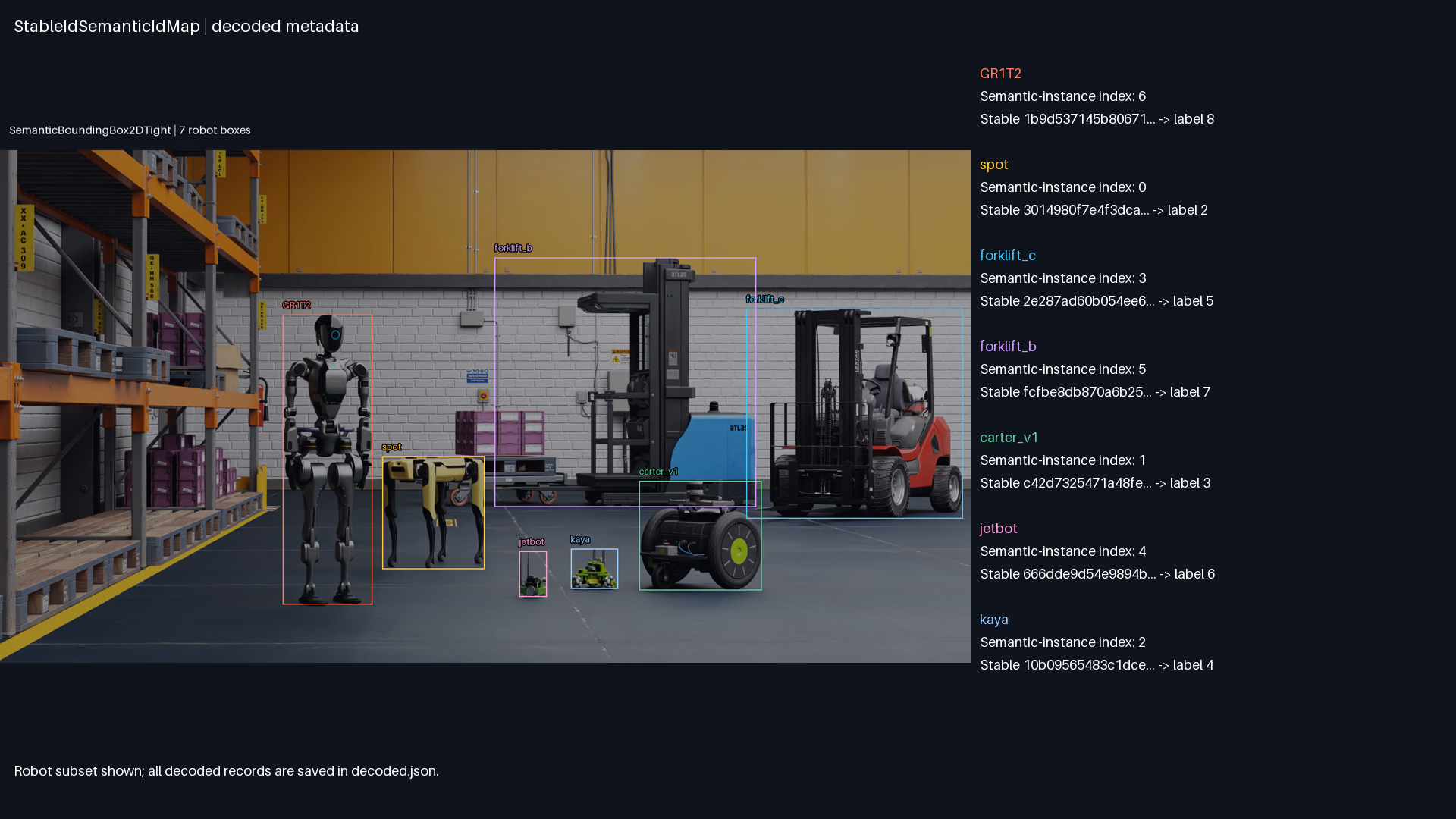

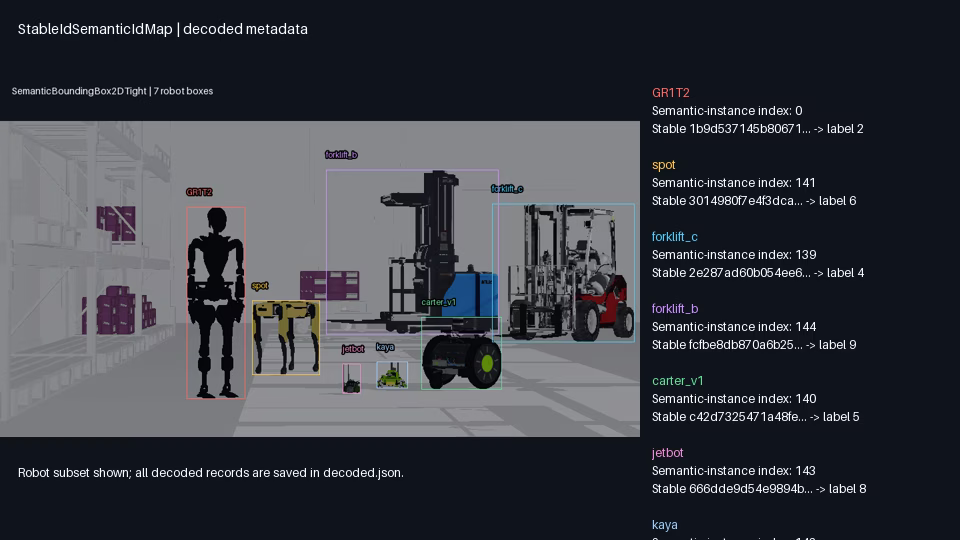

StableIdSemanticIdMap	ID pairs	uint8	(B,)
Stable semantic-instance IDs mapped to semantic label IDs. Each 32-byte record contains uint32 stableId[4] followed by uint32 semanticId[4]. No trailing count. Python/C decoding.

Path Tracing

sourceName	Format	Type	Shape	Example
LdrColor	RGBA	uint8	(H, W, 4)
Tone-mapped sRGB color; uint8 channels decode to [0, 1]. Python/C pixel decoding.
HdrColor	RGBA	float16	(H, W, 4)
Linear HDR beauty color. Convert float16 to float32 before processing. Python/C pixel decoding.

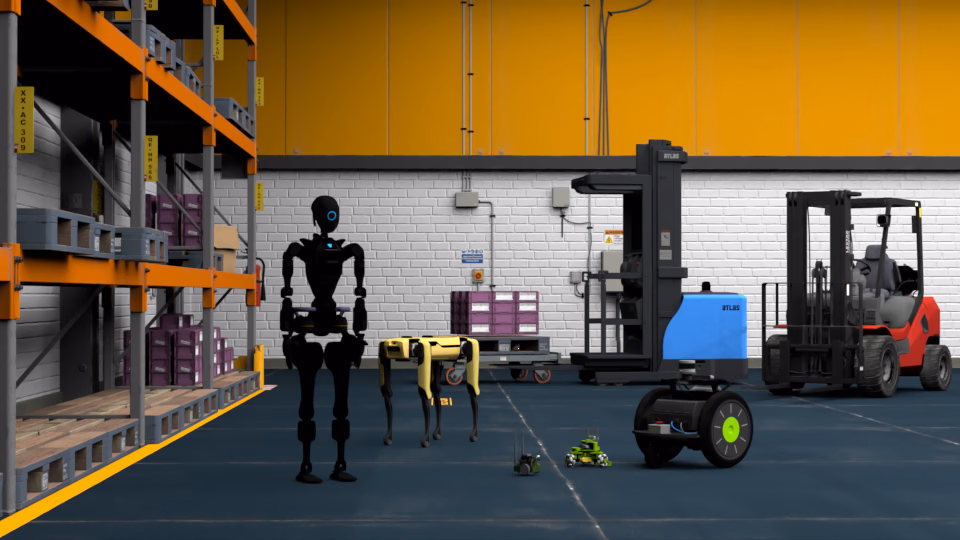

PtDirectIllumation	RGBA	float16	(H, W, 4)
Direct illumination. The source name intentionally uses the renderer spelling Illumation. Python/C pixel decoding.

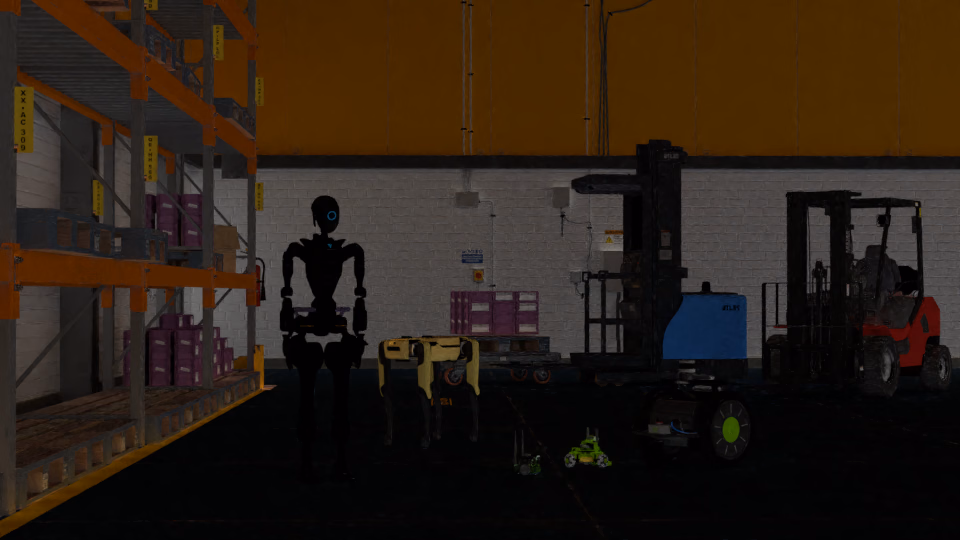

PtGlobalIllumination	RGBA	float16	(H, W, 4)
Indirect illumination from bounced light. Python/C pixel decoding.

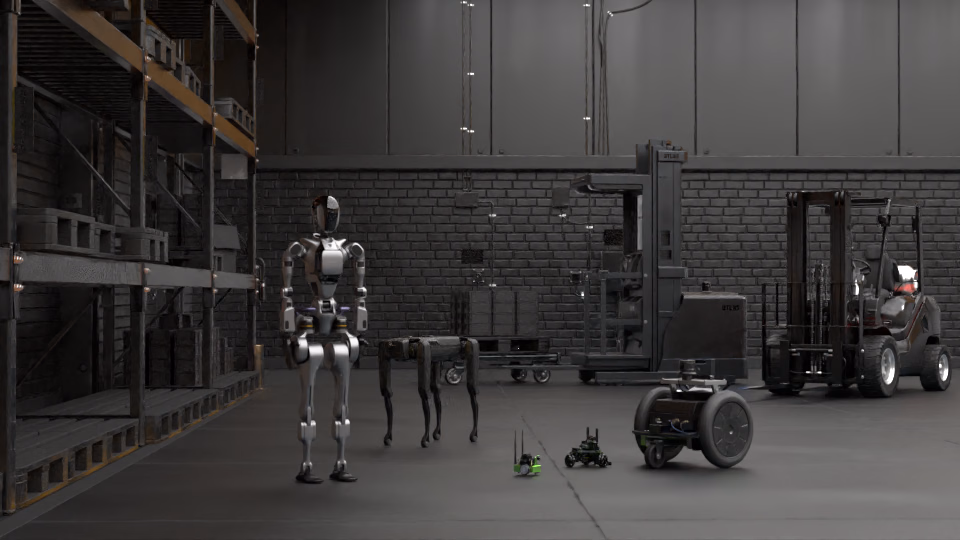

PtReflections	RGBA	float16	(H, W, 4)
Reflected radiance. Python/C pixel decoding.

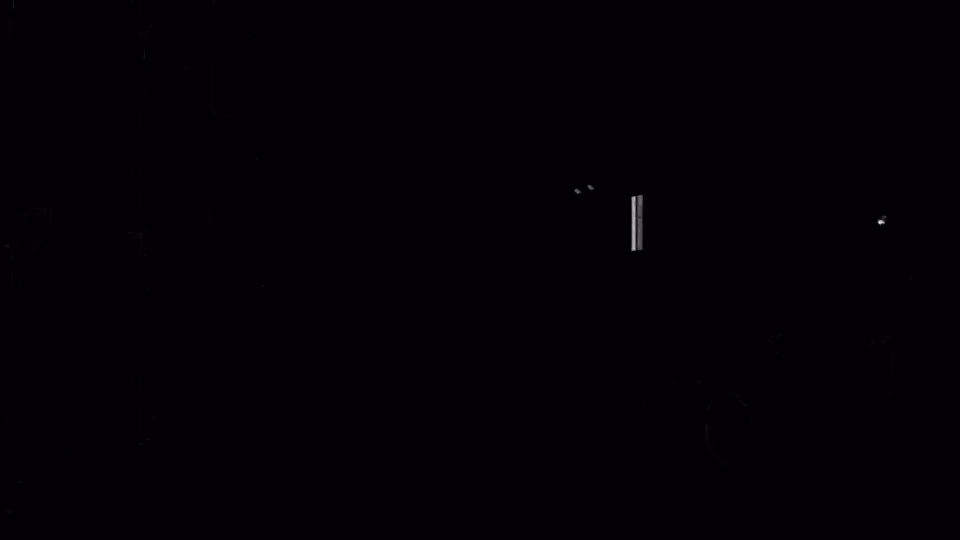

PtRefractions	RGBA	float16	(H, W, 4)
Transmitted radiance. Python/C pixel decoding.

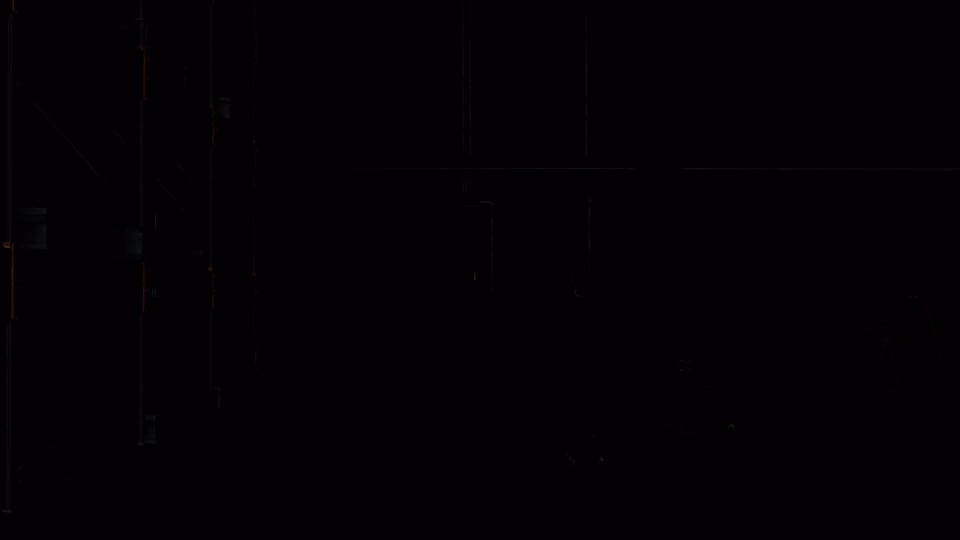

PtSubsurfaceScattering	RGBA	float16	(H, W, 4)
Subsurface-scattered radiance. Python/C pixel decoding.
PtSelfIllumination	RGBA	float16	(H, W, 4)
Surface emission. Python/C pixel decoding.

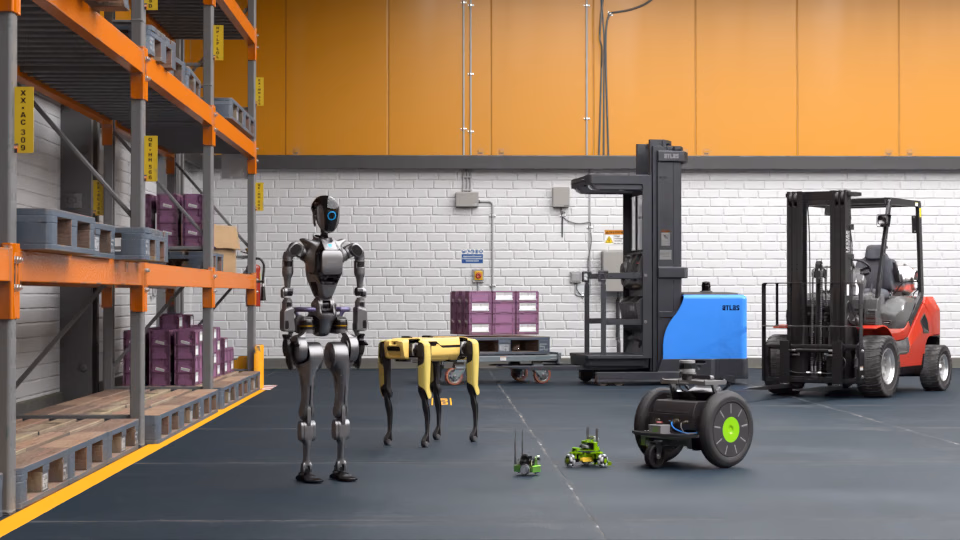

PtPreDenoisedResult	RGBA	float16	(H, W, 4)
Accumulated radiance before denoising. Python/C pixel decoding.

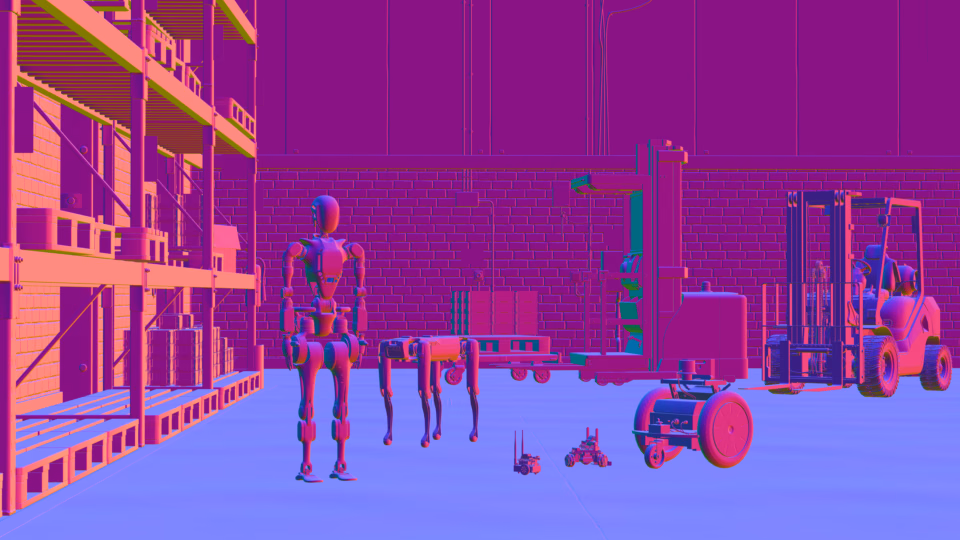

PtWorldNormal	RGBA	float32	(H, W, 4)
World-space geometric normal in XYZ, averaged across samples; edges can have length below one. Display [-1, 1] as [0, 1]. Python/C pixel decoding.

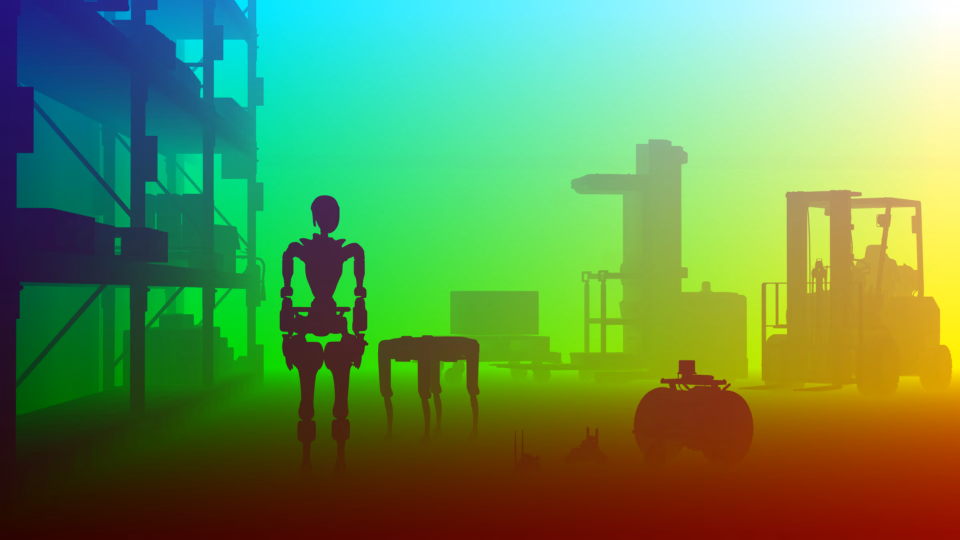

PtWorldPos	RGBA	float32	(H, W, 4)
World-space hit position in XYZ, in scene units. The preview rescales each coordinate. Python/C pixel decoding.

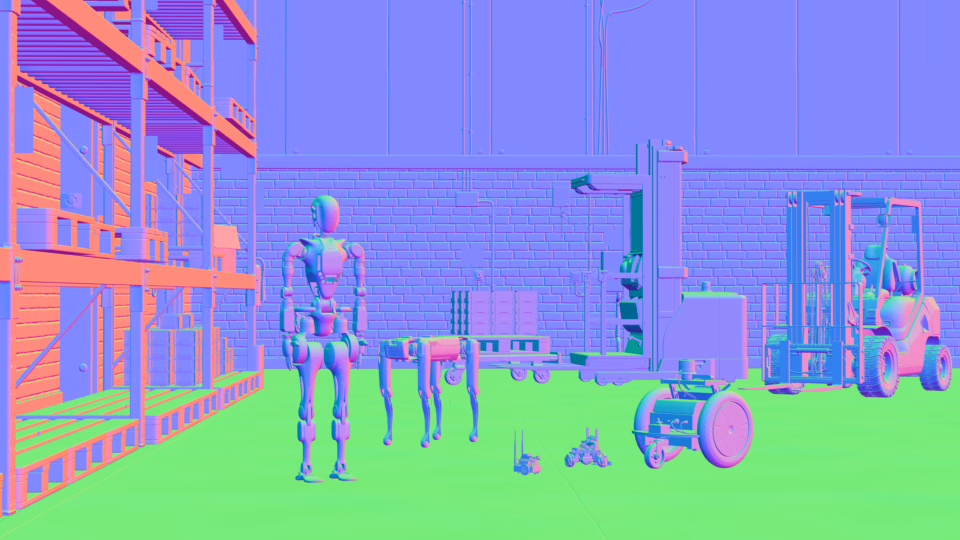

PtViewNormal	RGBA	float16	(H, W, 4)
View-space normal in XYZ, averaged across samples. Display [-1, 1] as [0, 1]. Python/C pixel decoding.

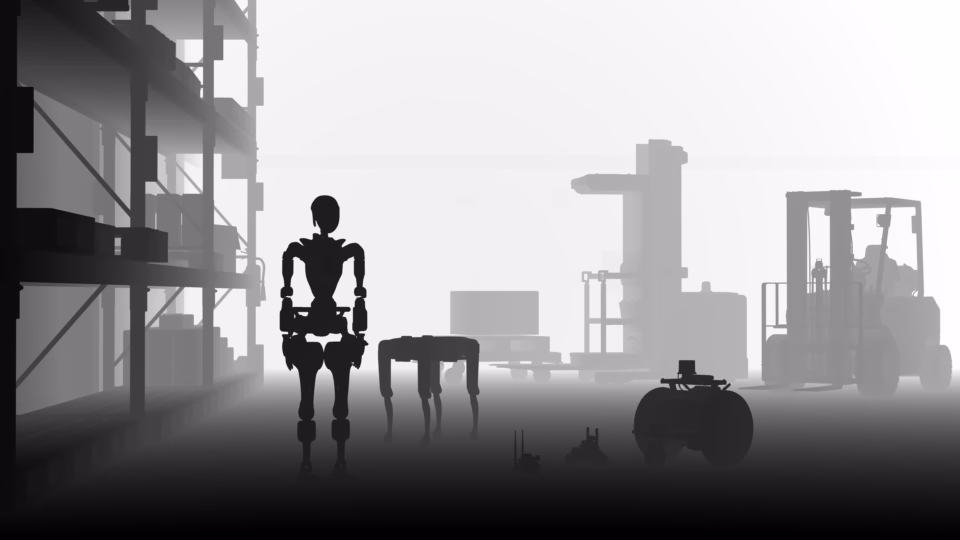

PtZDepth	RGBA	float16	(H, W, 4)
Normalized ray-hit distance, clamped to [0, 1] using the configured PT depth range; repeated in RGB. Python/C pixel decoding.
PtDiffuseFilter	RGBA	float16	(H, W, 4)
Diffuse material color filter in RGB. Python/C pixel decoding.

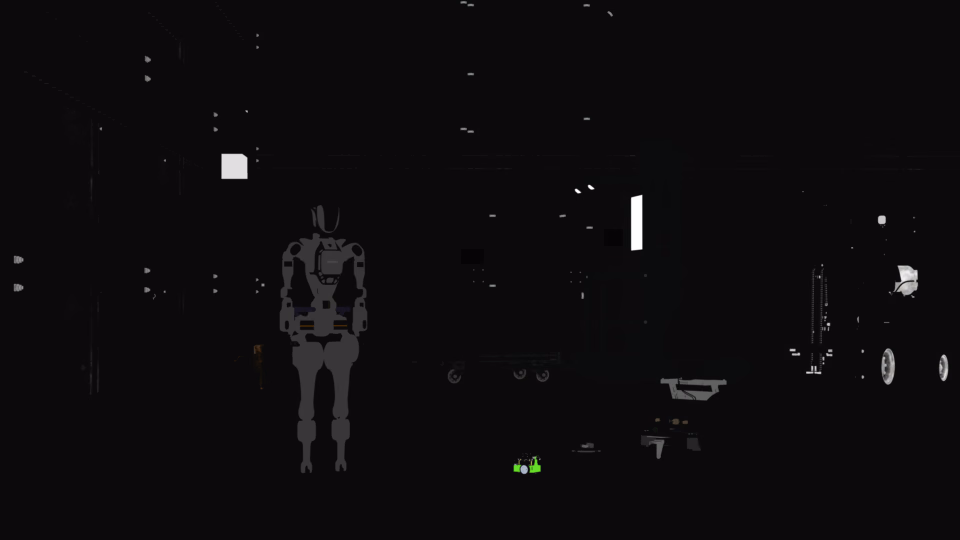

PtReflectionFilter	RGBA	float16	(H, W, 4)
Reflection material color filter in RGB. Python/C pixel decoding.
PtRefractionFilter	RGBA	float16	(H, W, 4)
Transmission material color filter in RGB. Python/C pixel decoding.

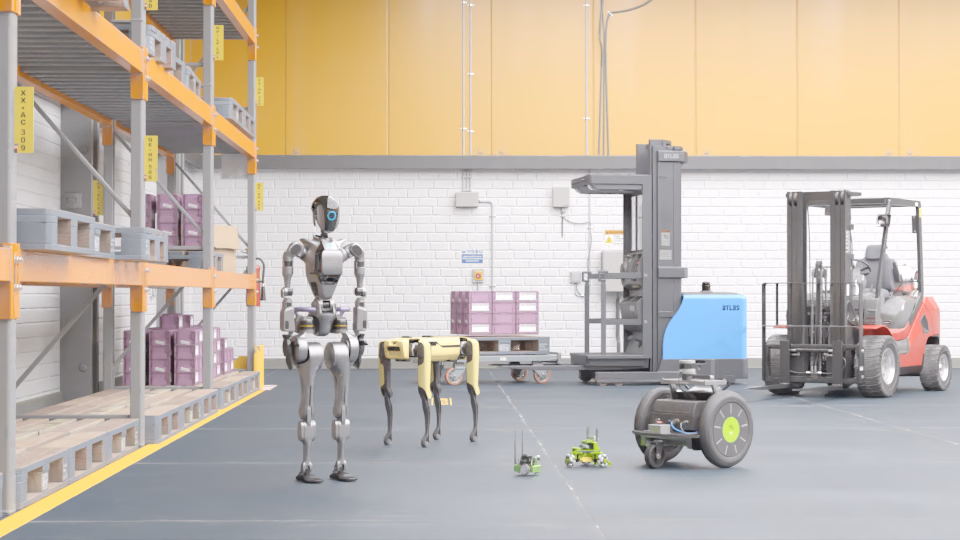

PtLuminance	RGBA	float32	(H, W, 4)
RGB radiance in RGB rendering; spectral rendering stores CIE Y in each RGB channel. The preview log-compresses values and scales them to the 99th percentile. Python/C pixel decoding.

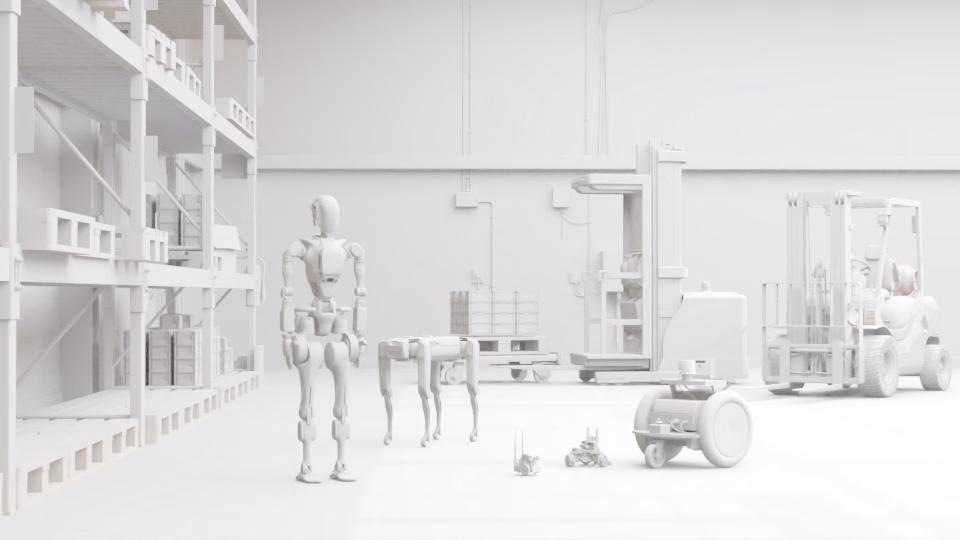

PtIlluminance	RGBA	float32	(H, W, 4)
RGB irradiance at the first surface, evaluated with a unit Lambertian material. The preview log-compresses values and scales them to the 99th percentile. Python/C pixel decoding.
PtMotion	RGBA	float32	(H, W, 4)
XY screen displacement in pixels; Z change in view-space depth. W is 1. Motion is captured after moving the robots. Python/C pixel decoding.
PtMultiMatte0 – PtMultiMatte7	RGBA	float16	(H, W, 4)
Each RGBA component holds independent coverage for a selected geometry or material ID, from 0 to 1. Configure omni:rtx:pt:multimatte:rId, gId, bId, aId and their rIsMat, gIsMat, bIsMat, aIsMat flags on each RenderVar. Omitted IDs and -1 disable components. Requests determine allocation, up to eight outputs / 32 masks. Geometry IDs use primvars:multimatte_id; material IDs use multimatte_id on the material. The preview combines RGB slices of outputs 0–3; the grey strip shows their full-frame alpha masks. Labels list RGBA selectors (G = geometry, M = material). See Python: Semantic Segmentation and Python/C pixel decoding.

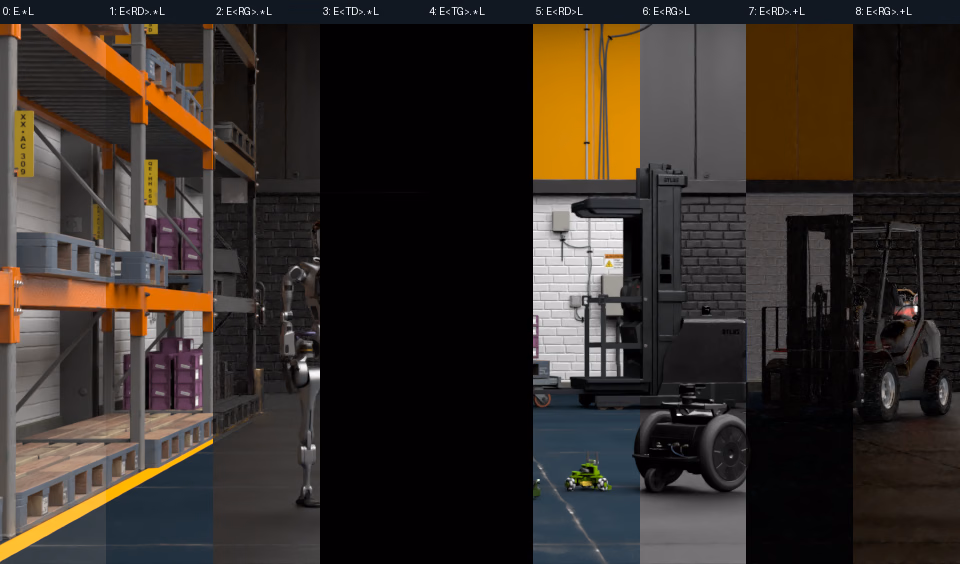

Light Path Expressions	RGBA	float16	(H, W, 4)
Up to nine expression outputs, authored with sourceType = "lpe" and the expression as sourceName. The preview combines vertical slices from slots 0–8, left to right: E.*L, E<RD>.*L, E<RG>.*L, E<TD>.*L, E<TG>.*L, E<RD>L, E<RG>L, E<RD>.+L, E<RG>.+L. See Light Path Expressions and Python/C pixel decoding.
BumpNormal	RGBA	float32	(H, W, 4)
World-space shading normal, including material bump, in XYZ. Python/C pixel decoding.
BumpNormalResearch	RGBA	float16	(H, W, 4)
Half-precision shading-normal diagnostic. Python/C pixel decoding.
DiffuseAlbedo	RGBA	uint8	(H, W, 4)
Diffuse material RGB color, stored as UNORM bytes. Python/C pixel decoding.

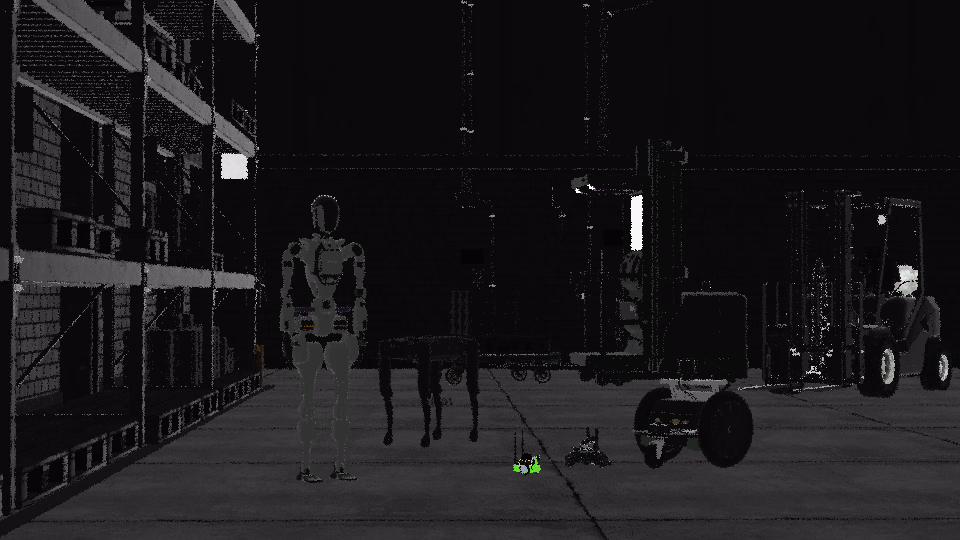

SpecularAlbedo	RGBA	uint8	(H, W, 4)
Specular material RGB color, stored as UNORM bytes. Python/C pixel decoding.
DepthLinearized	Scalar	float32	(H, W, 1)
Linear view-space depth in scene units. Ignore the float32 maximum-value miss sentinel. Python/C pixel decoding.

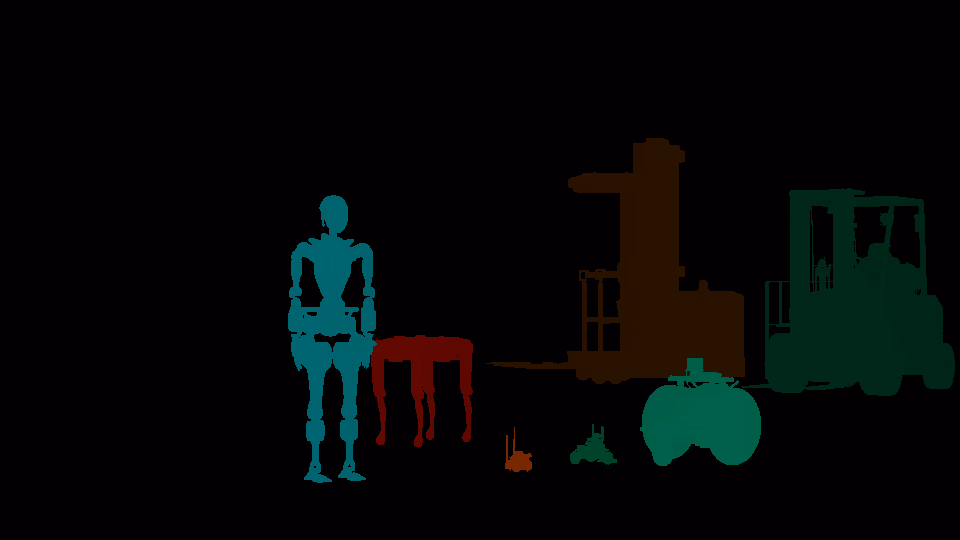

Motion2dXYZ	RGBA	float32	(H, W, 4)
XY screen displacement in pixels and Z view-depth change; W is 1. Python/C pixel decoding.
Motion2dDilated	XY	float32	(H, W, 2)
Dilated screen displacement in pixels, in XY. Python/C pixel decoding.

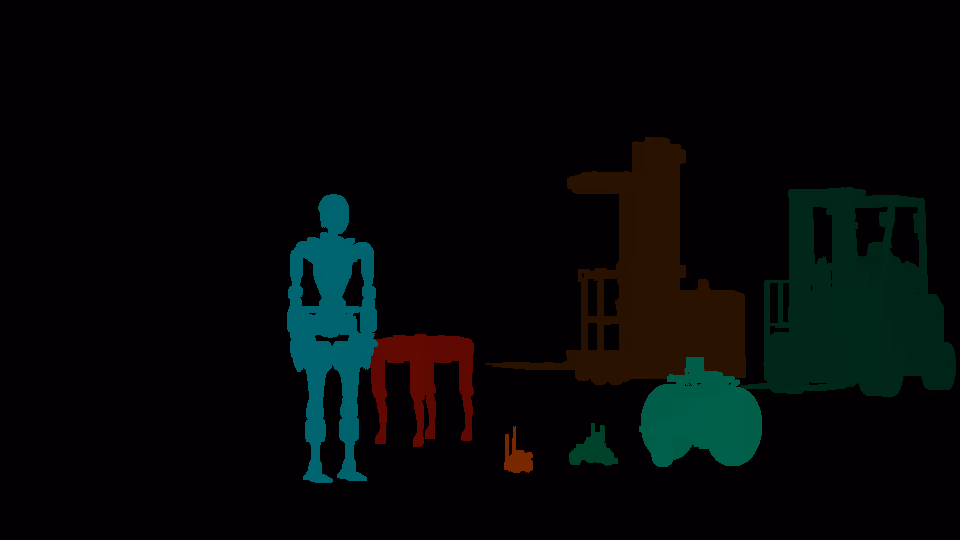

Motion2dXYZDilated	RGBA	float32	(H, W, 4)
Dilated XY screen displacement in pixels and Z view-depth change; W is 1. Python/C pixel decoding.

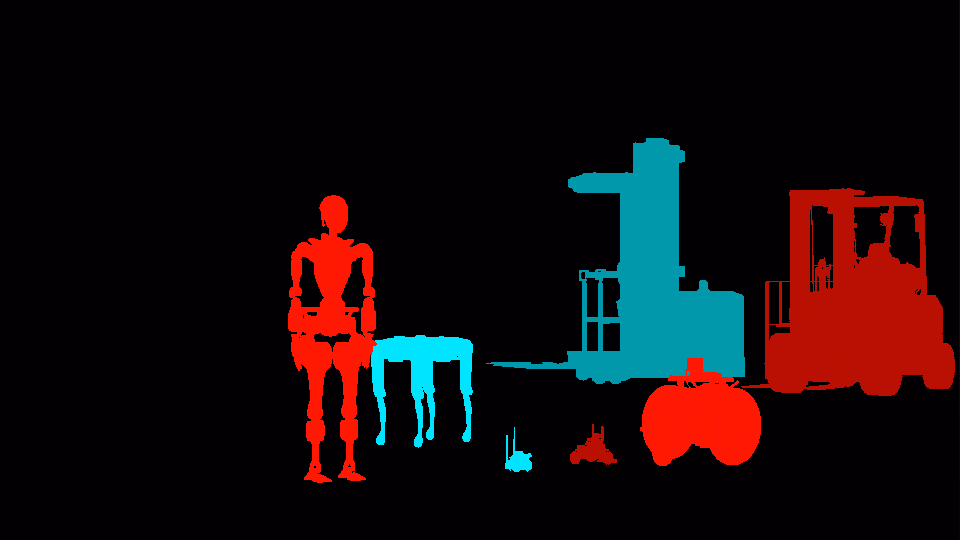

MotionWorld	RGBA	float32	(H, W, 4)
World-space displacement in XYZ, in scene units; W is 1. The preview shows XY direction and scales magnitude to the captured 99th percentile. Python/C pixel decoding.
EmissionAndForegroundMask	RGBA	float16	(H, W, 4)
RGB surface emission and W foreground mask. Python/C pixel decoding.

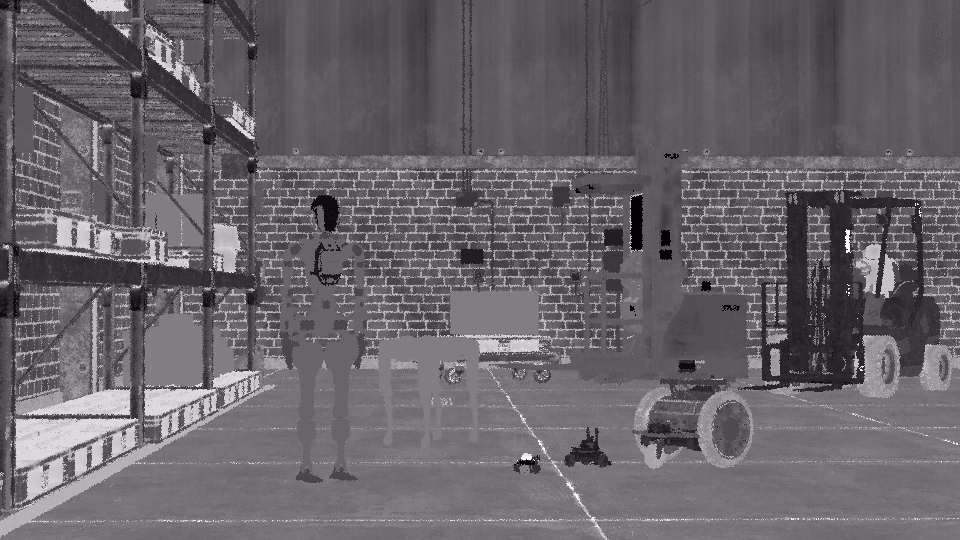

Roughness	RGBA	uint8	(H, W, 4)
Material roughness in the blue channel, stored as a UNORM byte. The preview displays blue as grayscale. Python/C pixel decoding.
DisocclusionMask	Scalar	float16	(H, W, 1)
Disocclusion mask in [0, 1]. The preview displays it directly as grayscale. Python/C pixel decoding.

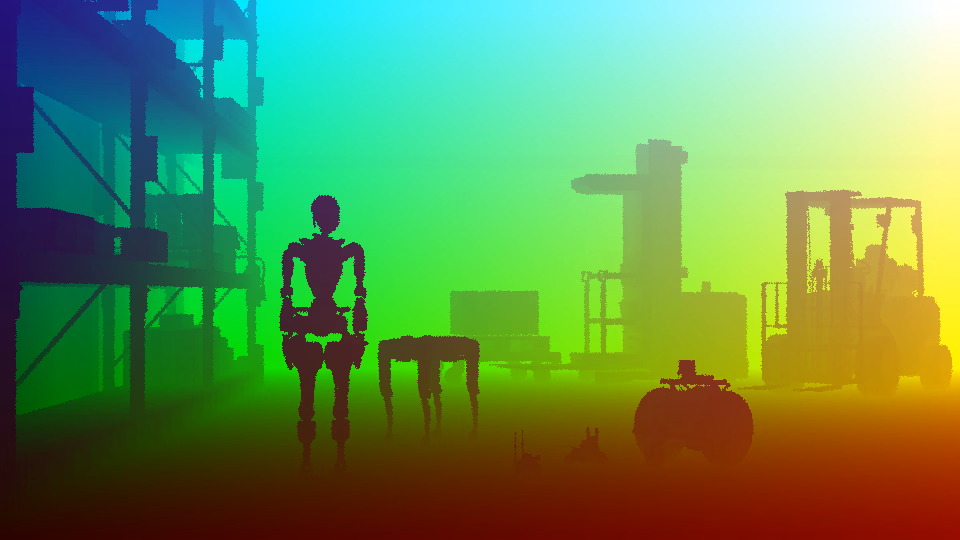

ViewspacePosition	RGBA	float32	(H, W, 4)
View-space position in XYZ, in scene units. The preview rescales each coordinate. Python/C pixel decoding.

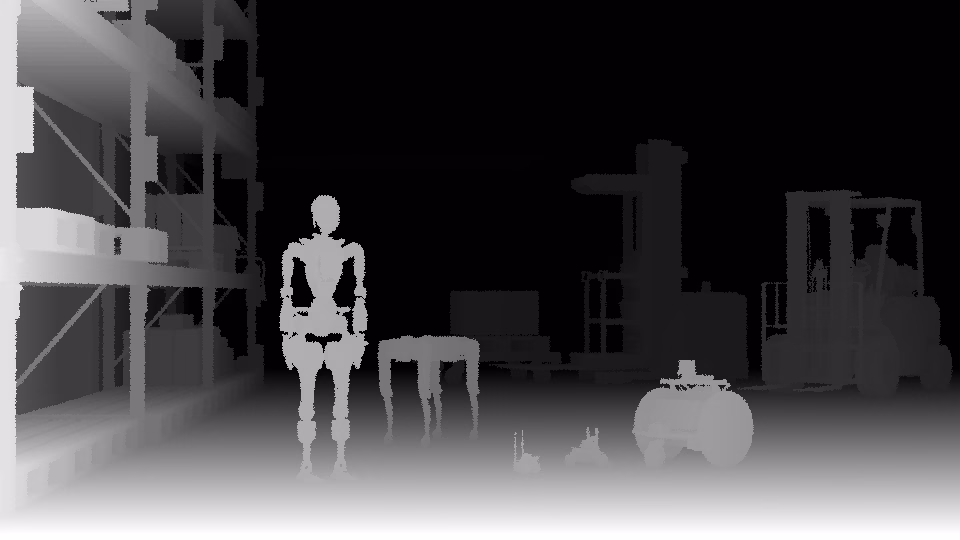

XRDepth	Scalar	float32	(H, W, 1)
Normalized reversed clip depth for XR composition. Python/C pixel decoding.
NormalSD	XYZA	float32	(H, W, 4)
World-space surface normals. Python/C decoding.
DepthSD	Z	float32	(H, W, 1)
Deprecated. Unitless raster depth mapped from 1 (near clip plane) to 0 (far clip plane). Use DistanceToImagePlaneSD or DistanceToCameraSD instead. Python/C decoding.

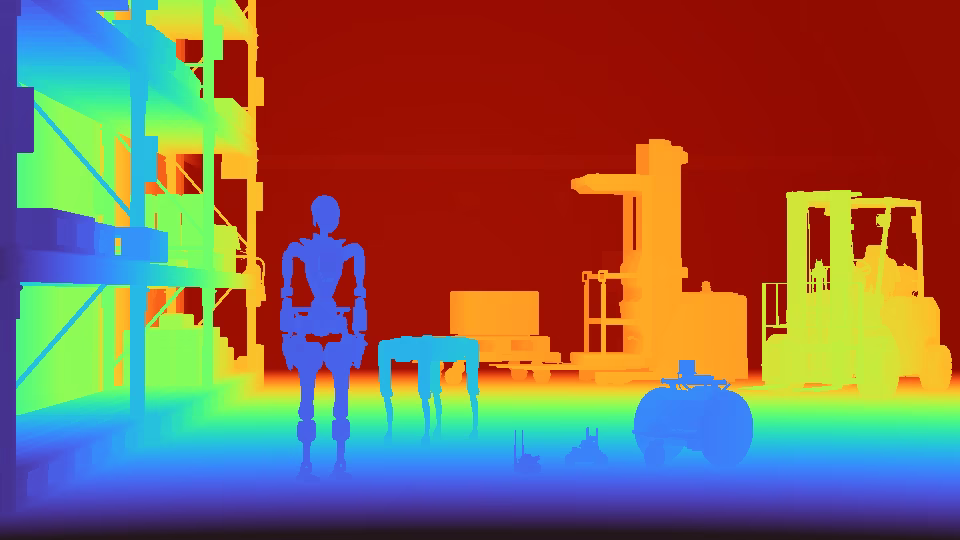

DistanceToCameraSD	Z	float32	(H, W, 1)
Euclidean distance from the camera origin to each surface point, in meters. Python/C decoding.
DistanceToImagePlaneSD	Z	float32	(H, W, 1)
Perpendicular distance from the image plane to each surface point, in meters. Python/C decoding.
DiffuseAlbedoSD	RGBA	uint8	(H, W, 4)
Diffuse surface albedo (base color without lighting). Python/C decoding.
Camera3dPositionSD	XYZA	float32	(H, W, 4)
Camera-space 3D position of each visible surface point, in scene units. Python/C decoding.
TargetMotionSD	XYZW	float32	(H, W, 4)
Backward screen-space displacement in pixels: add XY to the current pixel position to find its previous-frame position. Z is the previous-frame occlusion flag; W indicates a geometric hit within the occlusion-check range. Invalid correspondences are (-1, -1, -1, -1). Python/C decoding.
SemanticSegmentation	ID	uint32	(H, W, 1)
Per-pixel semantic ID. Decode SemanticIdMap to map each integer ID to its semantic label string. Python/C decoding.
SemanticIdMap	IdentifierMap	uint8	Buffer
Packed metadata buffer mapping semantic IDs to label strings. Each entry contains uint32 id[4], label length, and label offset, followed by packed label bytes and a trailing entry count. Python/C decoding.
SemanticInstanceSegmentation	ID[4]	uint32	(H, W, 4)
Stable ID of the semantic prim associated with each pixel. Maintain a prim-path lookup from StableIdMapDeltas. Background is all zeros; unlabelled hits are (0, 0, 0, 1). Python/C decoding.
StableIdSegmentation	ID[4]	uint32	(H, W, 4)
Stable geometry-instance ID per pixel. The four words form one identifier, including its subset component. Background is all zeros. Python/C decoding.
NonStableInstanceSegmentation	ID	uint32	(H, W, 1)
Runtime semantic-instance index plus 2 per pixel. Zero is background; 1 is an unlabelled hit. These indices can change as scene contents change. Python/C decoding.

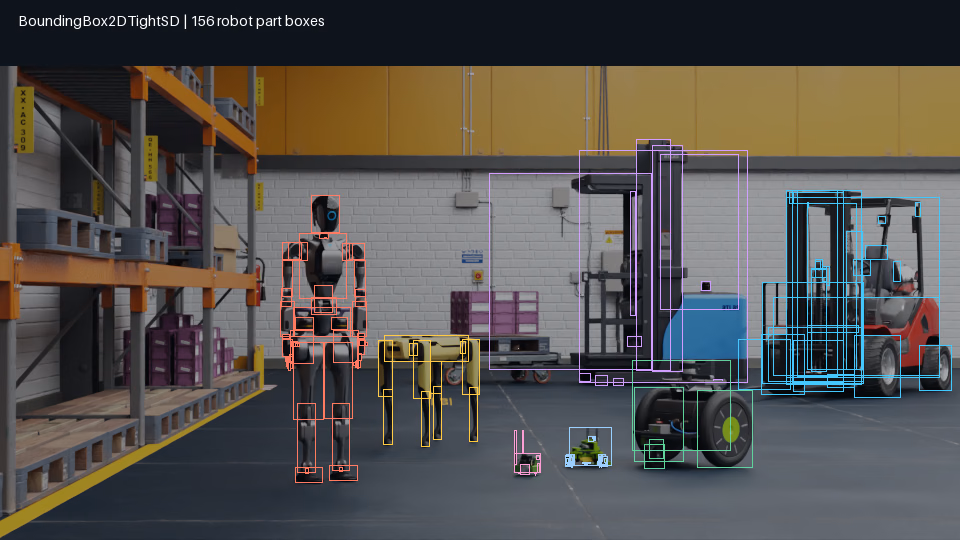

BoundingBox2DTightSD	BoundingBox2DValues	uint8	(B,)
Per-instance visible-pixel bounds. Each 24-byte record contains instance/tile IDs and integer pixel bounds. Reject records with inverted bounds. Python/C decoding.
BoundingBox2DLooseSD	BoundingBox2DValues	uint8	(B,)
Per-instance 2D bounds including occluded geometry. Same 24-byte layout as tight boxes. Reject records with inverted bounds. Python/C decoding.
BoundingBox3DSD	BoundingBox3DValues	uint8	(B,)
Per-instance local 3D extents and a transform to world space. Each record is 96 bytes. Python/C decoding.

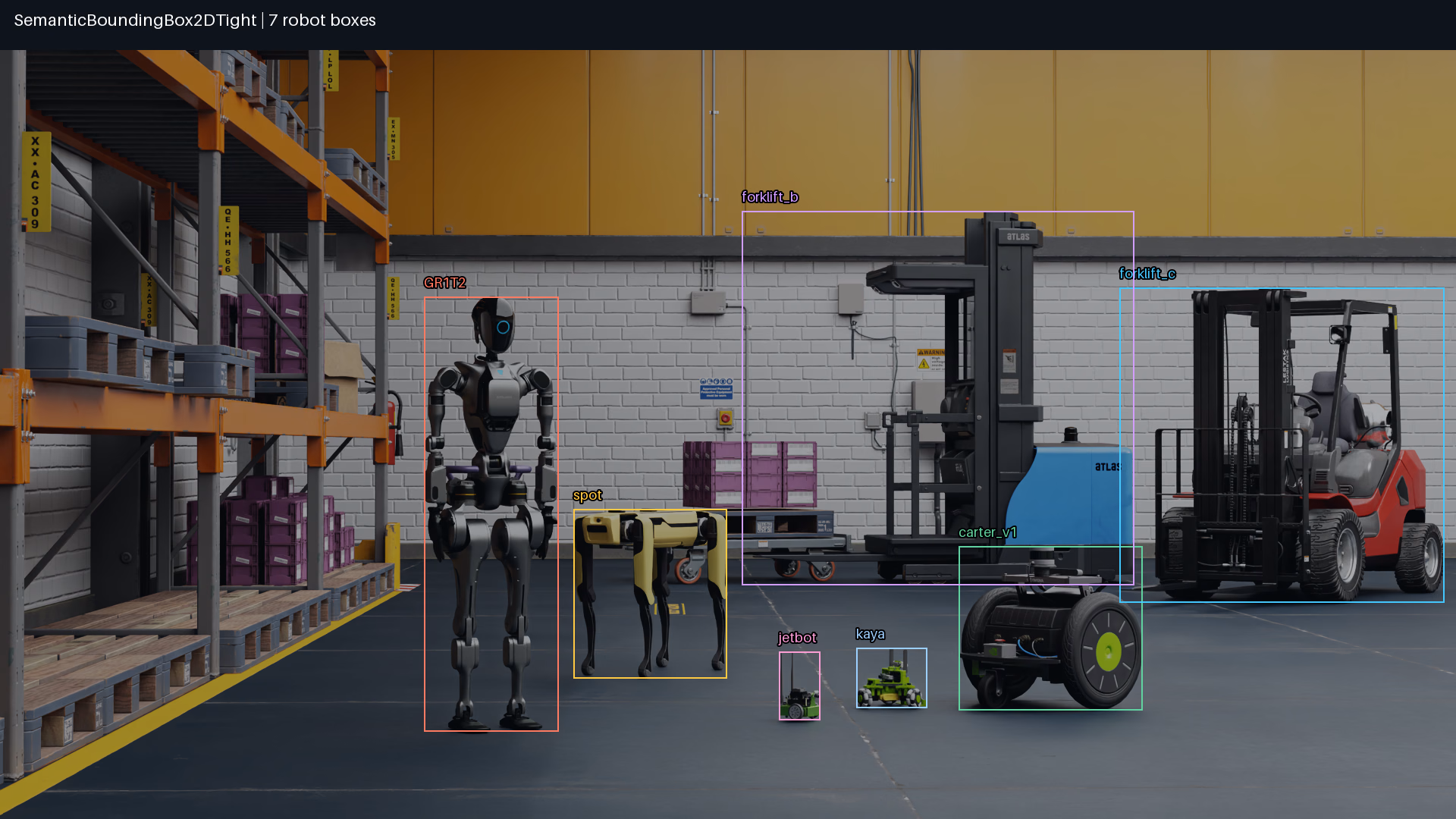

SemanticBoundingBox2DTight	SemanticBoundingBox2DValues	uint8	(B,)
Visible-pixel bounds grouped by semantic instance. Each 48-byte record contains stable instance and semantic IDs plus pixel bounds. Read the trailing valid-record count. Python/C decoding.
SemanticBoundingBox2DLoose	SemanticBoundingBox2DValues	uint8	(B,)
2D bounds including occluded geometry, grouped by semantic instance. Same layout and trailing count as semantic tight boxes. Python/C decoding.
SemanticBoundingBox3D	SemanticBoundingBox3DValues	uint8	(B,)
Local 3D extents and world transform grouped by semantic instance. Each record is 120 bytes; read the trailing valid-record count. Python/C decoding.

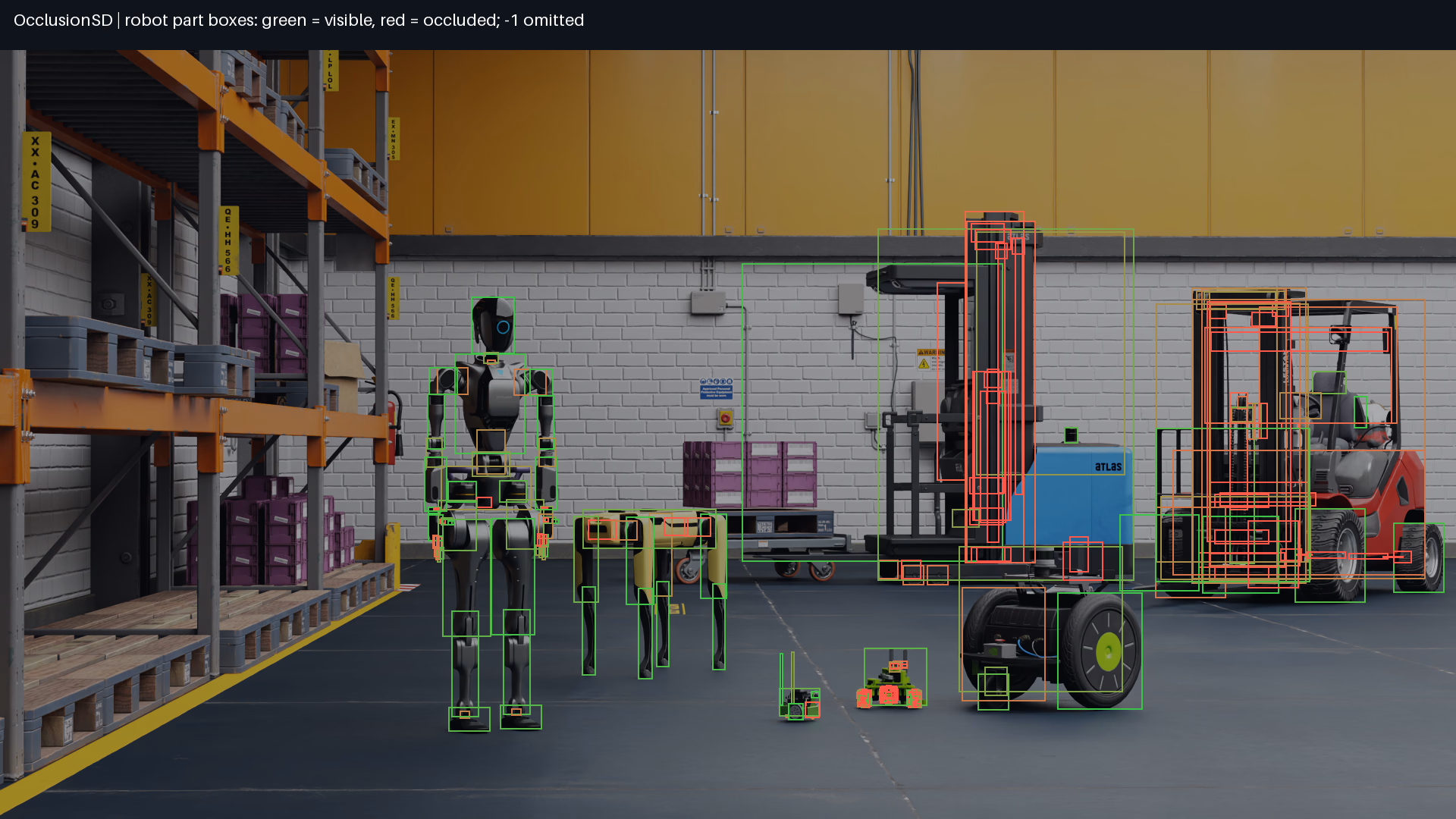

OcclusionSD	OcclusionValues	uint8	(B,)
Per-instance occluded fraction in [0, 1]. A ratio of -1 means no sampled hits. Each 12-byte record contains instance/tile IDs and a float32 ratio. Python/C decoding.

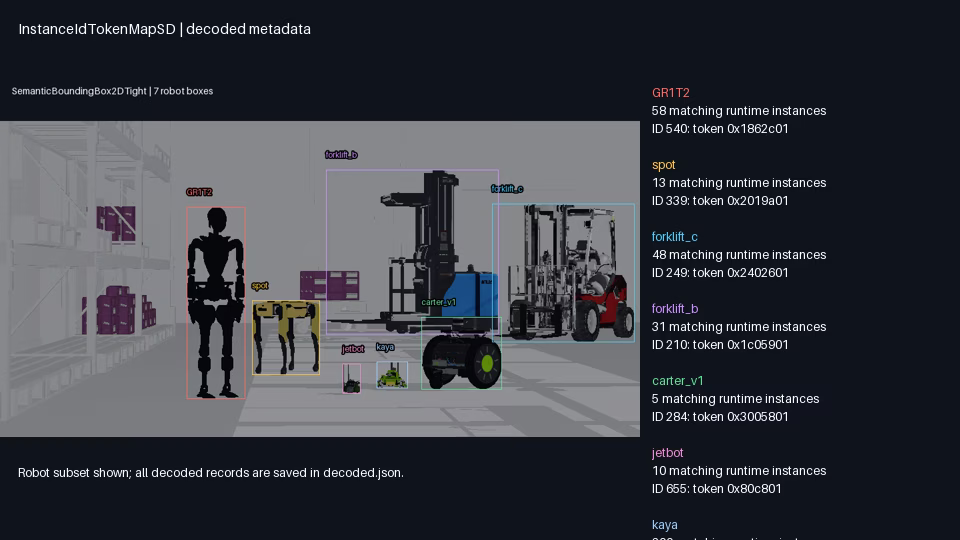

InstanceIdTokenMapSD	InstanceIdToken	uint8	(B,)
Runtime instance IDs mapped to opaque prim handles, prototype indices and instancer indices. A 24-byte header precedes 24-byte records. Python/C decoding.
InstanceMap	uint32 array	uint8	(B,)
Runtime-instance-to-semantic-instance lookup. Reinterpret the byte buffer as uint32 indices; 0xFFFFFFFF means no semantic parent. Indices address semantic-instance records, not SemanticIdMap label IDs. Python/C decoding.
StableIdMapDeltas	IdentifierMap	uint8	(B,)
New stable-ID/prim-path entries since the last generated delta. The first frame includes scene-creation entries. An unchanged scene returns a four-byte zero count. Python/C decoding.

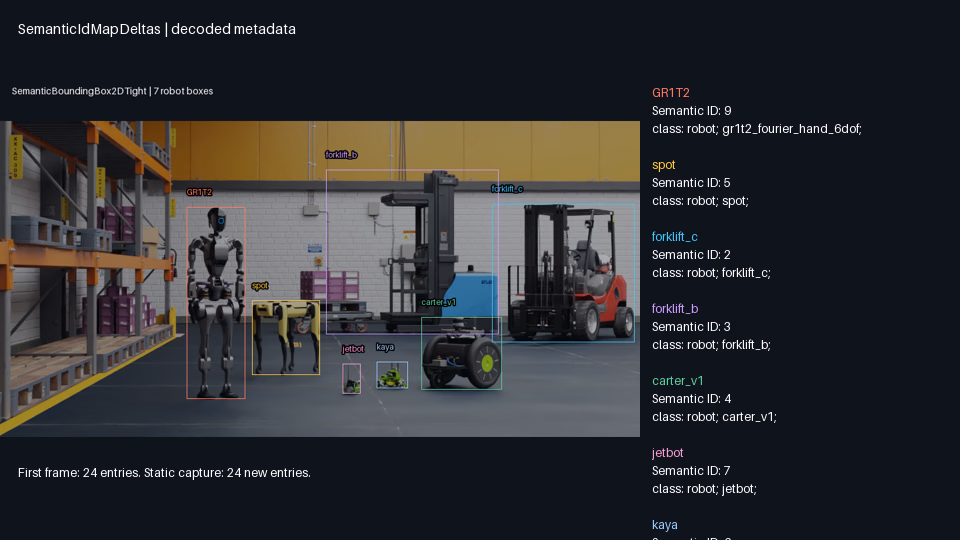

SemanticIdMapDeltas	IdentifierMap	uint8	(B,)
New semantic-ID/label entries since the last generated delta. Same packed layout as SemanticIdMap. An unchanged scene returns a four-byte zero count. Python/C decoding.

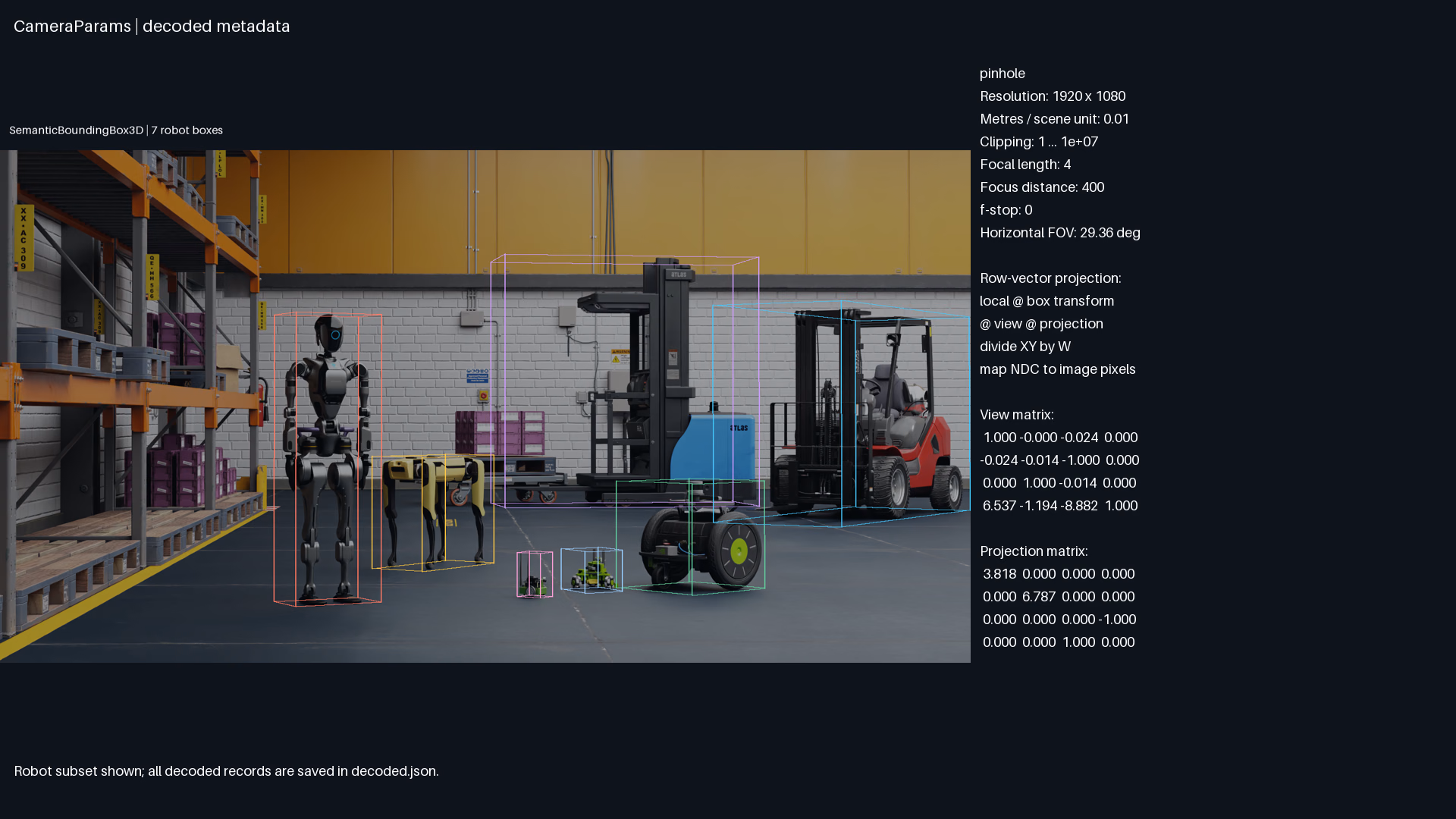

CameraParams	CameraParams	uint8	(260,)
View and projection matrices, scene-unit scale, resolution, clipping range, camera-model name and lens parameters. Python/C decoding.
StableIdSemanticIdMap	ID pairs	uint8	(B,)
Stable semantic-instance IDs mapped to semantic label IDs. Each 32-byte record contains uint32 stableId[4] followed by uint32 semanticId[4]. No trailing count. Python/C decoding.

The LPE row uses expression source names with sourceType = "lpe". Other rows use the default raw source type.

Minimal

sourceName	Format	Type	Shape	Example

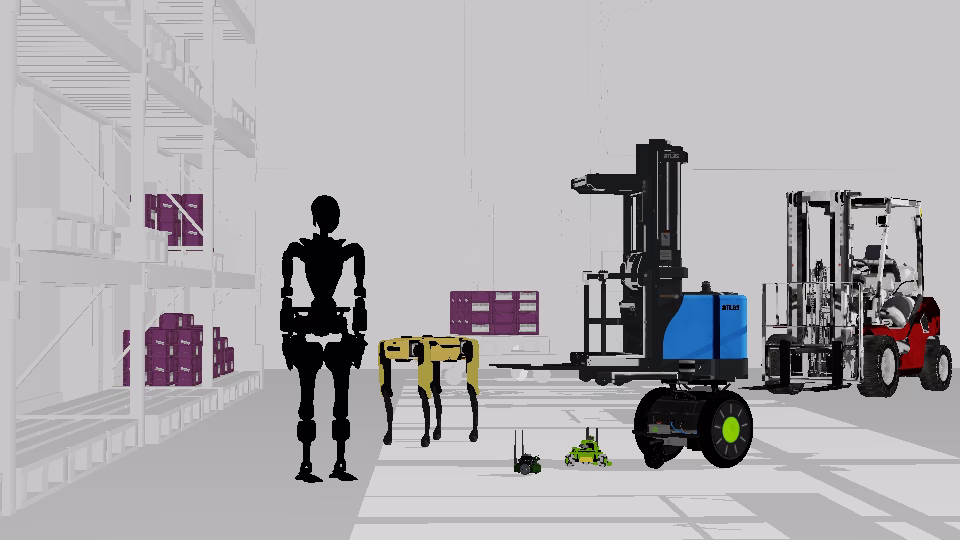

LdrColor	RGBA	uint8	(H, W, 4)
Simple-shaded color in sRGB space. Standard final image output suitable for display or saving as PNG/JPEG.
NormalSD	XYZA	float32	(H, W, 4)
World-space surface normals. Python/C decoding.
DepthSD	Z	float32	(H, W, 1)
Deprecated. Unitless raster depth mapped from 1 (near clip plane) to 0 (far clip plane). Use DistanceToImagePlaneSD or DistanceToCameraSD instead. Python/C decoding.

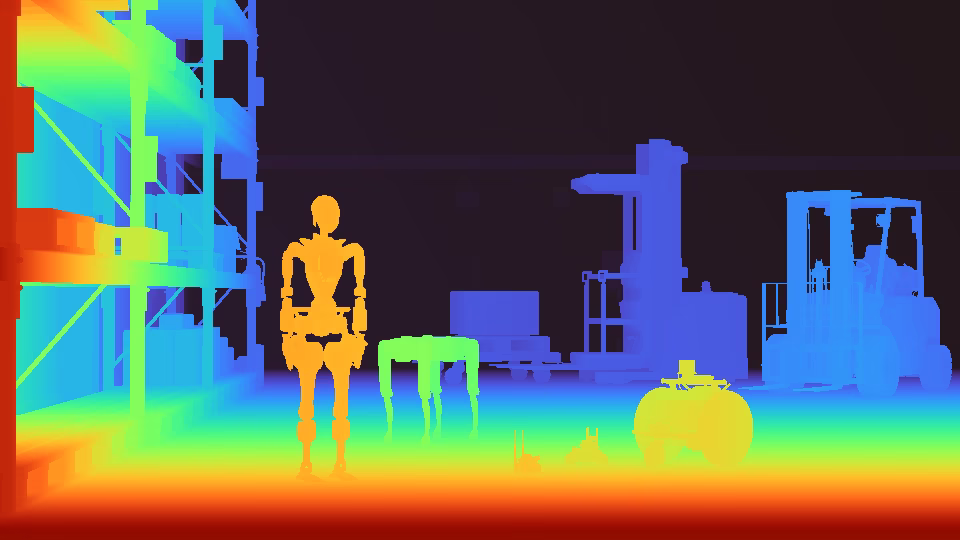

Depth / XRDepth	Z	float32	(H, W, 1)
Unitless reversed clip depth, from 1 (near clip plane) to 0 (far clip plane). Both names expose the same depth values as DepthSD in Minimal mode. Python/C decoding.
DistanceToCameraSD	Z	float32	(H, W, 1)
Euclidean distance from the camera origin to each surface point, in meters. Python/C decoding.
DistanceToImagePlaneSD	Z	float32	(H, W, 1)
Perpendicular distance from the image plane to each surface point, in meters. Python/C decoding.
DiffuseAlbedoSD	RGBA	uint8	(H, W, 4)
Diffuse surface albedo (base color without lighting). Python/C decoding.
Camera3dPositionSD	XYZA	float32	(H, W, 4)
Camera-space 3D position of each visible surface point, in scene units. Python/C decoding.
TargetMotionSD	XYZW	float32	(H, W, 4)
Backward screen-space displacement in pixels: add XY to the current pixel position to find its previous-frame position. Z is the previous-frame occlusion flag; W indicates a geometric hit within the occlusion-check range. Invalid correspondences are (-1, -1, -1, -1). Python/C decoding.
SemanticSegmentation	ID	uint32	(H, W, 1)
Per-pixel semantic ID. Decode SemanticIdMap to map each integer ID to its semantic label string. Python/C decoding.
SemanticIdMap	IdentifierMap	uint8	Buffer
Packed metadata buffer mapping semantic IDs to label strings. Each entry contains uint32 id[4], label length, and label offset, followed by packed label bytes and a trailing entry count. Python/C decoding.
SemanticInstanceSegmentation	ID[4]	uint32	(H, W, 4)
Stable ID of the semantic prim associated with each pixel. Maintain a prim-path lookup from StableIdMapDeltas. Background is all zeros; unlabelled hits are (0, 0, 0, 1). Python/C decoding.
StableIdSegmentation	ID[4]	uint32	(H, W, 4)
Stable geometry-instance ID per pixel. The four words form one identifier, including its subset component. Background is all zeros. Python/C decoding.
NonStableInstanceSegmentation	ID	uint32	(H, W, 1)
Runtime semantic-instance index plus 2 per pixel. Zero is background; 1 is an unlabelled hit. These indices can change as scene contents change. Python/C decoding.
BoundingBox2DTightSD	BoundingBox2DValues	uint8	(B,)
Per-instance visible-pixel bounds. Each 24-byte record contains instance/tile IDs and integer pixel bounds. Reject records with inverted bounds. Python/C decoding.
BoundingBox2DLooseSD	BoundingBox2DValues	uint8	(B,)
Per-instance 2D bounds including occluded geometry. Same 24-byte layout as tight boxes. Reject records with inverted bounds. Python/C decoding.
BoundingBox3DSD	BoundingBox3DValues	uint8	(B,)
Per-instance local 3D extents and a transform to world space. Each record is 96 bytes. Python/C decoding.
SemanticBoundingBox2DTight	SemanticBoundingBox2DValues	uint8	(B,)
Visible-pixel bounds grouped by semantic instance. Each 48-byte record contains stable instance and semantic IDs plus pixel bounds. Read the trailing valid-record count. Python/C decoding.
SemanticBoundingBox2DLoose	SemanticBoundingBox2DValues	uint8	(B,)
2D bounds including occluded geometry, grouped by semantic instance. Same layout and trailing count as semantic tight boxes. Python/C decoding.
SemanticBoundingBox3D	SemanticBoundingBox3DValues	uint8	(B,)
Local 3D extents and world transform grouped by semantic instance. Each record is 120 bytes; read the trailing valid-record count. Python/C decoding.
OcclusionSD	OcclusionValues	uint8	(B,)
Per-instance occluded fraction in [0, 1]. A ratio of -1 means no sampled hits. Each 12-byte record contains instance/tile IDs and a float32 ratio. Python/C decoding.
InstanceIdTokenMapSD	InstanceIdToken	uint8	(B,)
Runtime instance IDs mapped to opaque prim handles, prototype indices and instancer indices. A 24-byte header precedes 24-byte records. Python/C decoding.
InstanceMap	uint32 array	uint8	(B,)
Runtime-instance-to-semantic-instance lookup. Reinterpret the byte buffer as uint32 indices; 0xFFFFFFFF means no semantic parent. Indices address semantic-instance records, not SemanticIdMap label IDs. Python/C decoding.
StableIdMap	IdentifierMap	uint8	(B,)
Packed metadata mapping stable IDs to prim-path strings. Each entry contains uint32 id[4], label length and label offset, followed by packed strings and a trailing entry count. Python/C decoding.
StableIdMapDeltas	IdentifierMap	uint8	(B,)
New stable-ID/prim-path entries since the last generated delta. The first frame includes scene-creation entries. An unchanged scene returns a four-byte zero count. Python/C decoding.
SemanticIdMapDeltas	IdentifierMap	uint8	(B,)
New semantic-ID/label entries since the last generated delta. Same packed layout as SemanticIdMap. An unchanged scene returns a four-byte zero count. Python/C decoding.
CameraParams	CameraParams	uint8	(260,)
View and projection matrices, scene-unit scale, resolution, clipping range, camera-model name and lens parameters. Python/C decoding.
StableIdSemanticIdMap	ID pairs	uint8	(B,)
Stable semantic-instance IDs mapped to semantic label IDs. Each 32-byte record contains uint32 stableId[4] followed by uint32 semanticId[4]. No trailing count. Python/C decoding.

See Decoding camera outputs for tested Python and C API decoding examples.

Debug Views

Debug views replace the RenderProduct’s beauty output with diagnostic geometry data or heat maps. G-buffer views are available in Real-Time Path-Tracing and Path Tracing. These views are not available in Minimal mode. Author the target on the RenderProduct using the generated schema name:

string omni:rtx:debug:view:target = "normal"

Token	Description	Example
depth	G-buffer depth multiplied by 1000 and displayed as grayscale.
worldPosition	World-space position wrapped into a repeating diagnostic color.

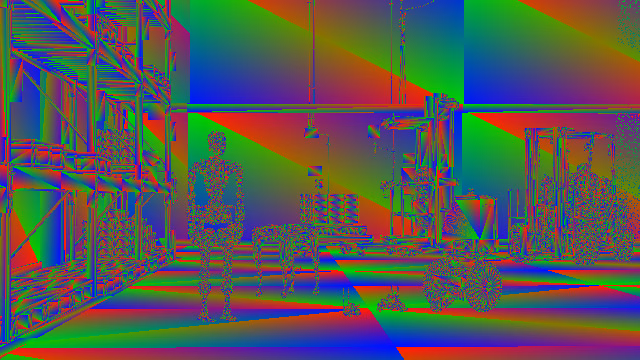

barycentrics	Triangle barycentric coordinates.

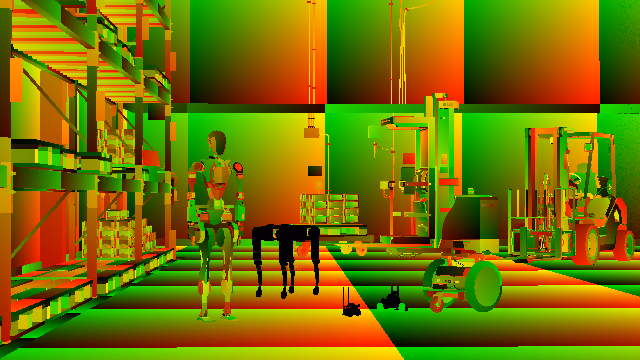

texcoord0	Fractional values from the first texture-coordinate set.

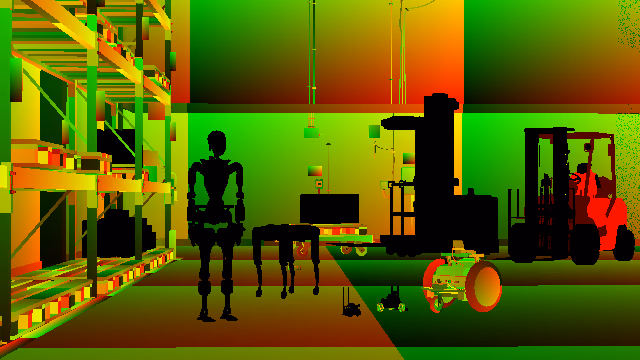

texcoord1	Fractional values from the second texture-coordinate set.
triangleNormal	Geometric triangle normal encoded into the 0–1 color range.
normal	Interpolated shading normal encoded into the 0–1 color range.

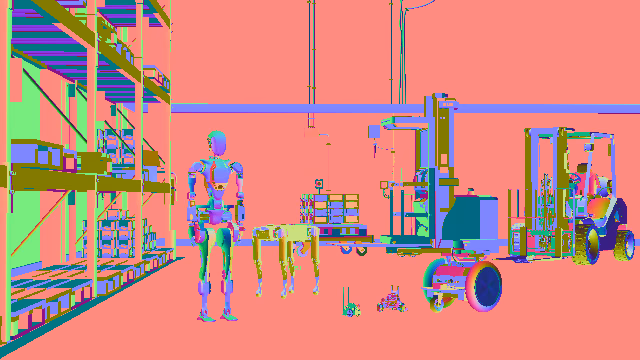

tangentu	First shading tangent encoded into the 0–1 color range.

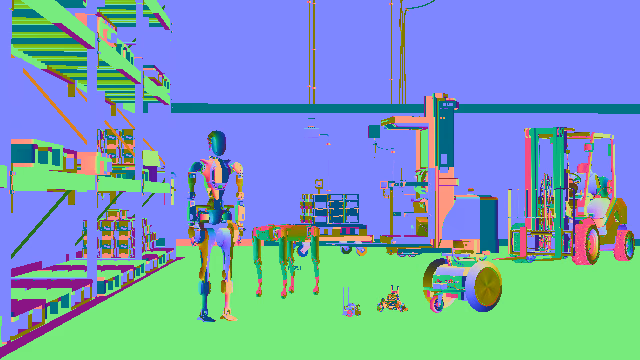

tangentv	Second shading tangent encoded into the 0–1 color range.
instanceId	Per-pixel instance identifier color.
stableId	Per-pixel stable identifier color.
nonVisualMaterialId	Per-pixel non-visual material identifier color.
targetMotion	Per-pixel world-space motion, shown with the robots moving.
targetMotionArrows	World-space motion visualized as arrows, shown with the robots moving.

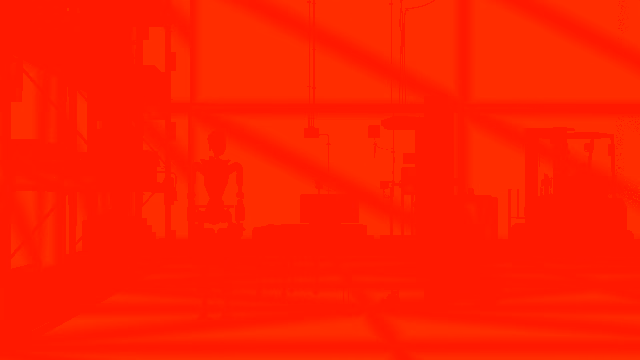

wire	Triangle edges derived from barycentric coordinates.

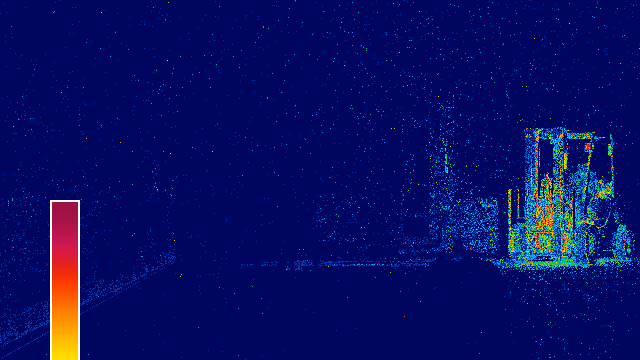

anyHitCountHeatMap	Color-mapped count of material any-hit calls associated with each pixel, including rejected candidates. Only supported in RealTimePathTracing.

Debug views do not create dedicated RenderVars. They replace the beauty destination:

Requested color RenderVars	Debug-view destination
LdrColor and HdrColor	HdrColor. LdrColor remains the regular beauty image.
HdrColor only	HdrColor.
LdrColor only	LdrColor.

The debug-view shader has already converted its diagnostic values to display colors. Applying HDR tonemapping changes the diagnostic colors. RenderVars such as NormalSD and DepthSD remain independent sensor outputs and are not changed by this setting.

See Python: Debug Views for a runnable example that renders and displays all of these views.
