Ad-Hoc Composition Arc Addition Refinement#

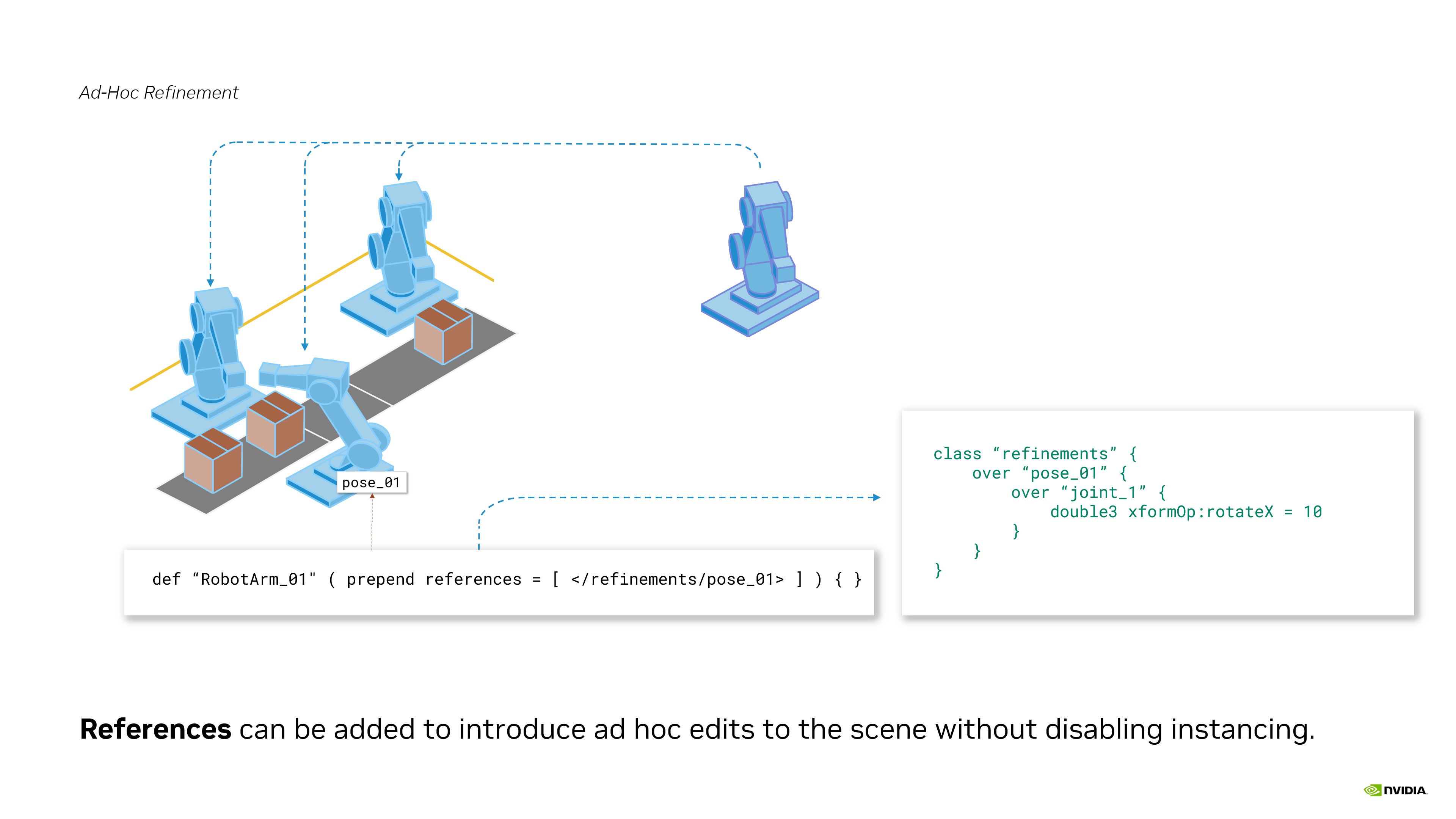

Composition arcs can be added on the local layer stack to introduce ad hoc edits to the scene without disabling instancing.

Exercise: Ad-Hoc Composition Arc Addition Refinement#

In this exercise, we’ll simulate a box that was damaged in the warehouse. We’ll add a “Damaged” stamp on a couple of boxes box while maintaining instancing enabled for them.

  1. Open instancing_exercises/src_assets/Assets/Utilities/MiscDecals/MiscDecals.usd in VSCode to inspect the USDA.

/_MixinOverrides/DamagedStamp is a speculative over (override) that introduces a new decal Mesh and Material for the “Damaged” stamp. This is a bit hard-coded to position the stamp perfectly on the “CubeBox_A04_26cm” asset, but it could be designed to be used more modularly so it could be applied to all sort of assets. We’re going to use this layer as a reference to refine our boxes as an additional ad-hoc composition arc.

  1. Run in the terminal:

.\scripts\usdview.bat .\instancing_exercises\ex_sg_add_arc_refine\Scenario.usd --camera ExCam_01

Tip

Click Camera > Select Camera > ExCam_01 if you ever lose your place in the scene or want to get back to this camera position.

  1. Click Window > Interpreter to open the Interpreter window.

  2. Run the following code in the Interpreter window:

1from pathlib import Path
2stage = usdviewApi.stage
3box1 = stage.GetPrimAtPath("/World/Warehouse/Rack_BoxPallet_A01_01/BoxPallet_A01_03/CubeBox_A04_26cm_18")
4box2 = stage.GetPrimAtPath("/World/Warehouse/Rack_BoxPallet_A01_01/BoxPallet_A01_03/CubeBox_A04_26cm_17")
5stage_path = Path(stage.GetRootLayer().identifier)
6decals_path = stage_path.parent.parent / "src_assets" / "Assets" / "Utilities" / "MiscDecals" / "MiscDecals.usd"
7box1.GetReferences().AddReference(str(decals_path), "/_MixinOverrides/DamagedStamp")
8box2.GetReferences().AddReference(str(decals_path), "/_MixinOverrides/DamagedStamp")

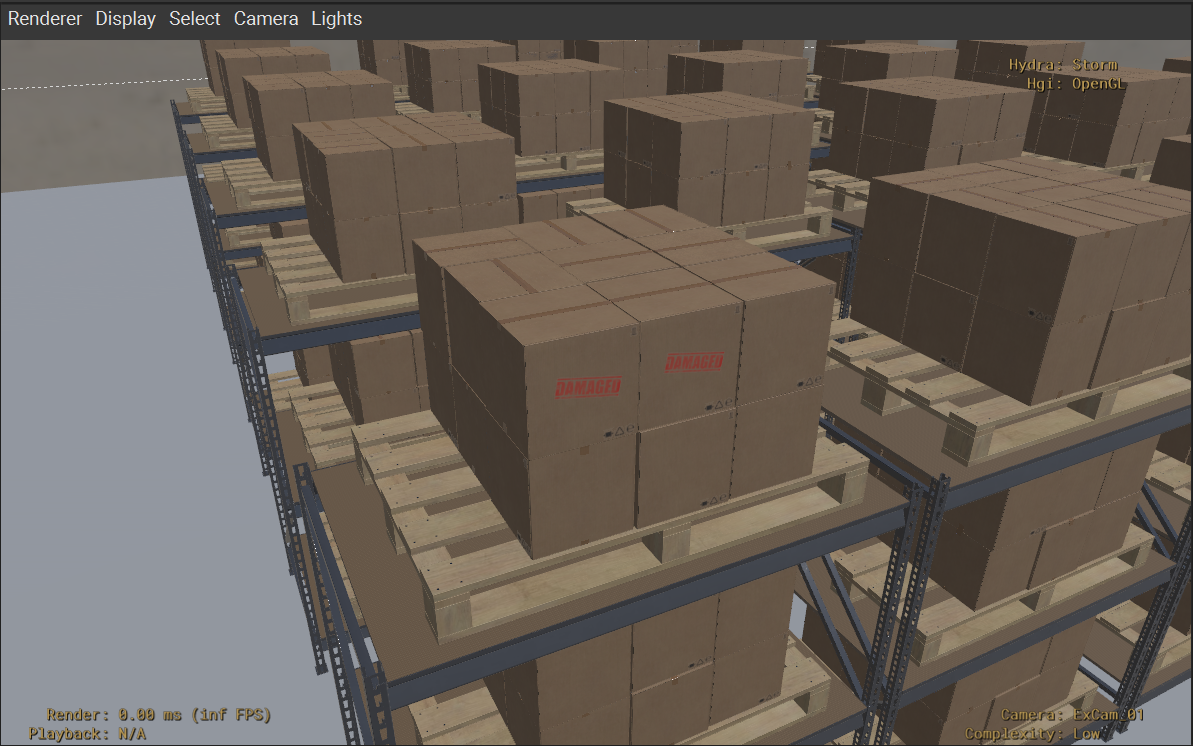

Notice how the top first and second box on the pallet closest to the camera now show a stamp that says, “Damaged”.

  1. Run the following code in the Interpreter window:

1from pprint import pprint
2stats = UsdUtils.ComputeUsdStageStats(usdviewApi.stage)
3pprint(stats)

This prints a breakdown of the prim and instancing stats. Here’s a summarized comparison to the basic instancing scenario:

Scenario

Prims

Instances

Prototypes

Instancing

1711

1450

3

Ad-hoc Arc Refinement

1741

1450

4

Because prototypes are built off of composition arcs, introducing a new composition arc to an instance triggers the creation of a new prototype with the modifications that we defined in the new arc.

  1. Close usdview.
