Exercise: Experimenting With Encapsulation and Refinement#

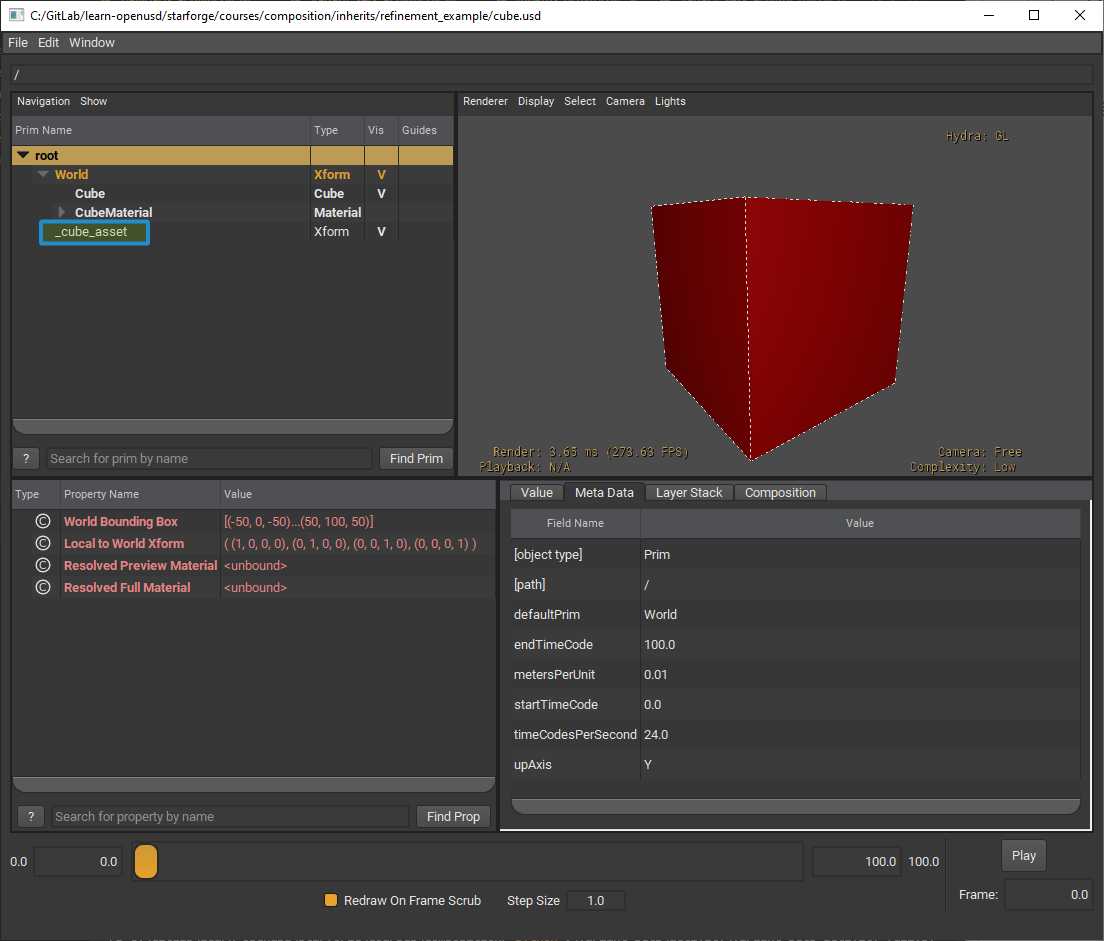

For this example, we’ll be using cube.usd that inherits from a _cube_asset class prim. The following files can be found in composition_arcs/inherits/refinement_example.

We also have cube_pyramid.usd which has a _local_cube class prim. Each cube inherits from _local_cube on along with _cube_asset.

Note

If you cannot see _cube_asset in usdview, select Show > Abstract Class, above the tree view.

Let’s open our example file.

  1. In the Visual Studio Code terminal, run the code below to open the file in usdview:

Windows:

.\scripts\usdview.bat .\composition_arcs\inherits\refinement_example\global_refinement.usd

Linux:

./scripts/usdview.sh ./composition_arcs/inherits/refinement_example/global_refinement.usd

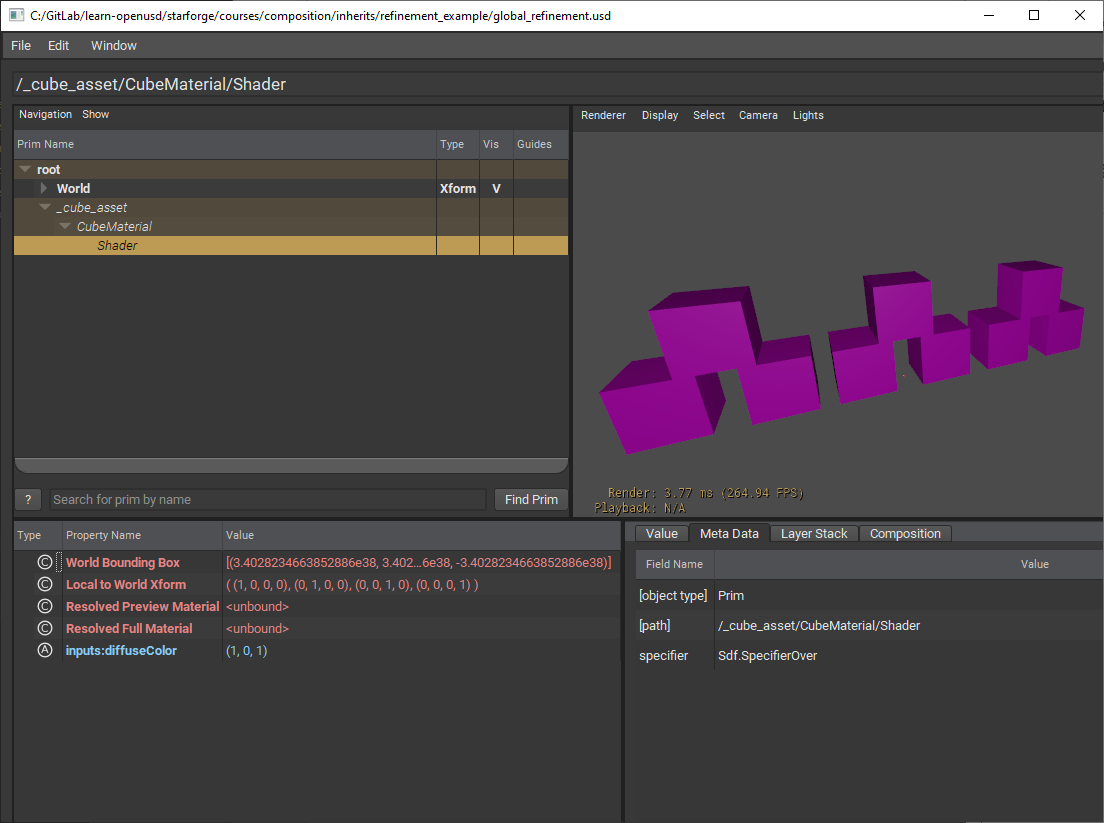

Global refinement takes advantage of inherit arc targets where the target path never changes. A path outside of encapsulation never gets re-pathed on reference. So for our example in global_refinement.usd, we override /_cube_asset and change the color to magenta, meaning all the cubes inheriting from /_cube_asset will all turn magenta.

Local refinement is when the inherit arc targets an encapsulated prim. That means the target path gets repathed on reference. We can see this in local_refinement.usd.

  1. In the Visual Studio Code terminal, run the code below to open the file in usdview:

Windows:

.\scripts\usdview.bat .\composition_arcs\inherits\refinement_example\local_refinement.usd

Linux:

./scripts/usdview.sh ./composition_arcs/inherits/refinement_example/local_refinement.usd

If we modify the /World/cube_pyramid_01/_local_cube to have a cyan color, it will only affect cubes that inherit from /World/cube_pyramid_01/_local_cube that are contained in cube_pyramid_01. The other pyramids will remain unaffected.
