Deformable Bodies#

Deformable bodies simulate objects that bend, stretch, and squash. ovphysx supports two kinds:

  • Volume deformables — solid objects simulated on a tetrahedral mesh.

  • Surface deformables — thin, cloth-like objects simulated on a triangle mesh. (The old particle-cloth feature was removed; cloth is now a surface deformable.)

Deformables are defined across two schemas: the Omni Physics Deformable Schema (OmniPhysics*, staged for inclusion in UsdPhysics) and the PhysX Schema (Physx* extensions). Both ship as codeless schemas — refer to Physics Schemas. This page shows the raw-USD (ApplyAPI) authoring route.

Deformables require GPU simulation. Enable GPU dynamics on the physics scene (physxScene:enableGPUDynamics = true, physxScene:broadphaseType = "GPU"); refer to Physics Scene. CPU simulation of deformables is not supported.

Single-Mesh Volume Deformable#

A volume deformable needs a UsdGeom.TetMesh simulation mesh. Apply OmniPhysicsDeformableBodyAPI, OmniPhysicsVolumeDeformableSimAPI, and UsdPhysics.CollisionAPI; PhysX-specific attributes go on PhysxBaseDeformableBodyAPI and PhysxCollisionAPI.

from pxr import Usd, UsdGeom, UsdPhysics, Vt, Sdf

# A minimal tetrahedral cube used as the simulation mesh.
tet = UsdGeom.TetMesh.Define(stage, "/World/TetMesh")
tet.GetPointsAttr().Set(Vt.Vec3fArray([
    (0, 0, 0), (1, 0, 0), (1, 1, 0), (0, 1, 0),
    (0, 0, 1), (1, 0, 1), (1, 1, 1), (0, 1, 1),
]))
tet.GetTetVertexIndicesAttr().Set(Vt.Vec4iArray([
    (0, 1, 3, 4), (1, 2, 3, 6), (1, 4, 5, 6), (3, 4, 6, 7), (1, 3, 4, 6),
]))
tet.GetSurfaceFaceVertexIndicesAttr().Set(UsdGeom.TetMesh.ComputeSurfaceFaces(tet))
prim = tet.GetPrim()

# Deformable body + mass.
prim.ApplyAPI("OmniPhysicsDeformableBodyAPI")
prim.GetAttribute("omniphysics:mass").Set(30.0)

# Volume simulation API + rest shape (topology must match the sim mesh).
prim.ApplyAPI("OmniPhysicsVolumeDeformableSimAPI")
prim.GetAttribute("omniphysics:restShapePoints").Set(tet.GetPointsAttr().Get())
prim.GetAttribute("omniphysics:restTetVtxIndices").Set(tet.GetTetVertexIndicesAttr().Get())

# The single collider is mandatory for a single-mesh deformable.
UsdPhysics.CollisionAPI.Apply(prim)

# Optional PhysX-specific attributes.
prim.ApplyAPI("PhysxBaseDeformableBodyAPI")
prim.GetAttribute("physxDeformableBody:disableGravity").Set(True)
prim.ApplyAPI("PhysxCollisionAPI")
prim.CreateAttribute("physxCollision:contactOffset", Sdf.ValueTypeNames.Float).Set(0.02)
prim.CreateAttribute("physxCollision:restOffset", Sdf.ValueTypeNames.Float).Set(0.01)

Single-Mesh Surface Deformable#

A surface deformable needs a triangle UsdGeom.Mesh. Apply OmniPhysicsDeformableBodyAPI, OmniPhysicsSurfaceDeformableSimAPI, and UsdPhysics.CollisionAPI (the simulation mesh is used for collision — a separate collision mesh is not supported for surface deformables). PhysX-specific attributes go on PhysxSurfaceDeformableBodyAPI.

prim.ApplyAPI("OmniPhysicsDeformableBodyAPI")
prim.GetAttribute("omniphysics:mass").Set(0.5)

prim.ApplyAPI("OmniPhysicsSurfaceDeformableSimAPI")
prim.GetAttribute("omniphysics:restShapePoints").Set(tri_mesh.GetPointsAttr().Get())
# omniphysics:restTriVtxIndices takes Vec3i triangle indices matching the sim mesh.

UsdPhysics.CollisionAPI.Apply(prim)

prim.ApplyAPI("PhysxSurfaceDeformableBodyAPI")
prim.GetAttribute("physxDeformableBody:disableGravity").Set(True)
prim.GetAttribute("physxDeformableBody:selfCollision").Set(True)

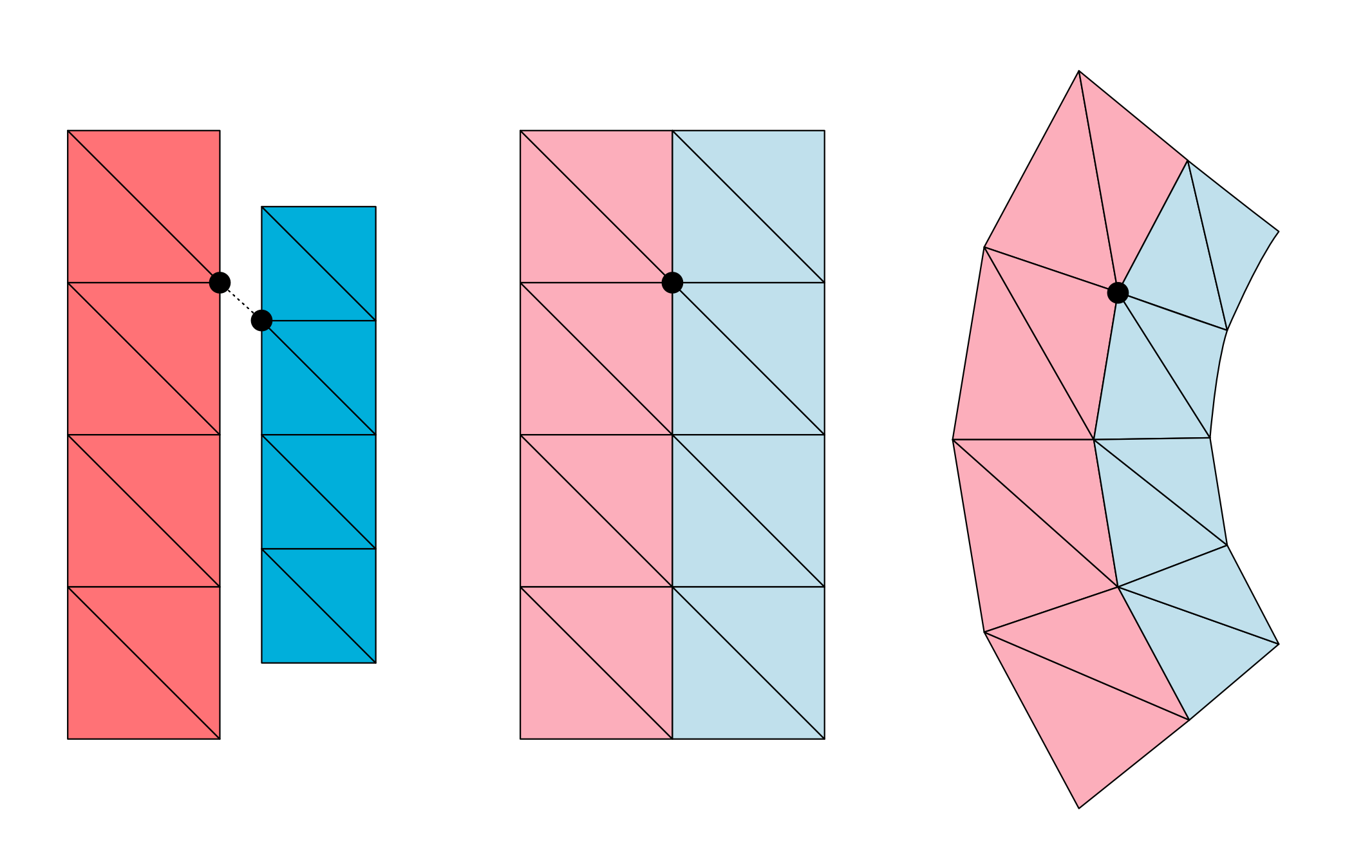

A deformable tetrahedral rest shape

Hierarchies#

For more control, author a hierarchy: a root Xform carrying OmniPhysicsDeformableBodyAPI, a simulation mesh with the sim API, optionally a separate collision TetMesh (volume only), and any number of render PointBased meshes. Register non-simulation meshes to the sim mesh with a bind pose (OmniPhysicsDeformablePoseAPI, instance name e.g. custom, purpose bindPose). Mark the simulation mesh purpose guide so it is not rendered.

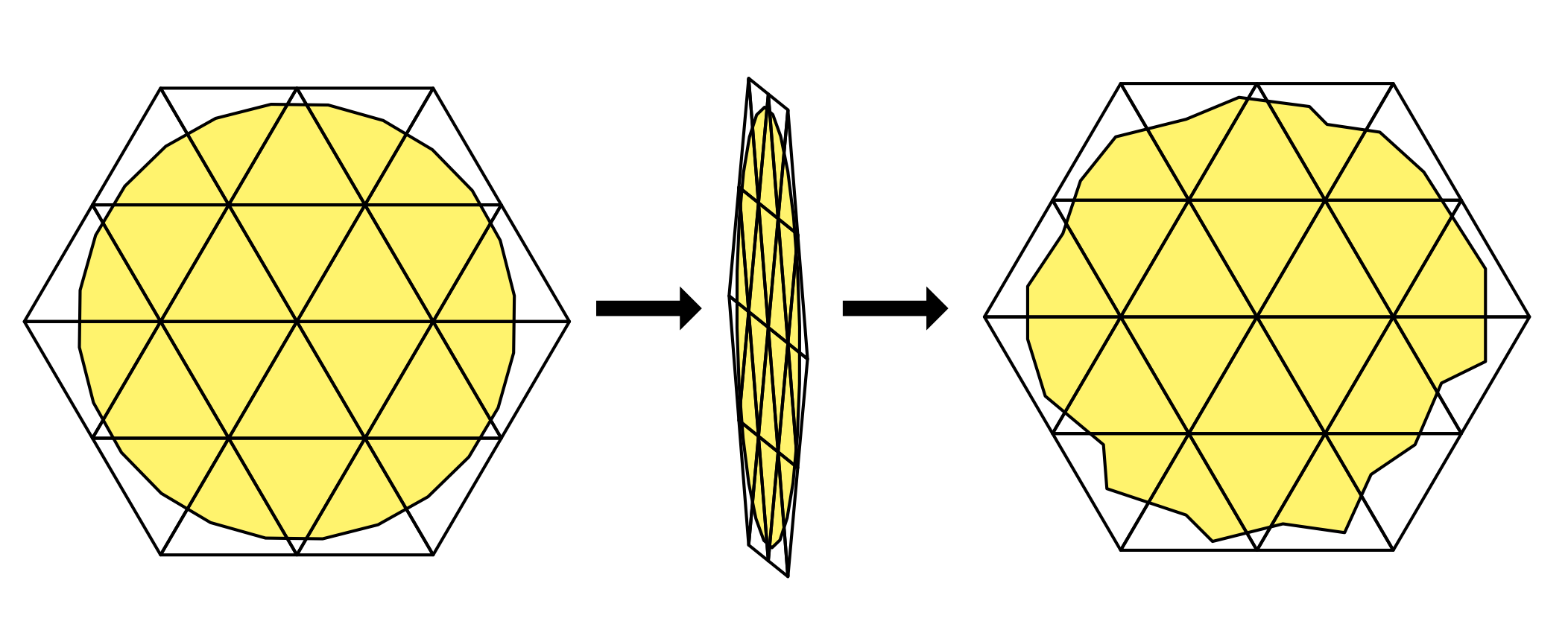

A deformable render mesh embedded in a simulation mesh

Auto Mesh Generation#

Tetrahedral (and simplified triangle) meshes are often not available and must be generated from a graphics mesh. The PhysxAutoDeformableBodyAPI schema (with PhysxAutoDeformableHexahedralMeshAPI for hex-structured volume meshes) drives this generation from a source mesh; ovphysx produces the required simulation and collision mesh data during cooking when the stage is attached. Author the auto-deformable schema attributes on the root prim and point them at the source mesh.

Materials#

Deformable materials stack API schemas on a UsdShade.Material prim:

  • OmniPhysicsBaseMaterialAPI — friction and density (shared with rigid bodies).

  • OmniPhysicsDeformableMaterialAPI — Young’s modulus and Poisson’s ratio (volume and surface).

  • OmniPhysicsSurfaceDeformableMaterialAPI — surface-only parameters (thickness, bend stiffness).

  • PhysxDeformableMaterialAPI / PhysxSurfaceDeformableMaterialAPI — PhysX extras (elasticity damping, bend damping).

Bind the material with UsdShade.MaterialBindingAPI using the "physics" purpose, exactly as for rigid-body materials. Bind to the root deformable prim (binding recurses to the simulation mesh).

from pxr import UsdShade

mat = UsdShade.Material.Define(stage, "/World/DeformableMaterial")
mp = mat.GetPrim()
mp.ApplyAPI("OmniPhysicsBaseMaterialAPI")
mp.GetAttribute("omniphysics:dynamicFriction").Set(10.0)
mp.GetAttribute("omniphysics:density").Set(1000.0)
mp.ApplyAPI("OmniPhysicsDeformableMaterialAPI")
mp.GetAttribute("omniphysics:youngsModulus").Set(1e5)
mp.GetAttribute("omniphysics:poissonsRatio").Set(0.45)

binding = UsdShade.MaterialBindingAPI.Apply(deformable_root_prim)
binding.Bind(mat, UsdShade.Tokens.weakerThanDescendants, "physics")

Deformable material properties (dynamic friction, Young’s modulus, Poisson’s ratio, elasticity damping, and — for surface — bending stiffness/thickness/ damping) can also be read and written in bulk at runtime through the deformable material tensor types — refer to Tensor Bindings.

Attachments and Collision Filters#

Attach a deformable to another deformable, a rigid body, a collider, or any Xformable by defining low-level attachment prims. For example, a vertex-vertex attachment couples specific simulation-mesh vertices of two deformables:

attachment = stage.DefinePrim("/World/VtxVtxAttachment", "OmniPhysicsVtxVtxAttachment")
attachment.GetRelationship("omniphysics:src0").SetTargets(["/World/DeformableBody0"])
attachment.GetRelationship("omniphysics:src1").SetTargets(["/World/DeformableBody1"])
attachment.GetAttribute("omniphysics:vtxIndicesSrc0").Set([dim - 1, dim * dim - 1])
attachment.GetAttribute("omniphysics:vtxIndicesSrc1").Set([0, dim * dim - dim])

A vertex-Xform attachment (OmniPhysicsVtxXformAttachment) pins vertices to a coordinate frame. PhysxAutoDeformableAttachmentAPI generates attachments automatically from geometric overlap between a deformable and a collider/xform. Use ElementCollisionFilter prims to suppress unwanted collisions at attachment sites; where element-level filtering is unsupported (for example between two surface deformables), fall back to standard prim-level group or pair filtering.

Limitations#

The current Omni PhysX implementation is more restricted than the schema allows:

  • Exactly one collider per deformable body. For surface deformables the simulation mesh must be the collider (no separate collision mesh).

  • The rest-shape topology must be identical to the simulation-mesh topology (matching indices and point counts); the rest shape cannot be manipulated at simulation time.

  • Kinematic animation of simulation-mesh points is supported for volume deformables only.

  • Static friction is not supported — use a sufficiently high dynamic friction. Friction combine modes apply only to rigid-deformable contacts, not deformable-deformable.

  • surfaceStretchStiffness / surfaceShearStiffness are unsupported; surfaceBendStiffness is the only bend-resistance control.

  • Multi-material binding (through UsdSubset) is unsupported; attachment stiffness/ damping and tri-tri attachments are unsupported.

Reading Deformable State#

At runtime, volume and surface deformables expose their nodal (per-vertex) state through tensor bindings:

  • Volume: DEFORMABLE_SIM_NODAL_POSITION / ..._VELOCITY, DEFORMABLE_SIM_KINEMATIC_TARGET, read-only rest positions and element indices.

  • Surface: SURFACE_DEFORMABLE_SIM_POSITION / ..._VELOCITY, read-only rest positions and triangle connectivity.

See the Tensor Bindings reference. Simulated mesh points and velocities are also available through the ovstage output read API (object types DEFORMABLE_VOLUME and DEFORMABLE_SURFACE, attributes points / velocities).
