Particles#

ovphysx can simulate GPU-accelerated position-based-dynamics (PBD) particles for fluids and granular media (sand, etc.). Particle sets interact with rigid bodies, articulations, and deformables.

What ovphysx supports for particles. You author the particle system and particle sets in USD, ovphysx simulates them, and you read the resulting particle positions and velocities back through the ovstage output read API (object type PARTICLE_SET, attributes points / velocities). There is no particle tensor-control API, and fluid render post-processing (isosurface, anisotropy, smoothing) and the Kit particle-sampler UI are out of scope for ovphysx.

Particles require GPU simulation. Enable GPU dynamics on the physics scene (physxScene:enableGPUDynamics = true, physxScene:broadphaseType = "GPU") — refer to Physics Scene. CPU simulation of particles is not supported. The particle schema is not finalized and may change.

Simulation Components#

A particle simulation has three parts:

  1. Particle sets — groups of particles backed by a UsdGeom.Points or UsdGeom.PointInstancer prim with PhysxParticleSetAPI applied.

  2. A particle system (PhysxParticleSystem prim) — holds simulation parameters shared by all its particle sets. Particle sets reference their system through the physxParticle:particleSystem relationship.

  3. A PBD particle material — bound to the particle system, provides additional shared parameters (and density; see below).

Multiple particle systems per stage are supported, but particles in different systems do not collide with each other.

Authoring a Particle Set#

def PhysxParticleSystem "particleSystem"
{
    float particleContactOffset = 0.05
    bool particleSystemEnabled = 1
    rel simulationOwner = </World/physicsScene>
}

def Points "particles" (
    prepend apiSchemas = ["PhysxParticleSetAPI"]
)
{
    point3f[] points = [(0, 0, 1), (0, 0, 2), (0, 0, 3)]
    float[] widths = [0.1, 0.1, 0.1]
    bool physxParticle:fluid = 0
    rel physxParticle:particleSystem = </World/particleSystem>
}

Set physxParticle:fluid = 1 for a fluid set, or 0 for solid/granular. You can populate the point positions programmatically (a grid, a sampled volume, etc.) and set them on the Points prim’s points attribute.

Offsets#

The particle system’s offsets control interaction distances.

Particle-particle. Solid particle size is governed by the Solid Rest Offset: two solid particles touch when their centers are 2 * solidRestOffset apart. The Fluid Rest Offset is not a radius; combined with particle mass it sets the fluid’s target (rest) density. Two particles are neighbors (and generate solver constraints) when within 2 * particleContactOffset; the neighborhood size is capped by maxNeighborhood (default 96).

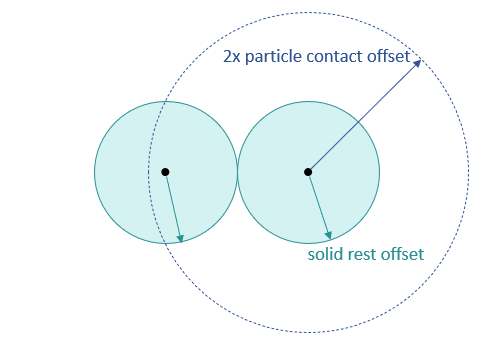

Solid particle contact offsets

Particle-collider. Contacts are generated when a particle center is closer to a collider than the sum of the particle system’s and the collider’s Contact Offset, and contact occurs at the sum of their Rest Offsets (the solid rest offset does not apply here).

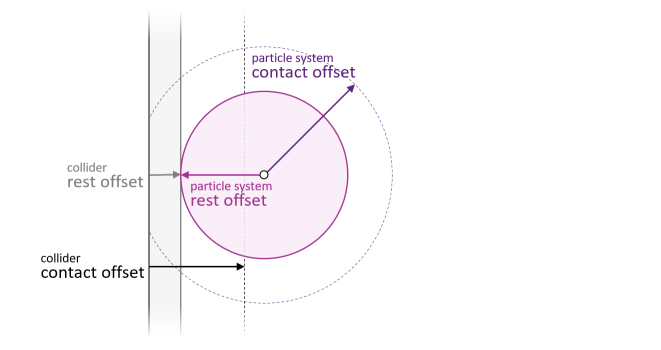

Particle-to-collider offsets

Autocomputation. By default the offsets are derived from particleContactOffset (default 0.05 m, scaled to scene units), so adjust it to change particle resolution:

  • Contact Offset = 1.0 * particleContactOffset

  • Rest Offset = 0.99 * particleContactOffset

  • Fluid Rest Offset = 0.99 * 0.6 * particleContactOffset

  • Solid Rest Offset = 0.99 * particleContactOffset

Mass and Density#

Particle mass is resolved with this precedence (lowest to highest):

default 1000 kg/m^3  <  material density (scene)  <  material density (particle system)  <  mass-component density  <  mass-component mass

Bind a PBD particle material to the physics scene or the particle system to set density, or apply a UsdPhysics.MassAPI (mass component) to a particle set to override. When mass is set, each particle’s mass is mass / numParticles. When density is set, per-particle mass is derived from the density and the rest-offset volume (solid or fluid rest offset, as appropriate).

Reading Particle State#

ovphysx does not write particle results back to the stage. Read simulated particle positions and velocities through the ovstage output read API using the PARTICLE_SET object type (points, velocities). Point-instancer-backed and points-backed sets are both read this way.
