Lens Calibration#

Overview#

Lens-distortion API schemas let a camera reproduce measured camera intrinsics and distortion. ovrtx supports OpenCV pinhole and fisheye calibration, lookup-table-based generalized projection, and omni-directional stereo.

When you apply one of these schemas, its calibration parameters drive projection instead of focalLength and the aperture attributes. Depth of field still uses focalLength, focusDistance, and fStop.

Robot lineup rendered through OpenCV pinhole, OpenCV fisheye, and omni-directional stereo cameras

Three camera views of the same scene showing three different lens calibration schemata. Clockwise from top-left: OmniLensDistortionOpenCvPinholeAPI, OmniLensDistortionOpenCvFisheyeAPI, OmniLensDistortionOmniDirectionalStereoAPI#

Creating A Calibrated Camera#

Apply one lens-distortion API schema to a Camera prim. The following examples create the same OpenCV pinhole calibration.

def Camera "Camera" (
    prepend apiSchemas = ["OmniLensDistortionOpenCvPinholeAPI"]
)
{
    token omni:lensdistortion:model = "opencvPinhole"
    float omni:lensdistortion:opencvPinhole:cx = 1024
    float omni:lensdistortion:opencvPinhole:cy = 512
    float omni:lensdistortion:opencvPinhole:fx = 900
    float omni:lensdistortion:opencvPinhole:fy = 800
    int2 omni:lensdistortion:opencvPinhole:imageSize = (2048, 1024)
    float omni:lensdistortion:opencvPinhole:k1 = 0
    float omni:lensdistortion:opencvPinhole:k2 = 0
    float omni:lensdistortion:opencvPinhole:p1 = 0
    float omni:lensdistortion:opencvPinhole:p2 = 0
}

prim = UsdGeom.Camera.Define(stage, "/Camera").GetPrim()
prim.ApplyAPI("OmniLensDistortionOpenCvPinholeAPI")
prim.GetAttribute("omni:lensdistortion:model").Set("opencvPinhole")
prim.GetAttribute("omni:lensdistortion:opencvPinhole:imageSize").Set(Gf.Vec2i(2048, 1024))
for name, value in {
    "fx": 900.0,
    "fy": 800.0,
    "cx": 1024.0,
    "cy": 512.0,
    "k1": 0.0,
    "k2": 0.0,
    "p1": 0.0,
    "p2": 0.0,
}.items():
    prim.GetAttribute(f"omni:lensdistortion:opencvPinhole:{name}").Set(value)

See Python: Camera Lens Calibration for a runnable example.

Available Schemas#

Applied API schema

Purpose

OmniLensDistortionOpenCvPinholeAPI

Uses OpenCV pinhole projection with radial, tangential, and thin-prism coefficients.

OmniLensDistortionOpenCvFisheyeAPI

Uses OpenCV fisheye projection with four radial coefficients.

OmniLensDistortionLutAPI

Defines projection with ray-direction and ray-position textures.

OmniLensDistortionOmniDirectionalStereoAPI

Renders one eye of a 360-degree stereo projection.

OmniLensDistortionFthetaAPI

Preserves calibration data that uses the NVIDIA f-theta model.

OmniLensDistortionKannalaBrandtK3API

Preserves calibration data that uses the Kannala-Brandt K3 model.

OmniLensDistortionRadTanThinPrismAPI

Preserves calibration data that uses the radial-tangent thin-prism model.

For new calibrated cameras, prefer the OpenCV, LUT, or omni-directional stereo schemas. Use the compatibility schemas when preserving existing calibration data.

OpenCV Pinhole#

USD declaration

Description

token omni:lensdistortion:model = "opencvPinhole"

Selects OpenCV pinhole projection.

int2 omni:lensdistortion:opencvPinhole:imageSize = (2048, 1024)

Calibration resolution in pixels.

float omni:lensdistortion:opencvPinhole:fx = 900

Horizontal focal length in calibration pixels.

float omni:lensdistortion:opencvPinhole:fy = 800

Vertical focal length in calibration pixels.

float omni:lensdistortion:opencvPinhole:cx = 1024

Horizontal principal point in calibration pixels.

float omni:lensdistortion:opencvPinhole:cy = 512

Vertical principal point in calibration pixels.

float omni:lensdistortion:opencvPinhole:k1 = 0

Radial coefficient.

float omni:lensdistortion:opencvPinhole:k2 = 0

Radial coefficient.

float omni:lensdistortion:opencvPinhole:k3 = 0

Radial coefficient.

float omni:lensdistortion:opencvPinhole:k4 = 0

Radial coefficient.

float omni:lensdistortion:opencvPinhole:k5 = 0

Radial coefficient.

float omni:lensdistortion:opencvPinhole:k6 = 0

Radial coefficient.

float omni:lensdistortion:opencvPinhole:p1 = 0

Tangential coefficient.

float omni:lensdistortion:opencvPinhole:p2 = 0

Tangential coefficient.

float omni:lensdistortion:opencvPinhole:s1 = 0

Thin-prism coefficient.

float omni:lensdistortion:opencvPinhole:s2 = 0

Thin-prism coefficient.

float omni:lensdistortion:opencvPinhole:s3 = 0

Thin-prism coefficient.

float omni:lensdistortion:opencvPinhole:s4 = 0

Thin-prism coefficient.

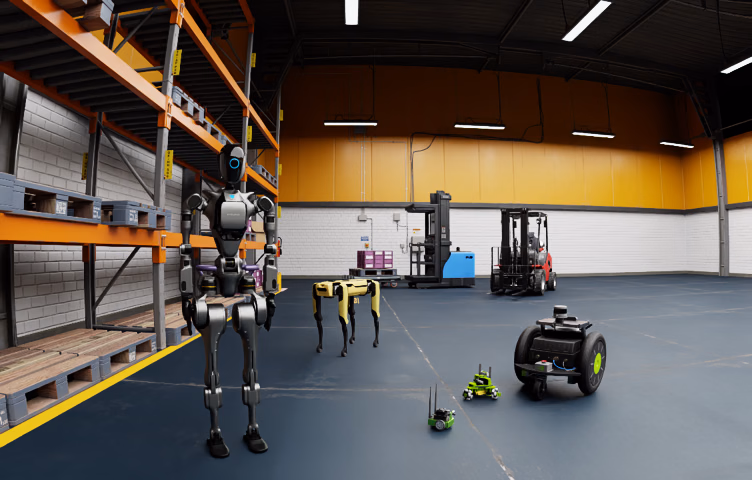

Robot lineup rendered through an OpenCV pinhole camera

OpenCV pinhole projection with radial and tangential distortion.#

OpenCV Fisheye#

USD declaration

Description

token omni:lensdistortion:model = "opencvFisheye"

Selects OpenCV fisheye projection.

int2 omni:lensdistortion:opencvFisheye:imageSize = (2048, 1024)

Calibration resolution in pixels.

float omni:lensdistortion:opencvFisheye:fx = 900

Horizontal focal length in calibration pixels.

float omni:lensdistortion:opencvFisheye:fy = 800

Vertical focal length in calibration pixels.

float omni:lensdistortion:opencvFisheye:cx = 1024

Horizontal principal point in calibration pixels.

float omni:lensdistortion:opencvFisheye:cy = 512

Vertical principal point in calibration pixels.

float omni:lensdistortion:opencvFisheye:k1 = 0.00245

Radial coefficient.

float omni:lensdistortion:opencvFisheye:k2 = 0

Radial coefficient.

float omni:lensdistortion:opencvFisheye:k3 = 0

Radial coefficient.

float omni:lensdistortion:opencvFisheye:k4 = 0

Radial coefficient.

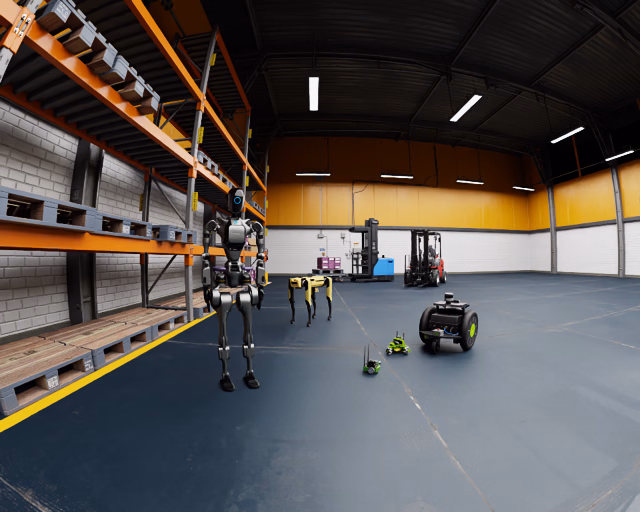

Robot lineup rendered through an OpenCV fisheye camera

OpenCV fisheye projection using four equidistant distortion coefficients.#

imageSize makes an OpenCV calibration independent of output resolution. When the RenderProduct resolution differs, ovrtx scales fx, fy, cx, and cy to the output resolution.

Generalized Projection#

OmniLensDistortionLutAPI defines non-parametric projection with two floating-point textures.

USD declaration

Description

token omni:lensdistortion:model = "lut"

Selects lookup-table projection.

float omni:lensdistortion:lut:nominalWidth = 1936

Calibrated sensor width.

float omni:lensdistortion:lut:nominalHeight = 1216

Calibrated sensor height.

float2 omni:lensdistortion:lut:opticalCenter = (970.94244, 600.3748)

Optical center in calibrated sensor coordinates.

asset omni:lensdistortion:lut:rayEnterDirectionTexture = @@

RGB image whose values contain normalized XYZ ray directions in camera space.

asset omni:lensdistortion:lut:rayExitPositionTexture = @@

RGB image whose RG channels contain normalized screen-space ray origins.

Warning

Low-resolution lookup textures can produce artifacts at larger output resolutions. Supported file formats, filtering, and failure behavior still need a portable public runtime test. The example on this page validates the OpenCV models, not LUT projection.

Omni-Directional Stereo#

OmniLensDistortionOmniDirectionalStereoAPI configures one eye of a 360-degree stereo camera. Use separate left- and right-eye cameras.

USD declaration

Description

token omni:lensdistortion:model = "omniDirectionalStereo"

Selects omni-directional stereo projection.

bool omni:lensdistortion:omniDirectionalStereo:isLeftEye = false

Selects the left eye when true and the right eye when false.

float omni:lensdistortion:omniDirectionalStereo:interpupillaryDistance = 0.064

Eye separation in meters.

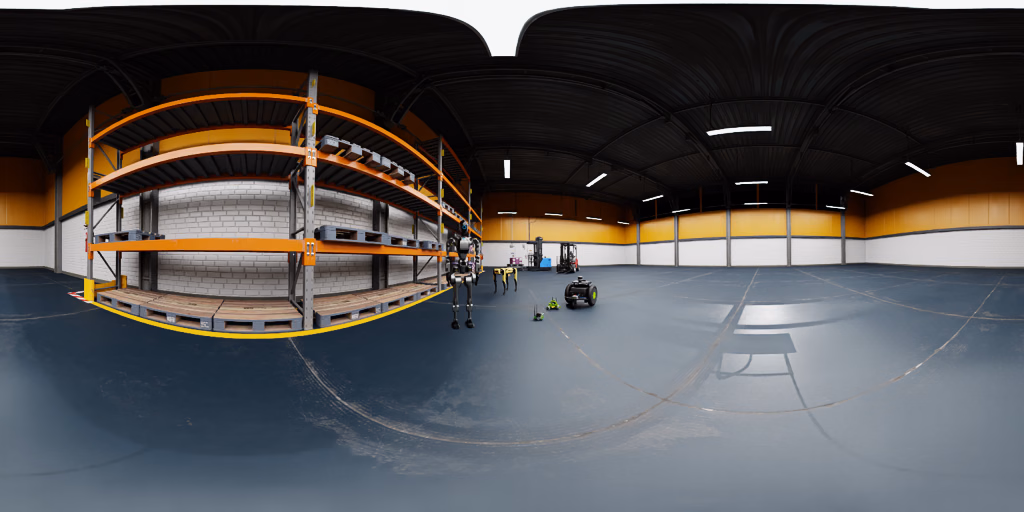

Robot lineup rendered as an omni-directional stereo panorama

A 1024 by 512 single-eye omni-directional stereo panorama.#
